LF 3400 / LF 3800

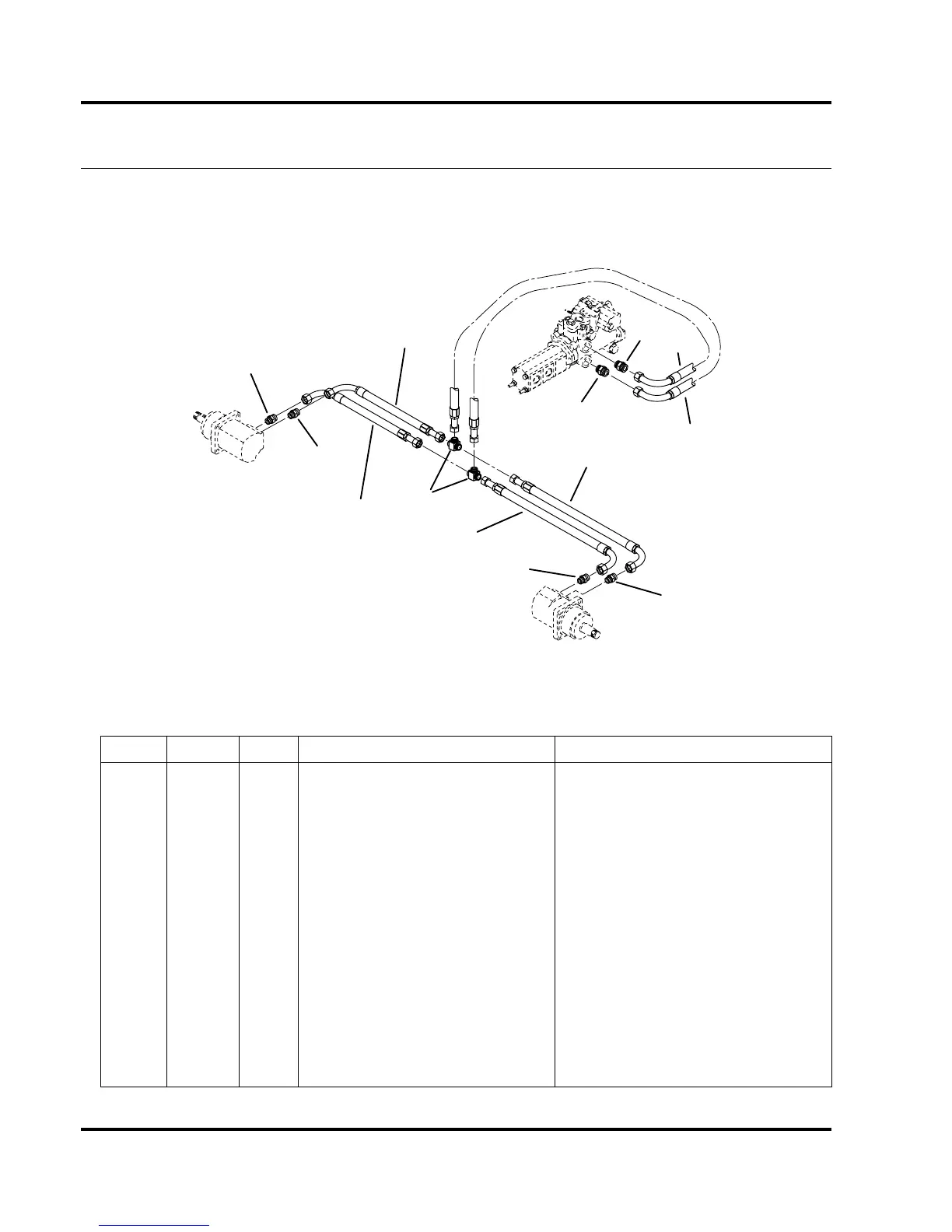

17.1 2WD Traction Hydraulics
Serial No. 67915-1601 and Up
Serial No. 67868-1601 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
1003462 1 Hose, Pump to Upper Traction Tee
2 339994 4 Adaptor, Straight
3 339999 2 Adaptor, Straight
4 1003463 1 Hose, Pump to Lower Traction Tee
5 340339 2 Tee, Union
6 1003442 2 Hose, Motor To Tee
7 1003441 1 Hose, Lower Motor Port To Tee
8 1003930 1 Hose, Upper Motor Port To Tee
