LF 4675 / LF 4677

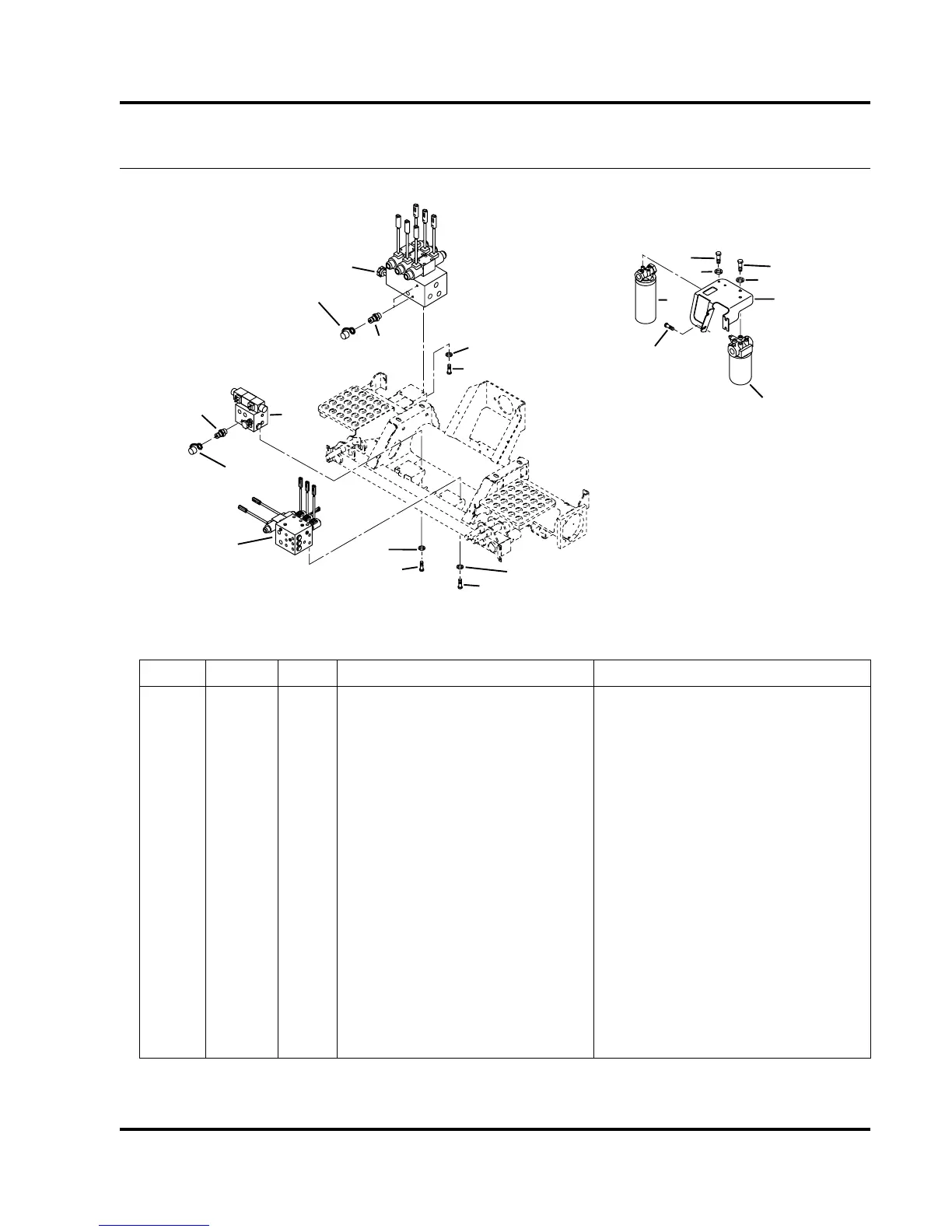

26.1 Hydraulic Valve and Filter Mounting
7 Gang Units (LF 4675 and LF 4677)
Item Part No. Qty. Description Serial Numbers/Notes
1
123015 1 Charge Filter
556417 1 • Head
2811255 1 • Oil Filter Cartridge
556419 1 • Charge Pressure Switch
2 132704 1 Return Filter
557772 1 • Oil Filter Cartridge
3 3007290 1 Bracket, Filter
4 409811 4 Screw, 5/16-18 x 5/8” Thread Cutting
5 446130 2 Lockwasher, 1/4 Heavy
6 446142 4 Lockwasher, 3/8 Heavy
7 400258 8 Screw, 3/8-16 x 3/4” Hex Head
8 400108 2 Screw, 1/4-20 x 3/4” Hex Head
9 1004096 1 Valve, Lift See 52.1
10 365466 3 Fitting, Diagnostic
11 363030 3 Cover, Dust
12 2822502 1 Valve, Front Reel See 48.1
13 1004097 1 Valve, Rear Reel See 56.1
