LF 4675 / LF 4677

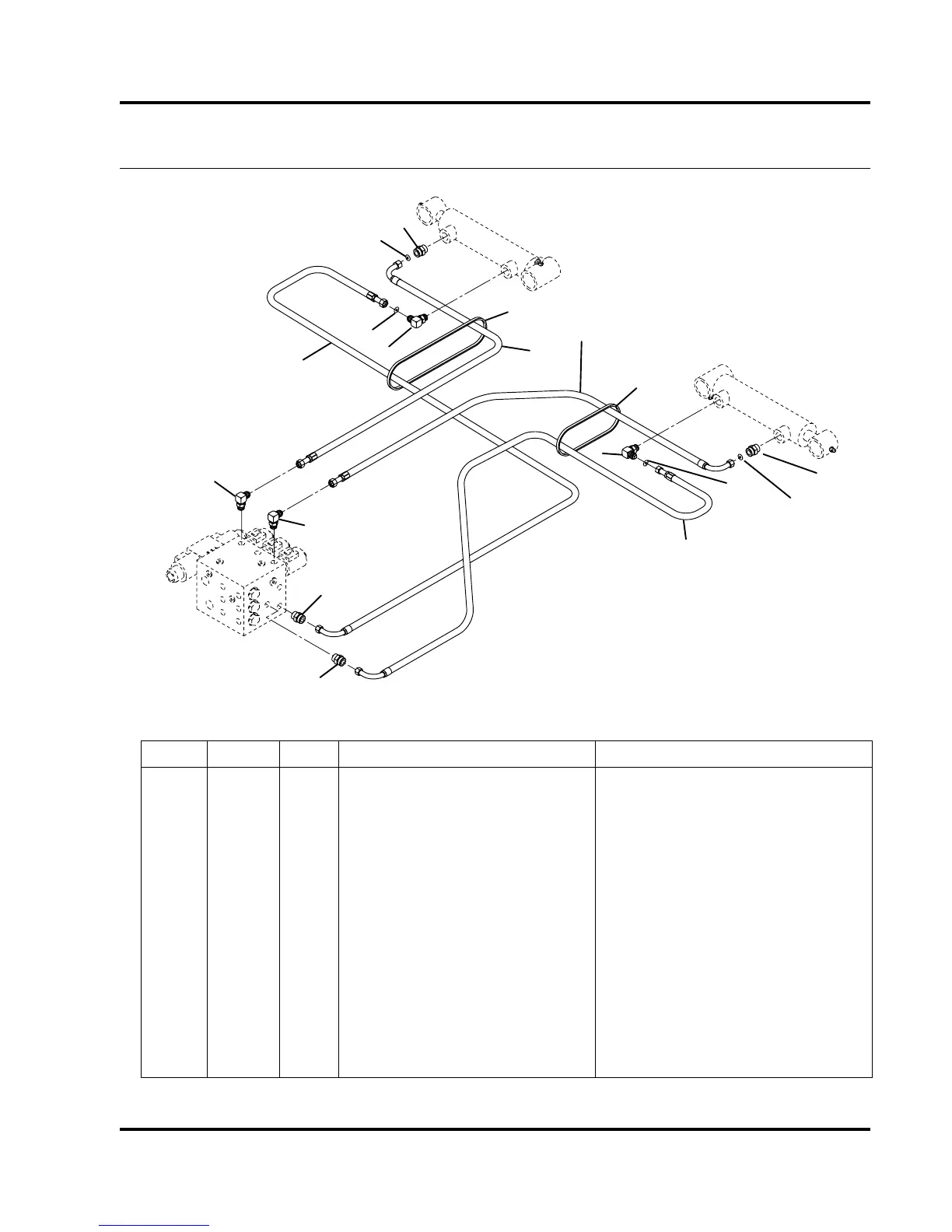

29.1 Wing Lift Hydraulics
7 Gang Units (LF 4675 and LF 4677)
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1004227 1 Hose, Lift Valve to Left Wing Lift Valve Port 6
2 1004228 1 Hose, Left Wing to Lift Valve Lift Valve Port 12
3 1004229 1 Hose, Lift Valve to Right Wing Lift Valve Port 5
4 1004230 1 Hose, Right Wing to Lift Valve Lift Valve Port 7
5 340061 4 Adaptor, 90°
6 339979 4 Adaptor, Straight
7 473142 2 Tie Wrap
8 3000953 4 Disk, 0.040 Orifice
