Jacobsen LF 3400 Service Manual
4
of 1
of 1 rating
Go to English
270 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
104
> Change fr
om previous revision
1
2
3
4
5
8
9
10
G
P
T
5
1
T
6
4
Fr
ont
Rear
2
3
2
2
2
Used with LF 3400 and 3400
T
urbo Models.
6
LF 3400 / LF 3800

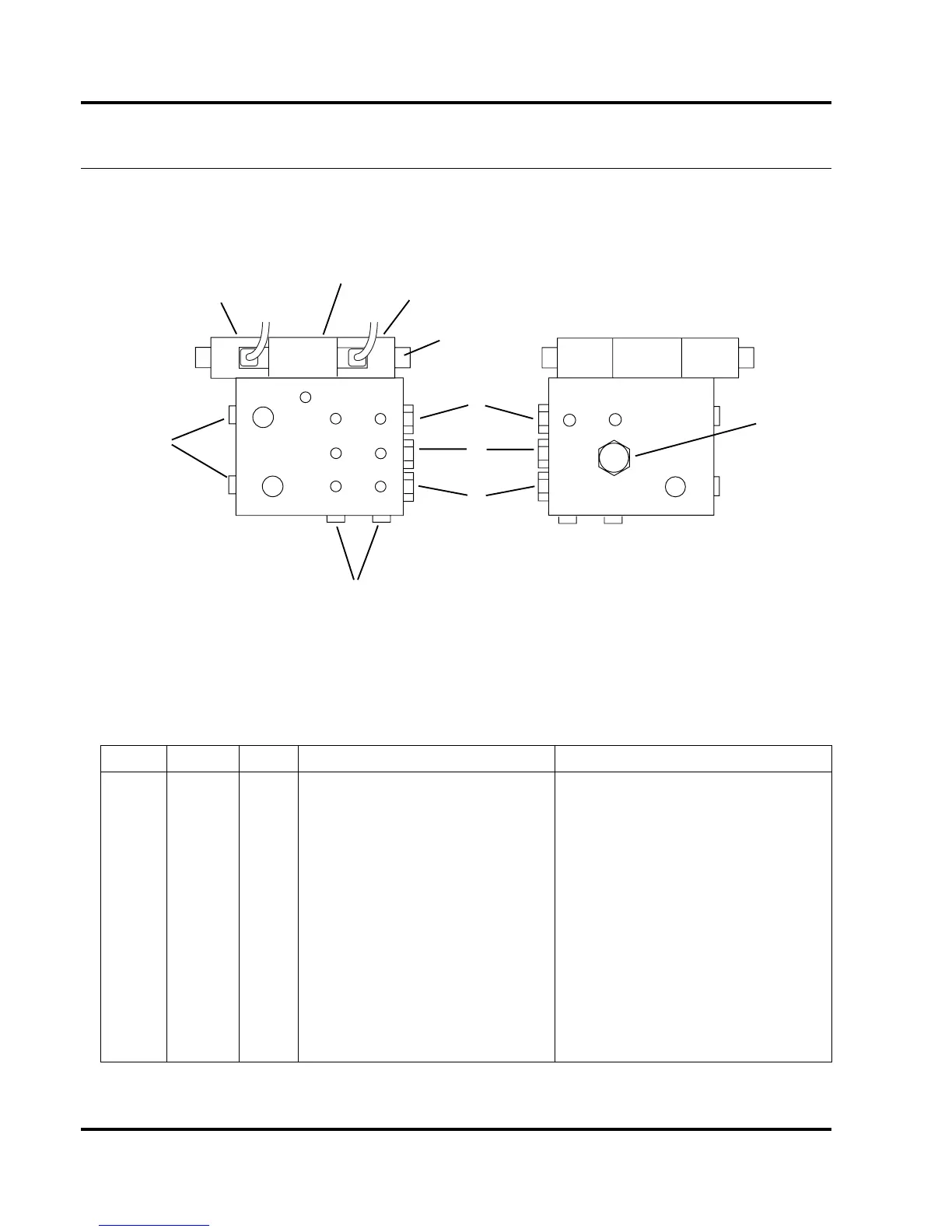

51.1 Lift
V
alve
P
ar
t Number
2822501
Serial No. All
Item
Part No.
Qty
.
Des
cription
Serial
Numbers/Notes
1
5003144
1
Relief V
al
v
e
5003579
1
•
Relief V
alve Seal K
it
2
500
1355
3
Pilot Op
erated Check V
alve
5003578
1
•
Check V
alv
e Sea
l Kit
3
500
3032
1
Soleno
id V
alv
e
339909
4
•
O-Ring
4
281
2374
2
Coil
5
500
2157
4
Plug, P
or
t
6
410
1440
2
Nut, Coil
, with “O”-Ring
245
247
Table of Contents
English
2
Default Chapter
2
Table of Contents
2
How to Use this Manual
3
Service Parts
3
Safety
4
Operating Safety
4
Important Safety Notes
5
Specifications
6
Product Identification
6
V1305-E Engine
6
V1505-E Engine
6
Make
6
Model
6
Displacement...................91.4 In. 3 (1498 CM 3 )
6
Torque
6
Rating
6
Capacity
6
V1505-TE Engine
7
Tractor
7
Weights and Dimensions
7
Cutting Units
8
Accessories
8
Support Literature
8
Adjustments
9
General
9
Bedknife-To-Reel
9
Adjustments 3.1 General
9
Bedknife Adjustment
10
Cutting Height
10
Flash Attach
11
Down Pressure
11
Mow Speed
12
Belt
12
Brakes
12
Neutral Adjustment
13
Forward / Reverse Speed
13
Reel Limit Switch
14
Steering Toe-In
14
Torque Specification
15
Maintenance
16
General
16
Engine
16
Engine Oil
16
Maintenance 4.1 General
16
Air Filter
17
Fuel
17
Fuel System
17
Battery
18
Jump Starting
18
Charging Battery
18
Muffler and Exhaust
19
Hydraulic Hoses
19
Hydraulic Oil
19
Hydraulic Filters
20
Electrical System
20
Hydraulic System
20
Charge Filter
20
Radiator
21
Rollover Protection Structure (ROPS)
21
Tires
21
Wheel Mounting Procedure
22
Care and Cleaning
22
Reel Backlapping
23
Storage
24
Troubleshooting
25
General
25
Troubleshooting 5.1 General
25
Controller Lamps
26
Electrical Circuits
27
Maintenance & Lubrication Charts
28
General
28
Maintenance Chart
28
Lubrication Chart
29
Notes
30
Français
32
Securite
34
Consignes de Sécurité Relatives Au Fonctionnement
34
Consignes de Securite Importantes
35
Specifications
36
Description
36
Moteur V1305-E
36
Moteur V1505-E
36
Moteur V1505-TE
36
Tracteur
37
Poids & Dimensions
37
Unites de Coupe
38
Accessoires
38
Documents
39
Reglages
40
Généralités
40
Contrelame Et Cylindres
40
Réglages de la Contrelame
41
Hauteur de Coupe
42
Flash Attach
43
Pression D'écrasement
44
Vitesse de Tonte
44
Courroie
44
Freins
45
Reglages des Points Morts
45
Vitesse de Marche Avant / Arrière
46
Interrupteurs de Fin de Course des Rouleaux
47
Convergence de la Direction
47
Specifications des Couples de Serrage
48
Maintenance
49
Généralités
49
Moteur
49
Huile Moteur
50
Filtre À Air
50
Carburant
51
Circuit Carburant
51
Batterie
51
Demarrage Par Connexion Volante
52
Charge de la Batterie
52
Silencieux Et Pots D'échappement
52
Flexibles Hydrauliques
53
Huile Hydraulique
53
Filtres a Huile Hydraulique
54
Circuit Electrique
54
Radiateur
55
Protection Au Retournement
55
Pneus
56
Pose des Roues
56
Entretien
56
Meulage
57
Entreposage
58
Depistage des Defauts
59
Généralités
59
Voyants du Controleur
60
Circuits Electriques
61
Tableaux de Maintenance Et de Graissage
62
Généralités
62
Tableau de Maintenance
63
Tableau de Graissage
64
Remarques
65
Dutch
66
Veiligheid
68
Operationele Veiligheid
68
Belangrijke Veiligheidsoverwegingen
69
Specificaties
70
Productidentificatie
70
V1305-E Motor
70
V1505-E Motor
70
V1505-TE Motor
71
Tractor
71
Gewichten en Afmetingen
71
Maaieenheden
72
Accessoires
72
Ondersteunende Literatuur
72
Afstellingen
73
Algemeen
73
Ondermes-Kooimessen
73
Ondermesafstelling
74
Maaihoogte
75
Flash Attach
76
Neerwaartse Druk
77
Maaisnelheid
77
Riem
78
Remmen
78
Neutraalafstelling
79
Voorwaartse/Achterwaartse Snelheid
80
Kooiafslagschakelaar
81
Toespoor Besturing
81
Draaikoppelspecificatie
82
Onderhoud
83
Algemeen
83
Motor
83
Motorolie
84
Luchtfilter
84
Brandstof
85
Brandstofsystem
85
Accu
86
Hulpstartprocedure
86
Acculading
86
Geluiddemper en Uitlaat
87
Hydraulische Slangen
87
Hydrauliekolie
88
Hydraulische Filters
88
Elektrisch Systeem
89
Radiator
90
Rolbeugelsysteem (ROPS)
90
Banden
91
Wielmontageprocedure
91
Verzorging en Schoonmaken
91
Achteruitdraaien Van Kooien
92
Stalling
93
Foutopsporing
94
Algemeen
94
Controllerlampjes
95
Elektrische Circuits
96
Onderhouds- en Smeerschema's
97
Algemeen
97
Onderhoudsschema
98
Smeerschema
99
Deutsch
102
Sicherheit
104
Betriebssicherheit
104
Wichtige Hinweise zur Sicherheit
105
Technische Daten
106
Produktidentifizierung
106
V1305-E Motor
106
V1505-E Motor
107
V1505-TE Motor
107
Traktor
107
Gewichte und Masse
108
Schneidvorrichtungen
108
Zubehör
109
Informationsmaterial
109
Einstellungen
110
Allgemeine Informationen
110
Einstellen von Grundmesser zu Schneidzylinder
110
Einstellen des Grundmessers
111
Schnitthöhe
112
Flash Attach
113
Druckfeder
114
Mähgeschwindigkeit
114
Riemen
115
Bremsen
115
Leerlaufeinstellung
116
Vorwärts-/Rückwärtsgeschwindigkeit
117
Schneidzylindergrenztaster
118
Lenkspur
118
Drehmomentdaten
119
Wartung
120
Allgemeine Informationen
120
Motor
120
Motoröl
121
Luftfilter
121
Kraftstoff
122
Kraftstoffsystem
122
Batterie
123
Mit Starthilfe Anlassen
123
Aufladen der Batterie
123
Geräuschdämpfer und Auspuff
124
Hydraulikschläuche
124
Hydrauliköl
125
Hydraulikfilter
125
Elektrisches System
126
Kühler
127
Überrollschutz
127
Reifen
128
Verfahren zur Radmontage
128
Pflege und Reinigung
129
Rückläppen der Schneidzylinder
130
Lagerung
131
Fehlersuche
132
Allgemeine Informationen
132
Steuergerätlampen
134
Stromkreise
135
Wartungs- und Schmierpläne
136
Allgemeine Informationen
136
Wartungsplan
137
Schmierplan
138
Anmerkungen
139
Italiano
140
Sicurezza
142
Sicurezza del Funzionamento
142
Note Importanti DI Sicurezza
143
Caratteristiche
144
Identificazione del Prodotto
144
Motore V1305-E
144
Motore V1505-E
144
Motore V1505-TE
145
Trattore
145
Dimensioni E Peso
145
Gruppo DI Falciatura
146
Accessori
146
Documentazione a Supporto
146
Regolazioni
147
Dati Generali
147
Lama Fissa a Bobina
147
Regolazione Della Lama Fissa
148
Altezza DI Taglio
148
Flash Attach
149
Molle DI Tenuta
150
Velocità DI Falciatura
150
Cinghia
150
Freni
151
Regolazione del Folle
151
Marce Avanti/Retromarcia
152
Fine Corsa Della Bobina
153
Convergenza Dello Sterzo
153
Specifica Della Coppia
154
Dati Generali
155
Motore
155
Olio del Motore
156
Filtro Dell'aria
156
Carburante
157
Sistema del Carburante
157
Batteria
158
Messa in Moto con Il Collegamento DI Due Batterie
158
Caricamento Della Batteria
158
Silenziatore E Tubo DI Scarico
159
Tubi Idraulici Flessibili
159
Olio Idraulico
160
Filtri Dell'impianto Idraulico
160
Sistema Elettrico
161
Radiatore
162
Gabbia Antiribaltamento (ROPS)
162
Pneumatici
163
Procedimento DI Montaggio Delle Ruote
163
Cura E Pulizia
164
Rotazione Inversa Delle Bobine
165
Conservazione
166
Soluzione Dei Problemi
167
Dati Generali
167
Spie Della Centralina
168
Circuiti Elettrici
169
Tabelle Della Manutenzione Elubrificazione
170
Dati Generali
170
Tabella Della Manutenzione
170
Tabella Della Lubrificazione
171
Decals
174
Hood
176
Seat Pan
178
Instrument Panel
180
Traction Pedal Linkage
184
Brake Pedal Linkage
186
Frame and Front Axle
188
2WD Steering
190
4WD Steering
192
Tilt Steering
194
Radiator and Air Cleaner
196
Engine Assembly and Mounting
198
Engine Exhaust
200
Pump Mounting
201
Fuel and Hydraulic Tanks
202
2WD Traction Hydraulics
204
4WD Traction Hydraulics
205
Charge Pressure and Steering Hydraulics
206
Gear Pump Hydraulics
208
Return Hydraulics
210
Hydraulic Valve & Filter Mounting
212
Hydraulic Valve and Filter Mounting
213
Hydraulic Clamps
214
Front Lift Hydraulics
216
Wing Lift Hydraulics
217
Rear Lift Hydraulics
218
Wing Reel Hydraulics
220
Front Reel Hydraulics
221
Rear Reel Hydraulics
222
Lift Arms
224
Outrigger Lift Arms
226
Wire Harness and Controller Box
228
Five Inch Reel Assembly
230
Seven Inch Reel Assembly
234
Down Pressure Spring
238
Front Roller
239
Rear Roller
240
Brake Assemblies
242
Reel Valve
243
Front Wheel Motor
244
Rear Wheel Motor
245
Lift Valve
246
Reel Motor
248
Steering Valve
250
Rear Reel Valve
252
4WD Valve
253
Electrical Schematic
254
Hydraulic Schematic
258
O-Ring Chart
262
Fluids and Compounds
264
Other manuals for Jacobsen LF 3400
Safety & Operation Manual
54 pages
Dealer's Manual
54 pages
Safety And Operation Manual
36 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Jacobsen LF 3400 and is the answer not in the manual?
Ask a question
Jacobsen LF 3400 Specifications
General
Brand
Jacobsen
Model
LF 3400
Category
Lawn Mower
Language
English
Related product manuals
Jacobsen LF 3407
36 pages
Jacobsen 67945 – LF 3400
144 pages
LF 3400, Kubota V1305-E, 5 Gang, 2WD
142 pages
67945 – LF 3400, Kubota V1305-E, 5 Gang, 2WD
142 pages
Jacobsen LF 3810
20 pages
Jacobsen LF 3800
54 pages
Jacobsen LF 570
60 pages
Jacobsen LF 4677
104 pages
Jacobsen Super LF 1880
36 pages
Jacobsen 67978 – LF 550
62 pages
Jacobsen LF 4677 Turbo 67963
118 pages
Super LF 1880 Fairway 67923
34 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
