Jacobsen LF 3400 Service Manual

MAINTENANCE & LUBRICATION CHARTS 6
GB-29

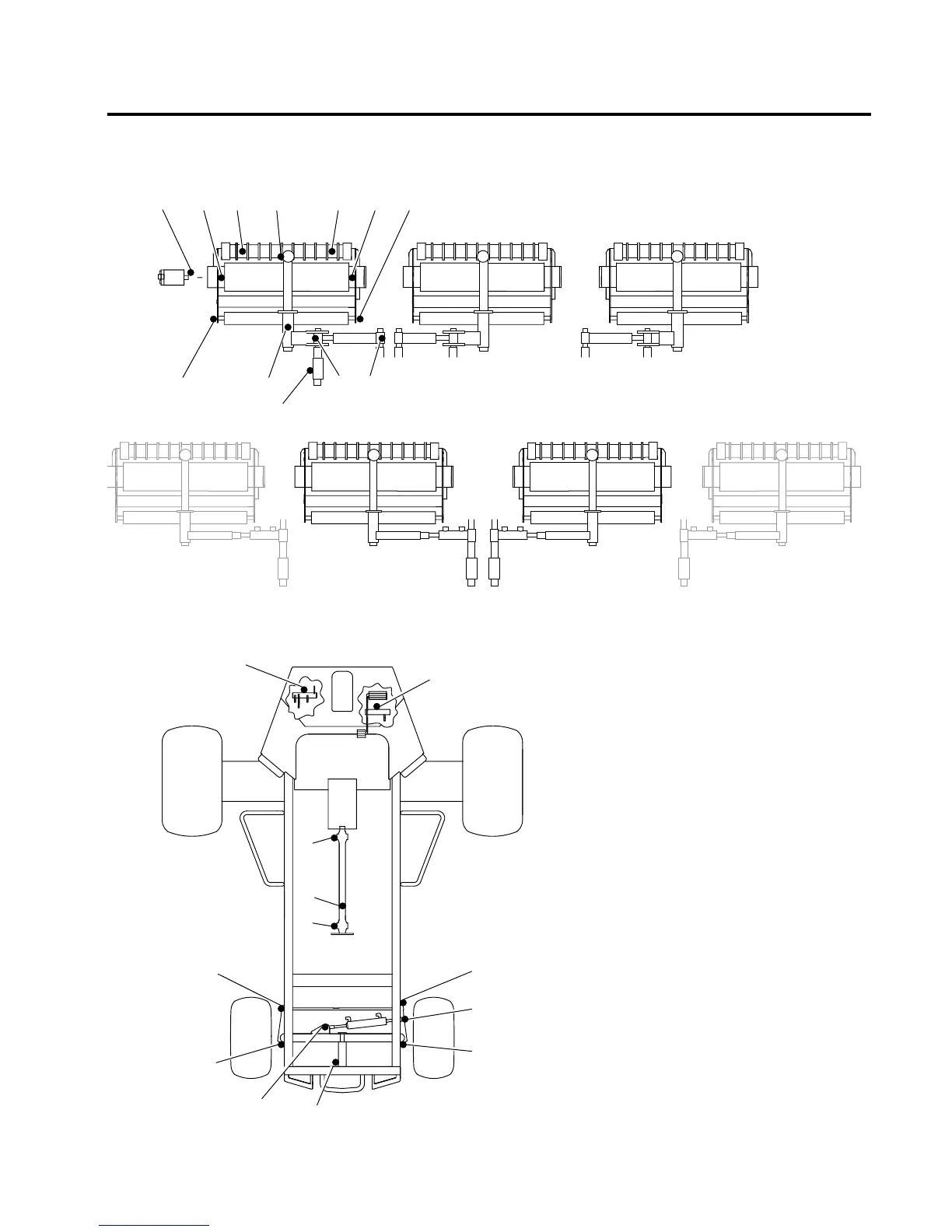

6.3 LUBRICATION CHART______________________________________________________
Grease Fittings
F1
-
50 Hours (Every Week)
1 Swivel Housing
2 Lift Arm
3 Lift Cylinders
4 Lift Arm Pivot
5Brake Pedal Pivot
6 Traction Pedal Pivot
7 Ball Joint
8 Steering Pivot
9 Steering Cylinder
10 Axle Pivot
F2 - 100 Hours
11 Reel Bearing Cavity
12 Front Roller
13 Rear Roller
14 U-joint Driveshaft
F3 - 250 Hours
15 Motor Spline
1
2
33
4
11
11
12
12
13
13
14
14
14
5
6
15
7
7
8
8
9
10
9
Grease points same for all reels
LF023
