Jacobsen LF 3400 Service Manual

78
> Change from previous revision
RA
RB
CA
CB
LBLA
LF 3400 / LF 3800

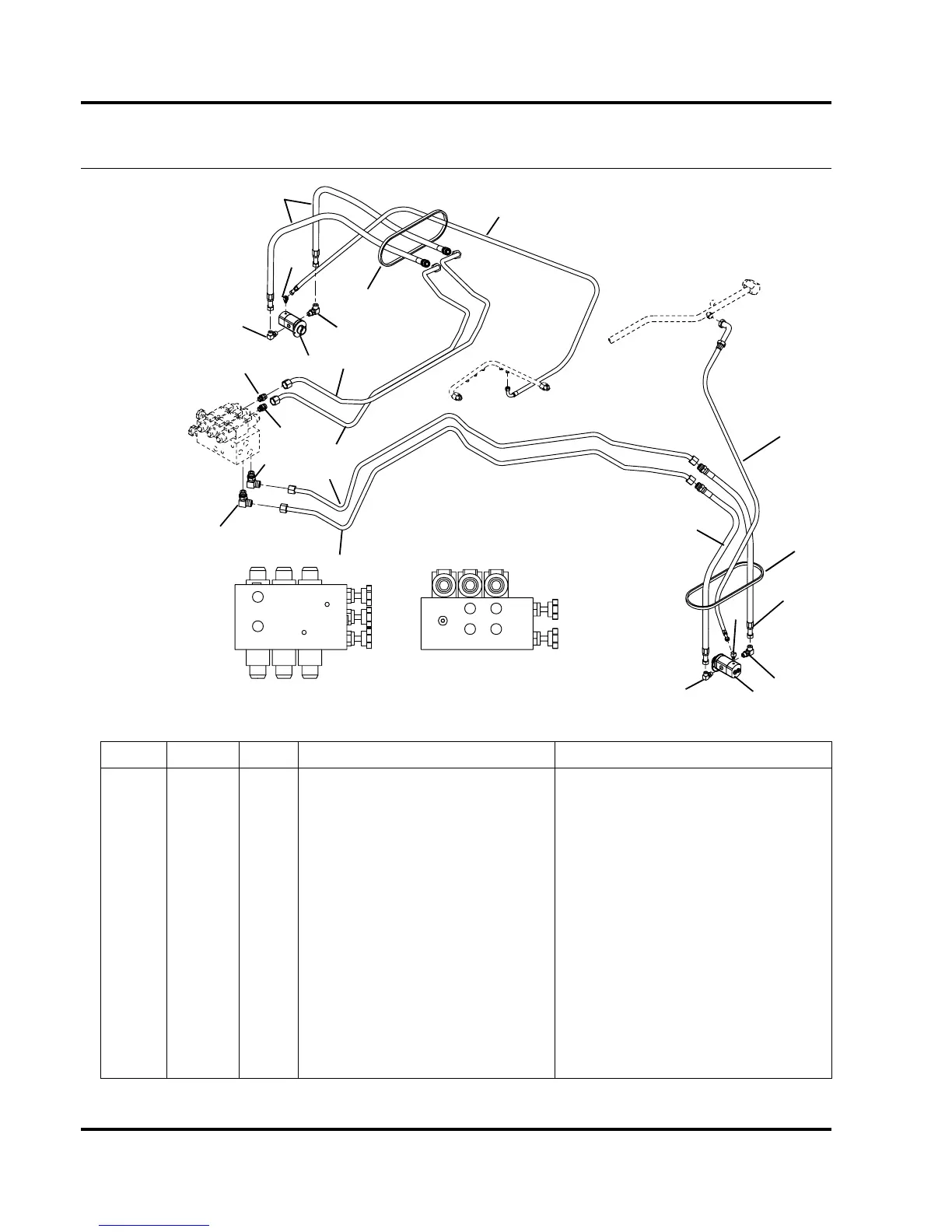

32.1 Wing Reel Hydraulics
7 Gang Units Only (LF 4675 and LF 4677)
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1004430 1 Tube, Left Wing Pressure Rear Reel Valve Port LA
2 1004431 1 Tube, Left Wing Return Rear Reel Valve Port LB
3 1004221 4 Hose, Wing Reel
4 340070 6 Adapter, 90°
5 340022 2 Adapter, 45°
6 1004224 1 Hose, Left Wing Drain
7 1004433 1 Tube, Right Wing Pressure Rear Reel Valve Port RA
8 1004434 1 Tube, Right Wing Return Rear Reel Valve Port RB
9 339989 2 Adapter, Straight
10 1004225 1 Hose, Right Wing Drain
11 2822503 2 Motor, 5” Diameter Reel LF 4675, See 53.1
11 1002620 2 Motor, 7” Diameter Reel LF 4677, See 54.1
12 473142 6 Tie Wrap
1
2
3
3
3
4
4
4
4
4
4
5
5
6
7
8
9
9
10
11
11
12
12
Rear Reel Valve
Rear Reel Valve
Viewed From Bottom
Viewed from Behind
