– 5 –

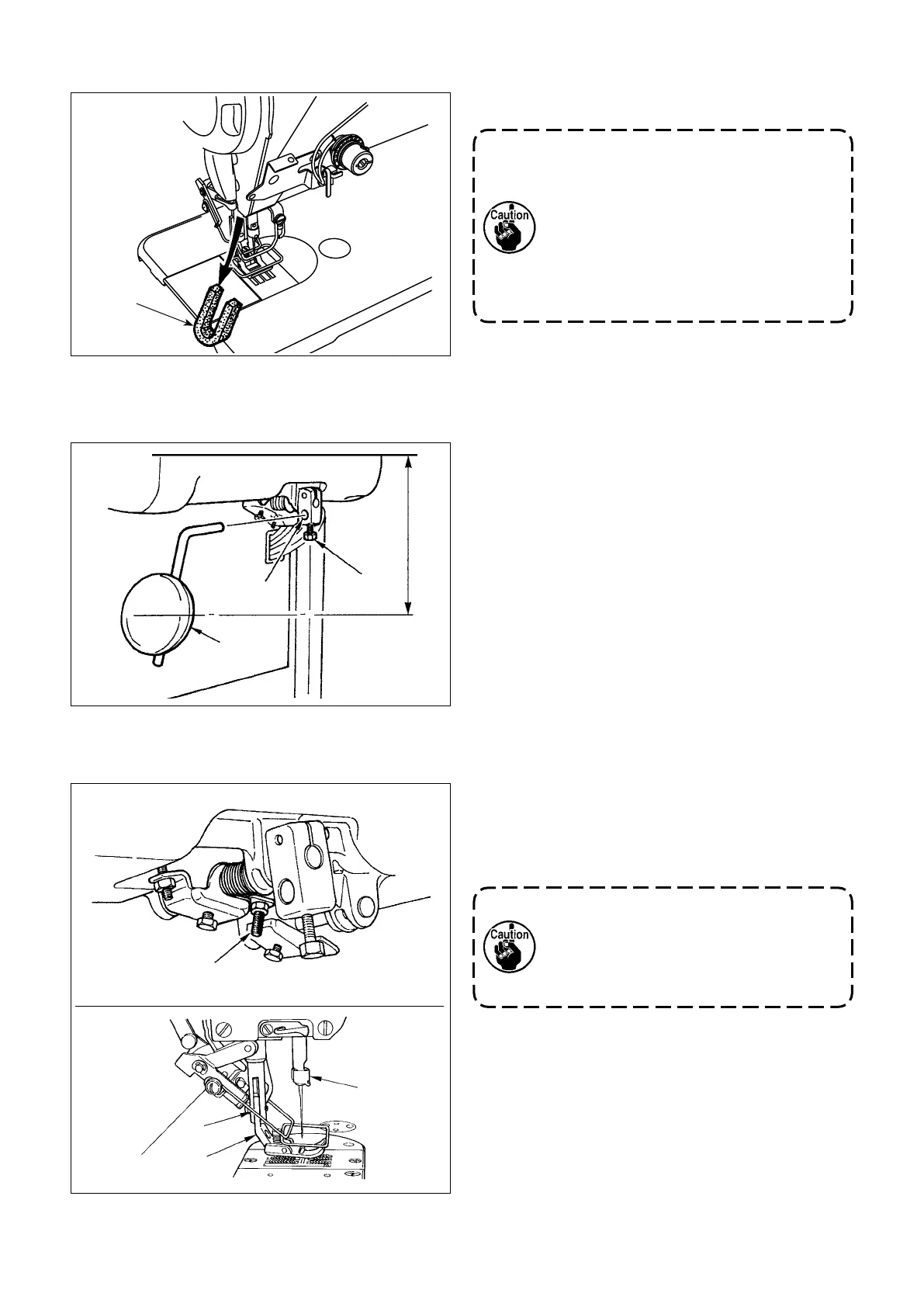

2-4. Removing the needle bar stopper
220mm
Keep the needle bar stopper which has
been removed, and install this nee-
dle bar stopper when transporting the
sewing machine. The needle bar stopper
may be cut when it is strongly drawn
out. Slightly move the needle bar to the
right or left and slowly draw out the nee-
dle bar stopper.
Remove needle bar stopper
for transportation.
Insert knee-lifter into attaching hole
and tighten it
with bolt
.
* Adjust the position of knee lifter pad
to a con-
venient place. For the reference dimension, the
position is 220 mm from the bottom face of table.
* For the LZ-2290CF/AK156, this work is not nec-
essary.
2-5. Attaching the knee-lifter
2-6. Adjusting the height of the knee lifter
1) The standard height of the presser foot lifted
using the knee lifter is 10 mm.
2) The lift of the presser foot can be adjusted with
knee lifter adjustment screw
.
Do not operate the sewing machine in
the state that presser foot
is lifted by
10 mm or more since needle bar
and
presser foot
, or wiper
and presser
foot
come in contact with each other.
