– 8 –

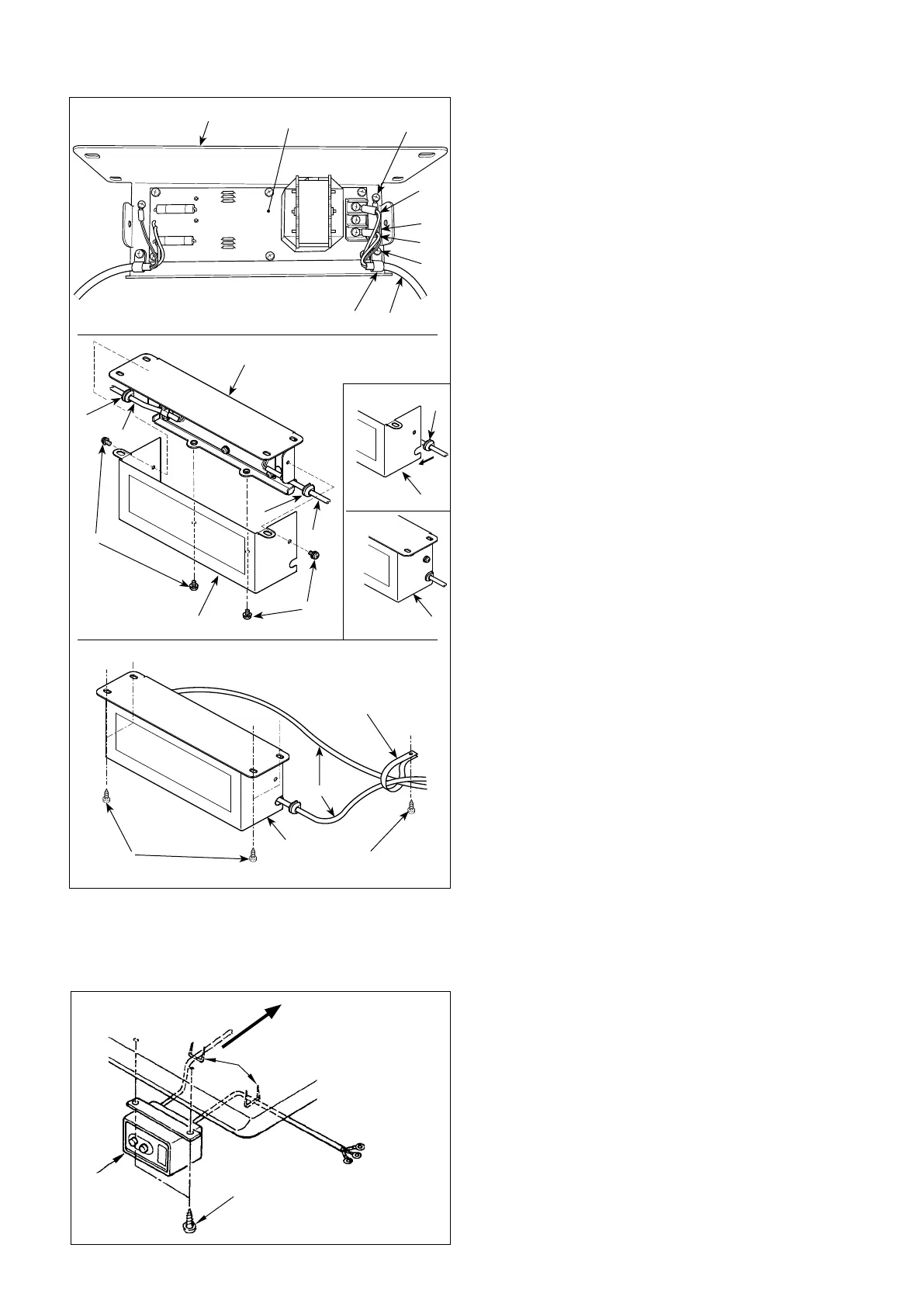

2-10. Installing the reactor box (Only for the EU type models)
1
）
Attach the terminals of power cord
coming
from the electrical box to reactor box PCB asm.
and reactor box mounting plate
.
Connect brown wire
A
to the rst connector and
blue wire
B
to the third connector respectively
from the top of terminal block on the reactor box
PCB asm. using screws. Connect green/yellow
wire
C
to reactor box mounting plate
with
earth setscrew
.
2) Attach cable clip
to the power cord coming
from the electrical box. Then, attach the power
cord together with the cable clip to reactor box
mounting plate
with cable clip setscrew
.
3) Attach cord bushes
to input/output cables
and
of the reactor box. Attach both bushes in
the same manner.
4) Attach reactor box cover
to reactor box
mounting plate
with four reactor-box cover
setscrews
.
At this time, x cord bushes
attached to input/
output cables
and
in the concave section
on reactor box cover
to eliminate a gap be-
tween reactor box
and cover
.
5) Secure reactor box
to the undersurface of
table with four accessory wood screws
.
6) Secure two cables
coming from reactor box
to the table with accessory cable clip
and
wood screw
.
A
B
C
Electrical box
(EU type models:
Reactor box)
2-11. Connecting the power switch cable
Fix power switch
under the machine table with
wood screws
.
Fix the cable with staples
supplied with the ma-
chine as accessories in accordance with the forms of
use.
2-11-1. Installing the power switch
To Next Page
