– 78 –
5-3. Setting of the sewing shape
• Zigzag width can be set from “0” to 10 mm. (Set value is limited by the max. zigzag width limitation.)
• Stitch base line can be set as follows. When the center of zigzag is “0.0”, Right side: “+” Left side : “–”.
5-3-1. 2-step zigzag, 3-step zigzag and 4-step zigzag stitch

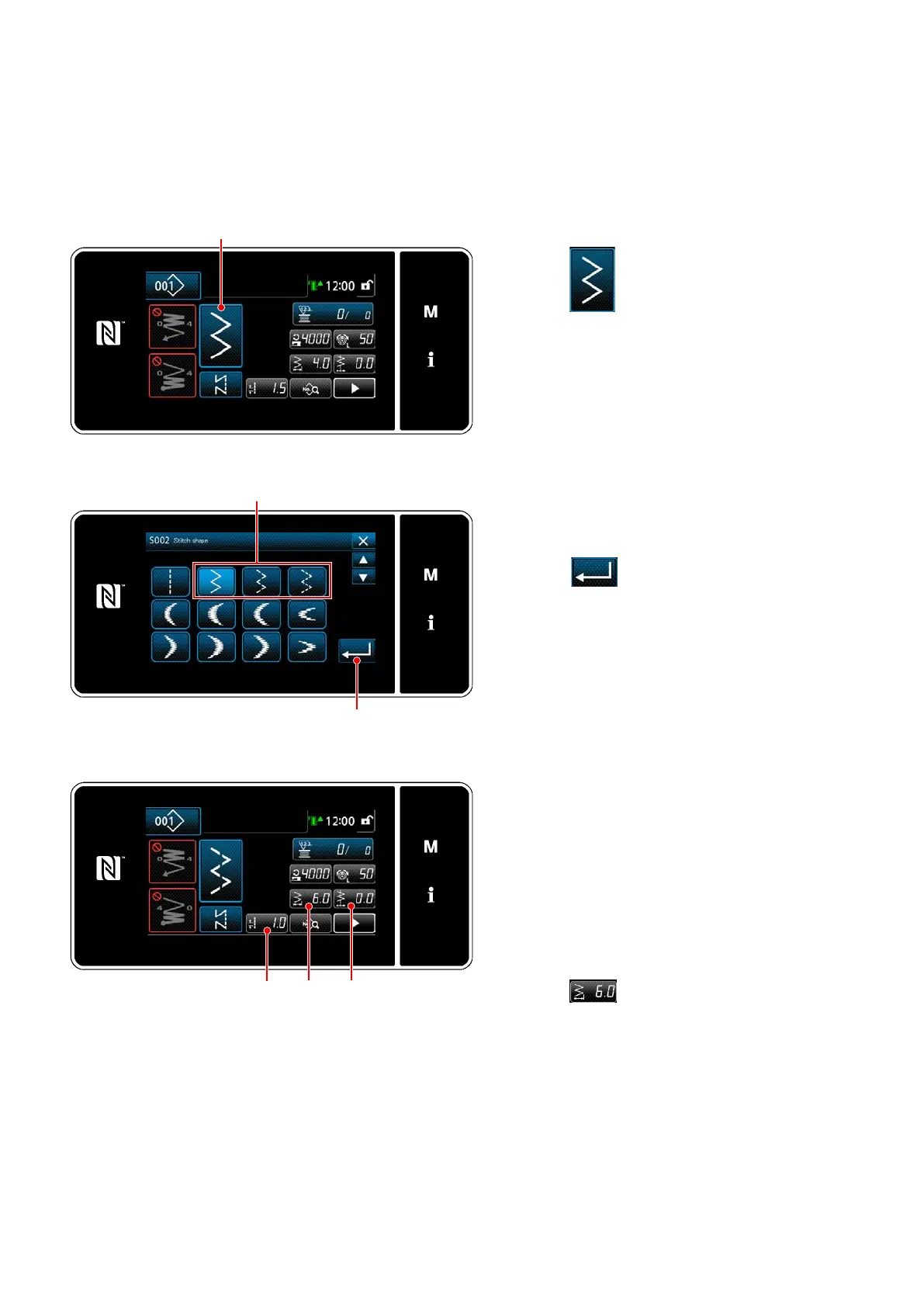

<Sewing shape selection screen>
1) Press
on the sewing screen under
the maintenance personnel mode. "Sewing
shape selection screen" is displayed.
2) Select 2-step (3-step or 4-step) zigzag stitch
.
3) When
is pressed, the selection you
have made is conrmed and the screen is
returned to the "sewing screen".
<Sewing screen (Maintenance personnel mode)>
4) Setting the zigzag width, stitch baseline and
stitch length.
* For a pattern other than the zigzag stitch
pattern, the zigzag width, stitch baseline
and stitch length can be set following the
same steps of procedure.
[Setting the zigzag width]
・
Press
on the sewing screen.
The "Zigzag width input screen" is displayed.
<Sewing screen>
To Next Page
