– 11 –

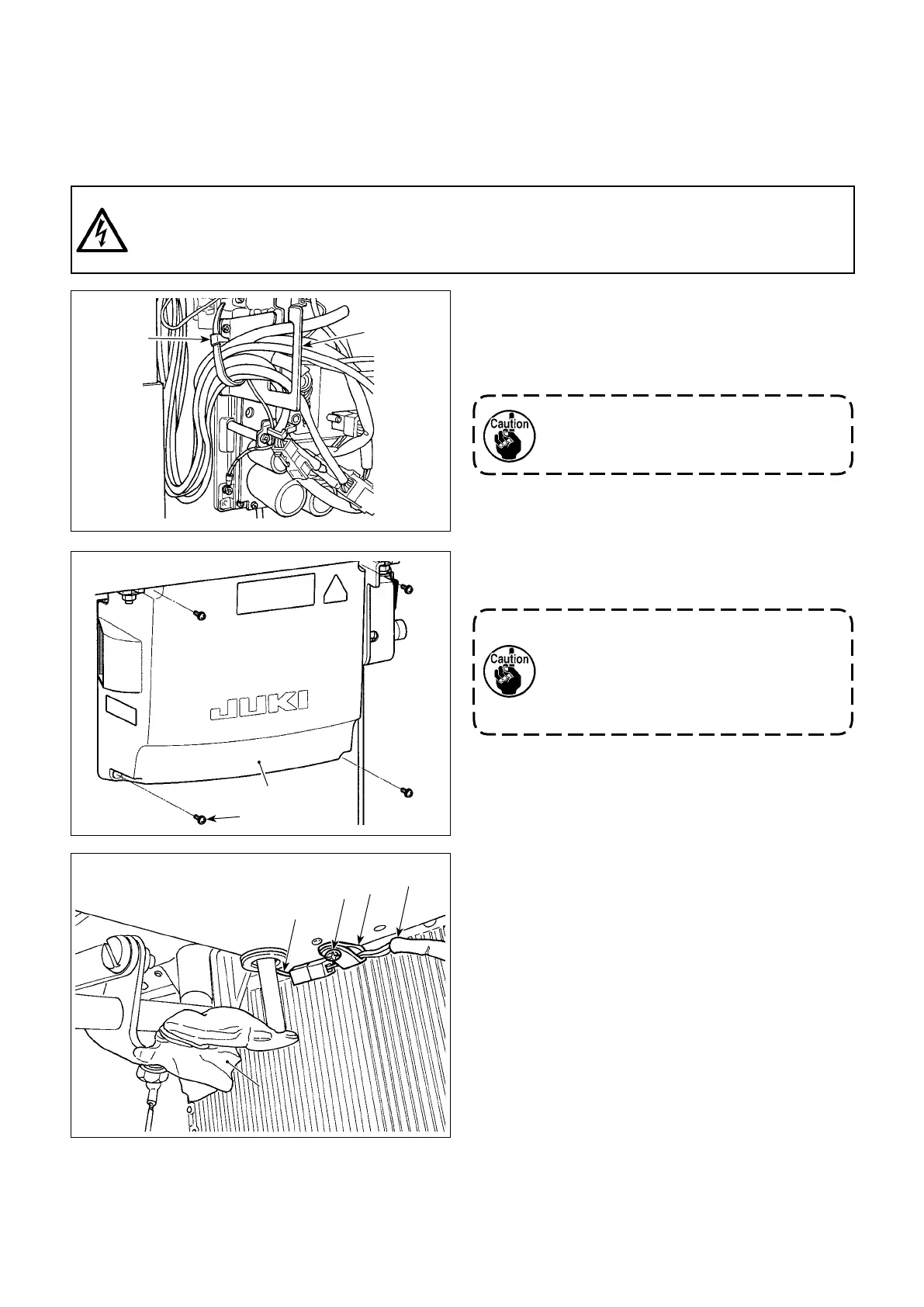

2-14. Handling the cords
1) Bring the cords under the table into the control
box.
2) Put the cord brought into the control box through
cord exit plate
and x cable clip band
.
3) Install control box cover
with four setscrews
.
Arrange the cord so that it is not tensed
or hitched even when the machine head
is tilted. (See
section.)
For the purpose of preventing the cord
breakage, take care not to allow the
cords to be caught between the control
box and control box cover
when at-
taching the latter.
DANGER :
1. To prevent personal injuries caused by electric shock hazards or abrupt start of the sewing machine,
carry out the work after turning OFF the power switch and a lapse of 5 minutes or more.
2. To prevent accidents caused by unaccustomed work or electric shock, request the electric expert or
engineer of our dealers when adjusting the electrical components.
2-13-2.
Screwing the underside cover ground wire to the underside cover (Only for the EU type models)
Re-tighten the underside cover ground wire that you have removed in
"2-9-1. Preparing for installation
of the control box (Only for the EU type models)" p.7
.
4) Remove cord clamp setscrew
of the under-
side cover. Pass fan cord
on the machine
head side through cord clamp
. Then, secure
the cord clamp with setscrew
again.
5) Connect fan cord
on the machine head side to
fan cord
on the underside cover side.
6) Detach vinyl wrap lm
from the knee lifter
actuation arm.
To Next Page
