5. HOW TO USE THE OPERATION PANEL
5-1. Explanation of the sewing screen (when selecting a sewing pattern)
On the sewing screen, the shape and set values of the currently-sewn sewing pattern are displayed.
The display and button operation dier according to the selected sewing pattern.
Note that the sewing screen shows two dierent displays, i.e., the sewing pattern display and the counter
display. Refer to
"5-5. Counter function" p. 103
for the description of the counter display.
There are two dierent screen display modes; i.e.,
<Operator mode>
and
<Maintenance personnel
mode>
.
The mode can be changed over between the operator mode and the maintenance personnel mode by simul-
taneously pressing
and
.
The screen display mode can also be changed with the memory switch "U400: Operate usage mode".
Refer to
"5-7. List of memory switch data" p. 109
for details.

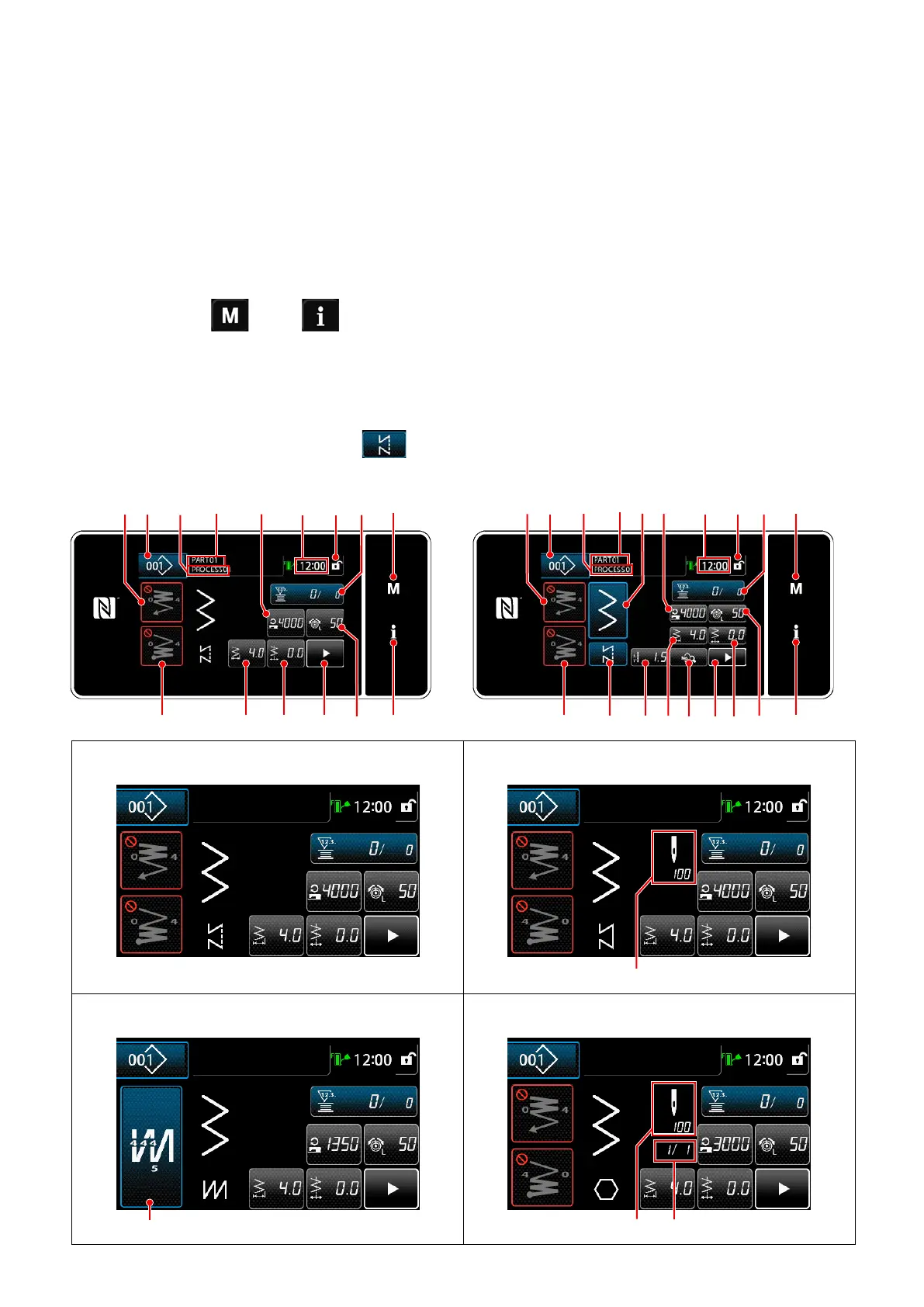

(1) Sewing screen (when selecting a sewing pattern)
Sewing pattern can be selected with
. Five dierent sewing patterns are available as described
below.
Free stitching pattern
(Operator mode)
Constant-dimension sewing pattern
(Operator mode)
Multi-layer stitching pattern
(Operator mode)
Polygonal-shape stitching pattern
(Operator mode)
<Operator mode> <Maintenance personnel mode>
To Next Page
