– 2 –
2. SET UP

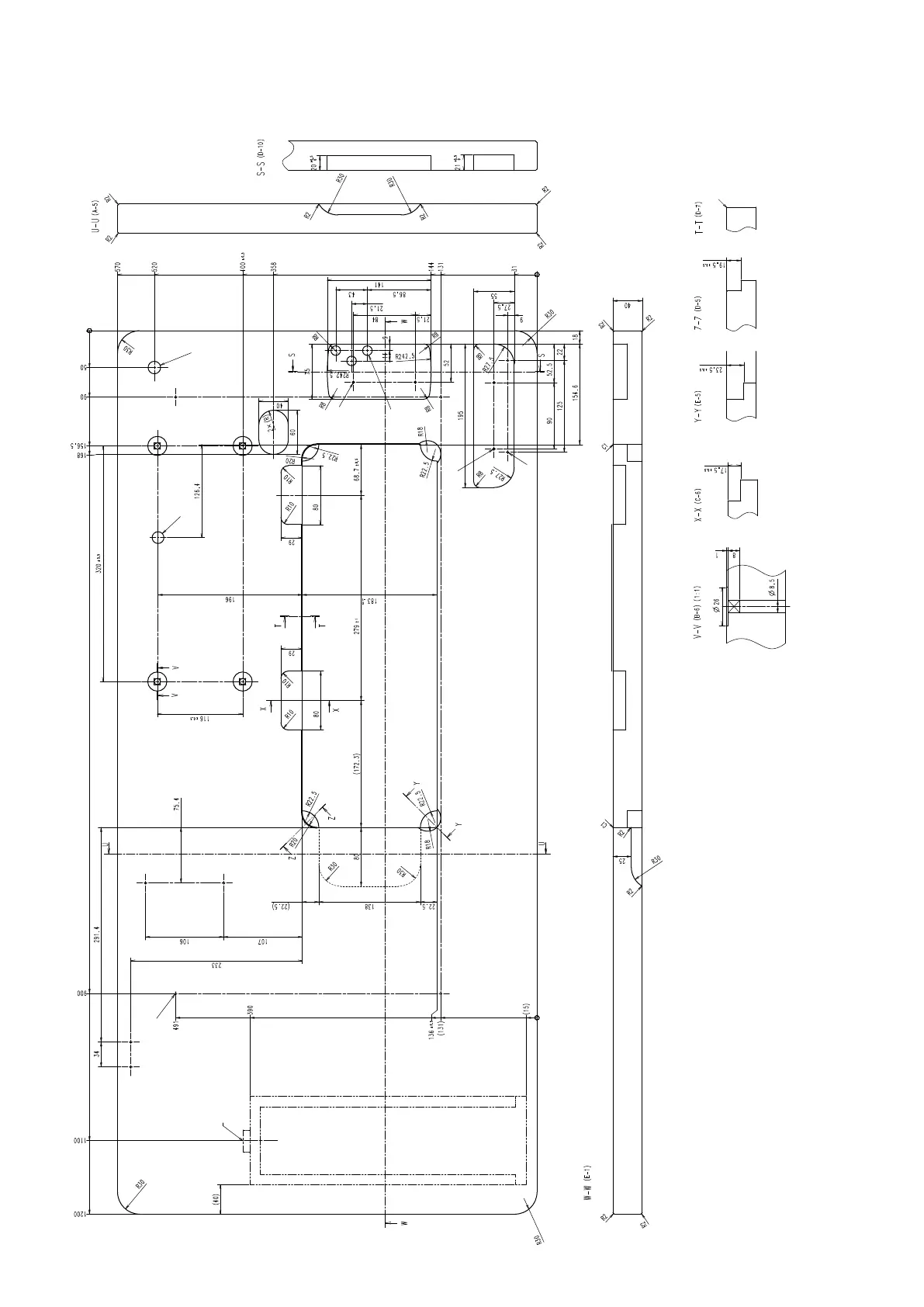

2-1. Drawing of table
(4 locations)
8×ø3.4 on the bottom surface, depth 20 (Drill a hole at the time of set-up.)
Installing position of drawer stopper (on the reverse side)
ø16, depth 30
ø17 drilled hole
3×ø13 drilled hole
2×ø3, depth 10
2×ø3, depth 10
2×ø3.4 on the bottom surface, depth 10 (Drill a hole at the time of set-up.)
C1.5 to C2.5 (hinge side only)
(2 locations)
(2 locations)
(2 locations)
6
8
Table of Contents
Table of Contents
2
Specifications
6
Specifications of the Sewing Machine Head
6
Specifications of the Control Box
6
Set up
7
Drawing of Table
7
Cautions When Setting up the Sewing Machine
8
How to Carry the Sewing Machine
8
Caution When Placing the Sewing Machine
8
Installation
8
Removing the Needle Bar Stopper
10
Attaching the Knee-Lifter
10
Adjusting the Height of the Knee Lifter
10
Installing the Thread Stand
11
Installing the Thread Guide Pin
11
Installing the Electrical Box
12
Preparing for Installation of the Control Box (Only for the EU Type Models)
12
Installing the Reactor Box (Only for the EU Type Models)
13
Connecting the Power Switch Cable
13
Installing the Power Switch
13
Connecting the Power Source Cord
14
Installing the Accessory Ring Core (Only for the EU Type Models)
14
Installing the Accessory Ring Core Supplied with the Electrical Box
14
Connecting the Cords
15
Connecting the Cords Coming from the Sewing Machine
15
Screwing the Underside Cover Ground Wire to the Underside Cover (Only for the EU Type Models)
16
Handling the Cords
16
Attaching the Connecting Rod
17
Adjustment of the Pedal
18
Installing the Connecting Rod
18
Adjusting the Pedal Angle
18
Pedal Operation
18
Lubrication
19
How to Use the Operation Panel (Basic Explanation)
20
Selection of the Language (Operation to be Done at First)
20
Names and Functions of the Panel Keys
22
Basic Operation
24
Preparation before Sewing
25
Attaching the Needle
25
Removing the Bobbin Case
25
How to Place a Bobbin in the Bobbin Case
26
Winding a Bobbin
27
Threading the Machine Head
28
Adjusting the Sewing Machine
29
Thread Tension
29
Adjusting the Thread Tension No. 1 Tension
29
Adjusting the Needle Thread Tension (Active Tension)
29
Tension Correction (with Respect to Sewing Speed)
30
Tension Correction (with Respect to the Bobbin Thread Remaining Amount)
32
Right / Left Tension Correction
33
Adjusting the Bobbin Thread Tension
34
Thread Take-Up Spring
34
Adjusting the Stroke of Thread Take-Up Spring
34
Adjusting the Pressure of Thread Take-Up Spring
34
Presser Foot(Active Presser Device)
35
Presser Foot Pressure
35
Correction of the Presser Foot Pressure
36
Manual Lifter
37
Adjusting the Stitch Length
38
Changing the Sewing Speed
38
LED Hand Light
39
Reverse Feed Stitching
39
Custom Switch
40
Mirror Stitching
42
Fagot Stitch
44
Adjusting the Amount of Oil in the Hook
45
How to Use the Operation Panel
46
Explanation of the Sewing Screen (When Selecting a Sewing Pattern)
46
Sewing Patterns
50
Sewing Pattern Configuration
50
List of Sewing Patterns
51
Reverse Feed Stitching (at Start) Pattern
53
Reverse Feed Stitching (at End) Pattern
59
Editing the Sewing Patterns
60
List of Pattern Functions
63
Teaching Function
76
One-Touch Utility Changeover Function
78
Registration of a New Sewing Pattern
79
Copying a Pattern
81
Narrow-Down Function
82
Setting of the Sewing Shape
83
2-Step Zigzag, 3-Step Zigzag and 4-Step Zigzag Stitch
83
Scallop Stitching
86
Blind Stitch Sewing
89
Custom Pattern Stitching
90
T Stitch, Left
90
T Stitch, Right
92
Pattern 1
95
Pattern 2 (Fagoting)
97
Pattern 3
99
Pattern 4
101
Pattern 5
103
Setting the Feed Locus
105
Adjusting the Feed Dog Height
105
Operating Timing of the Feed
106
Changing the Feed Locus
107
Counter Function
108
Displaying the Sewing Screen under the Counter Display Mode
108
Types of the Counter
108
How to Set the Counter
109
How to Reset the Count-Completion State
112
Simplified Chart of Panel Displays
113
List of Memory Switch Data
114
List of Errors
119
Memory Switch Data
124
Care
126
Cleaning
126
Cleaning the Cooling Fan Installed on the under Cover
126
Cleaning the Hook Section
126
Replacing Procedure of the Hook Shaft Oil Wick
127
Applying Grease
127
Replacing the Fuse
128
Disposal of Batteries
128
Adjustment of the Machine Head (Application)
129
Needle-To-Hook Relation (Hook Timing Adjustment Mode)
129
Adjusting Height of the Needle Bar
130
Adjusting the Needle-To-Hook Timing and the Needle Guard
131
Attaching / Removing the Hook
132
Adjusting the Thread Trimmer
132
Adjusting the Needle Thread Feeding Device
133
Height and Inclination of the Feed Dog
134
Multi-Layered Section Detection Function
135
Turning off the Multi-Layered Section Changeover Function by the Number of Stitching
138
Grease Shortage Alarm
140
Regarding the Grease Shortage Alarm
140
E221 Grease-Shortage Error
140
Regarding K118 Error Resetting Procedure
141
How to Use the Operation Panel (Application)
142
Management of Sewing Patterns
142
Creation of a New Pattern
142
Copying a Pattern
144
Deleting a Pattern
145
Setting up the Polygonal-Shape Stitching
146
Editing a Polygonal-Shape Stitching Pattern
146
Creating a New Polygonal-Shape Stitching Pattern
152
Setting the Step from Which Polygonal-Shape Stitching Is Started
152
Continuous Sewing Pattern
153
Selecting the Continuous Sewing Pattern
153
Editing the Continuous Sewing Pattern
154
Creating a New Continuous Sewing Pattern
157
Setting the Starting Step of the Continuous Sewing Pattern
157
Cycle Pattern
158
Selecting the Cycle Pattern
158
Editing Cycle Sewing Data
159
Creating a New Cycle Pattern
160
Setting the Step from Which Cycle Sewing Pattern Is Started
162
Custom Pattern
163
Selecting the Custom Pattern
163
Creating a New Custom Pattern
165
Editing the Custom Pattern
168
Copying and Deleting the Custom Pattern
169
Condensation Custom Pattern
170
Selecting the Condensation Custom
170
Creating a New Condensation Custom
170
Condensation Custom Edit Function
172
Copying/Deleting a Condensation Custom
173
Simple Lock of the Screen
174
Version Information
174
Adjustment of Brightness of the LED Panel
175
Information
176
Data Communication
176
Usb
179
Nfc
180
Key Customization
181
Assignable Data
181
How to Assign a Function to a Key
182
Maintenance Management Function
184
Sewing Speed Table
188
Troubles in Sewing and Corrective Measures
189
