– 7 –
2-9. Installing the electrical box

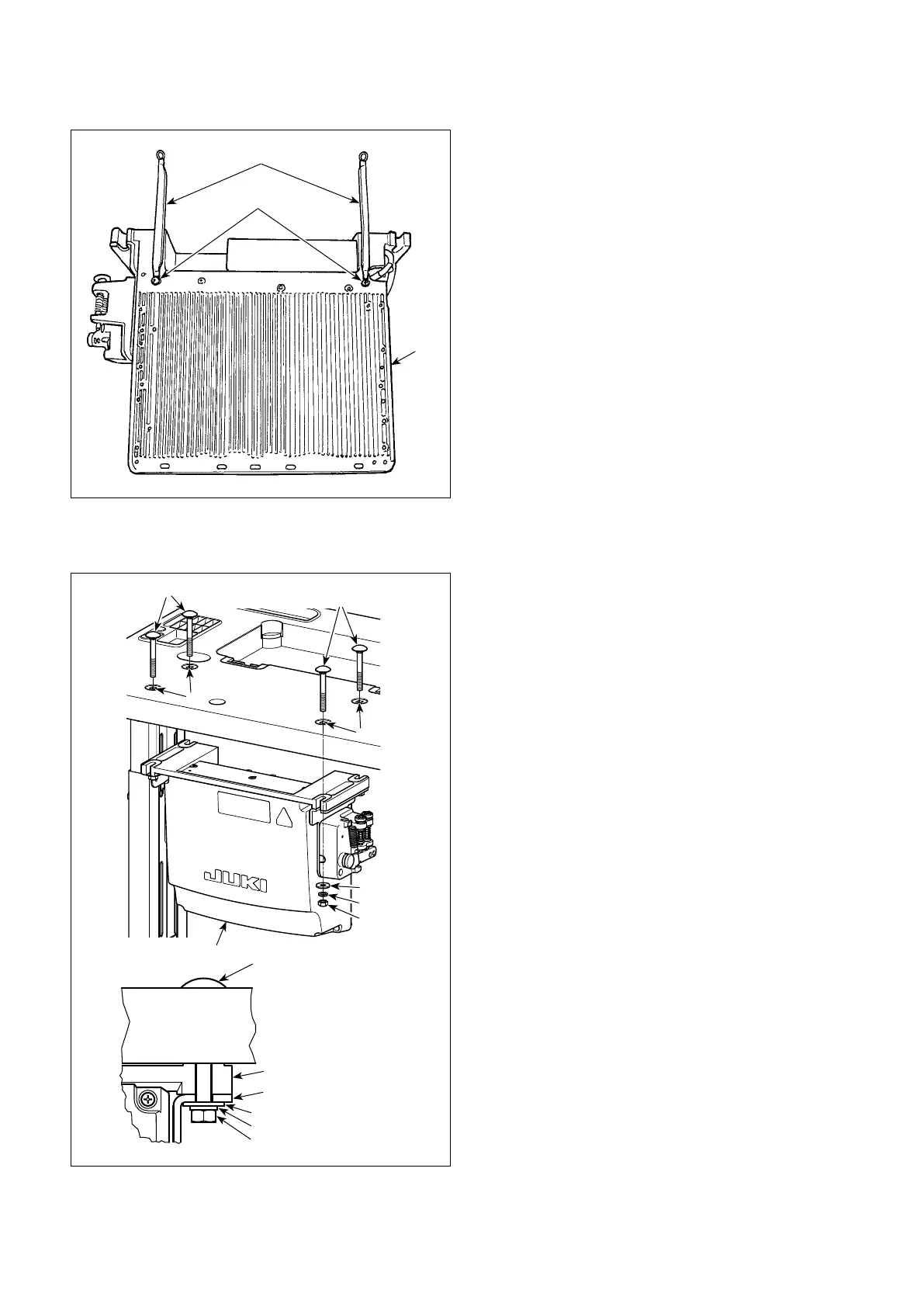

2-9-1. Preparing for installation of the control box (Only for the EU type models)
1) Underside cover ground wires
are attached
to the underside cover. Secure underside cover
ground wired
on electrical box
with screws.
At this time, remove once the mounting screws
from the underside cover.
Install the electrical box to the frame located be-
hind the electrical box in the upward direction as
shown in the gure. Use mounting screws
that
has been preliminarily attached to the frame.
Install control box
on the table using four holes
in the table. Secure the control box with four bolts
,
four plain washers
, four spring washers
and
four hexagonal nuts
supplied with the control box.
At this time, insert the nut and washer supplied with
the unit as accessories as shown in the gure so
that the control box is securely xed.
2-9-2. Installing the electrical box
Frame
Pedal sensor
