– 12 –

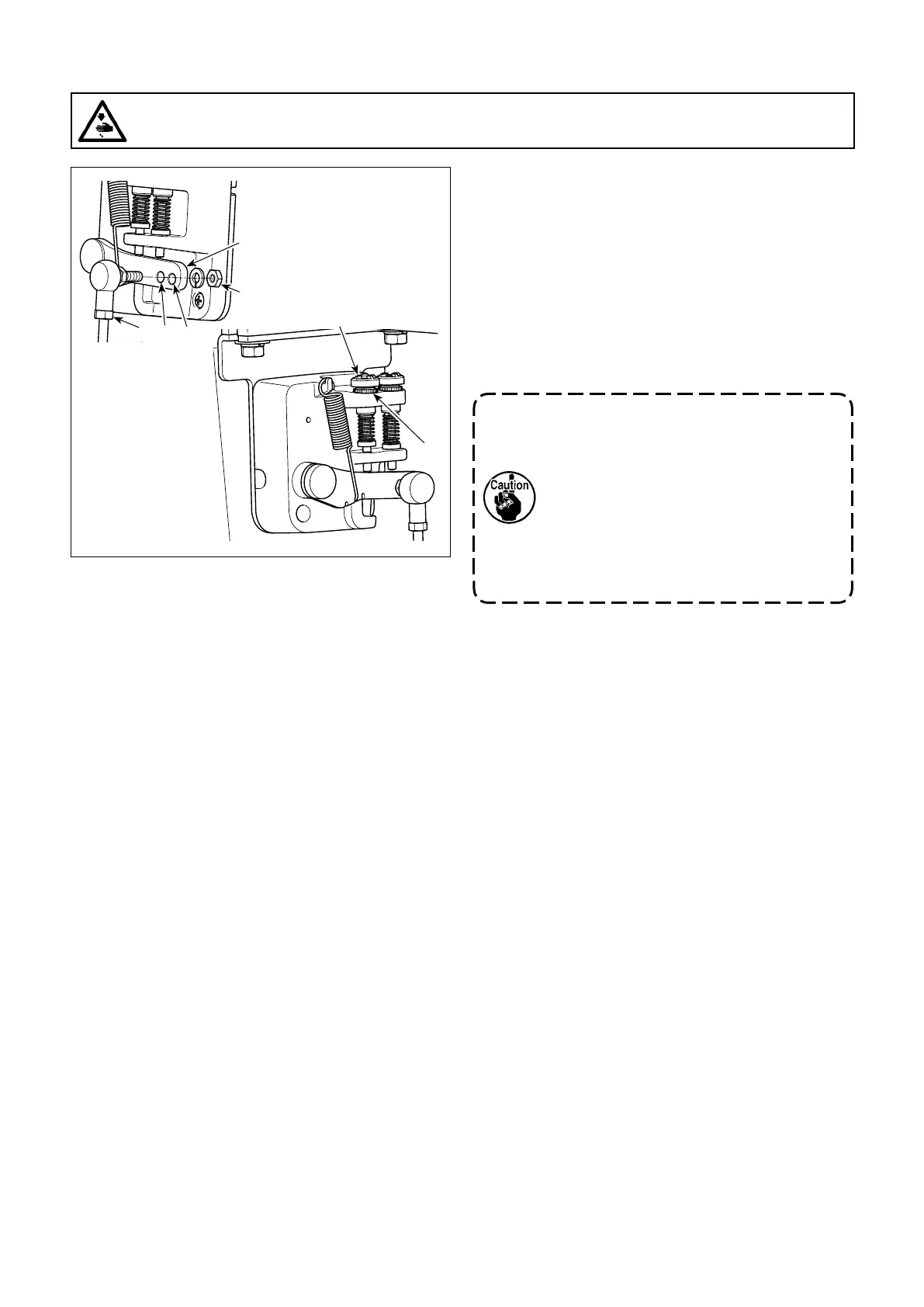

2-15. Attaching the connecting rod
1. If the screw is excessively loosened,
the spring will come o. Loosen the
screw to such an extent that the top of
the screw can be observed from the
case.
2. Whenever you have adjusted the
screw, be sure to secure the screw by
tightening metal nut
to prevent the
screw from loosening.
1) Fix connecting rod
to installing hole
of ped-
al lever
with nut
.
2) Installing connecting rod
to installing hole
will lengthen the pedal depressing stroke, and
the pedal operation at a medium speed will be
easier.
3) The pressure increases as you turn reverse de-
pressing regulator screw
in, and decreases as
you turn the screw out.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power o and a lapse of 5 minutes or more.
To Next Page
