– 3 –
2-2. Cautions when setting up the sewing machine

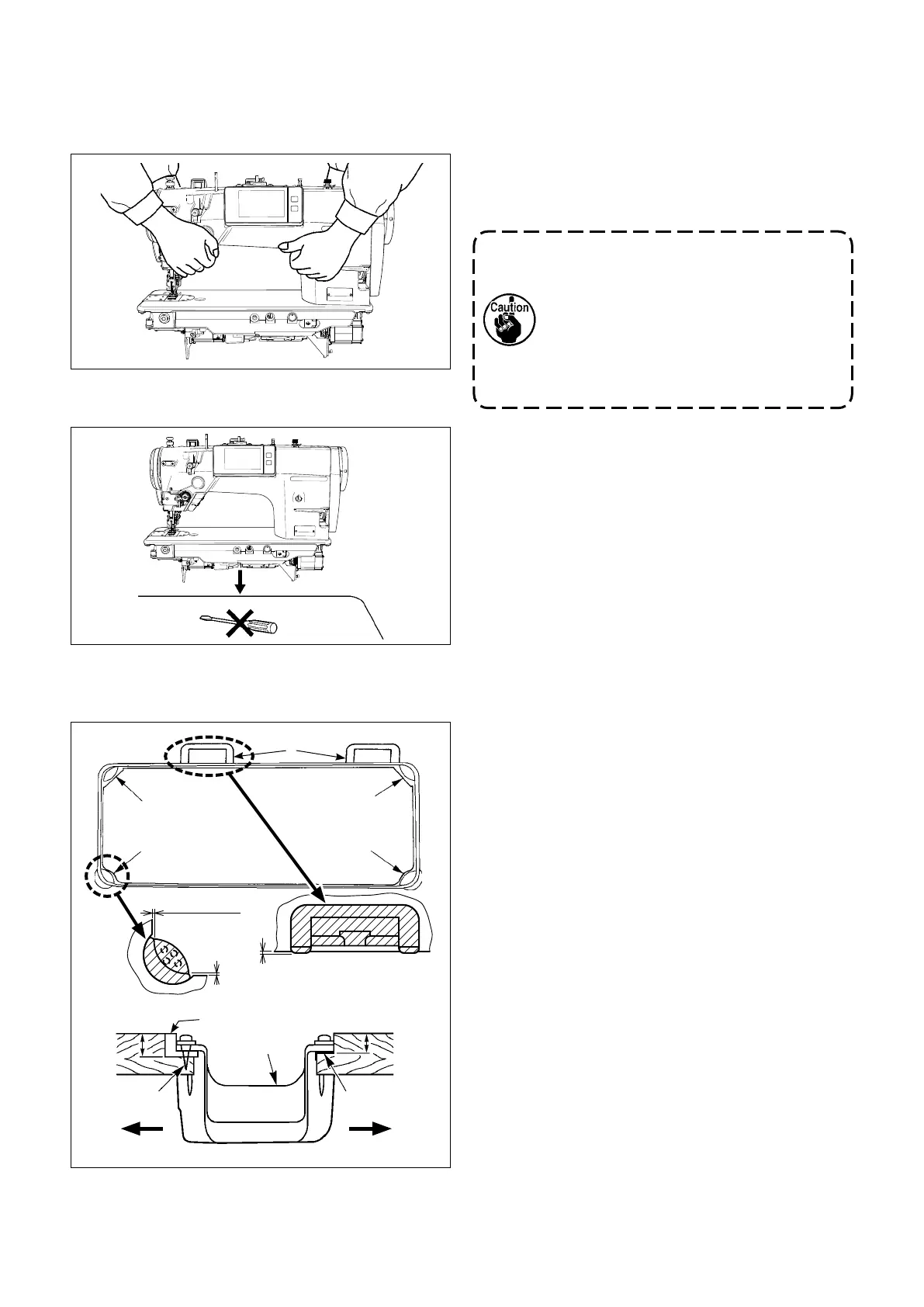

2-2-1. How to carry the sewing machine
Carry the sewing machine while holding the machine
arm with two persons as shown in the gure.
1. Never hold the handwheel since it
rotates.
2.
Be sure to handle the sewing machine
with two persons or more since the sew-
ing machine weighs 49.5 kg or more.
3. Do not hold the operation panel por-
tion when you setting up the sewing
machine head.
2-2-2. Caution when placing the sewing machine
Place the sewing machine on a horizontal and plane
place when placing it and do not place any protrud-
ing thing such as a screwdriver or the like.
2-3. Installation
Thank you very much for the purchase of JUKI Industrial Sewing Machine this time. Make sure of items 2-1
through 2-19 before operating to use this sewing machine with ease.
1) The under cover
should rest on the four cor-
ners of the machine table groove. Mount rubber
hinge seat
on the table and x it on the table
with a nail.
2) Fix two rubber seats
on side
(operator’s
side) using nails
as illustrated above. Fix two
cushion seats
on side
(hinged side) using a
rubber-based adhesive. Then place under cover
on the xed seats.
23.5 mm
19.5 mm
1.2±0.5 mm
1.2±0.5 mm
1±0.5 mm
To Next Page
