2) Display "S070 Feed dog height correction" by
pressing
.
5-4-1. Adjusting the feed dog height
1. Be aware that interference between the throat plate and feed dog can occur depending onthe
gauge used. Be sure to check the clearance in the gauge to be used. (The clearancemust be 0.5
mm or more.)
2. When you have changed the stitch length, feed dog height or feed timing, run the sewingma-
chine at a low speed to make sure that the gauge does not interfere with the changedpart.
[How to adjust]

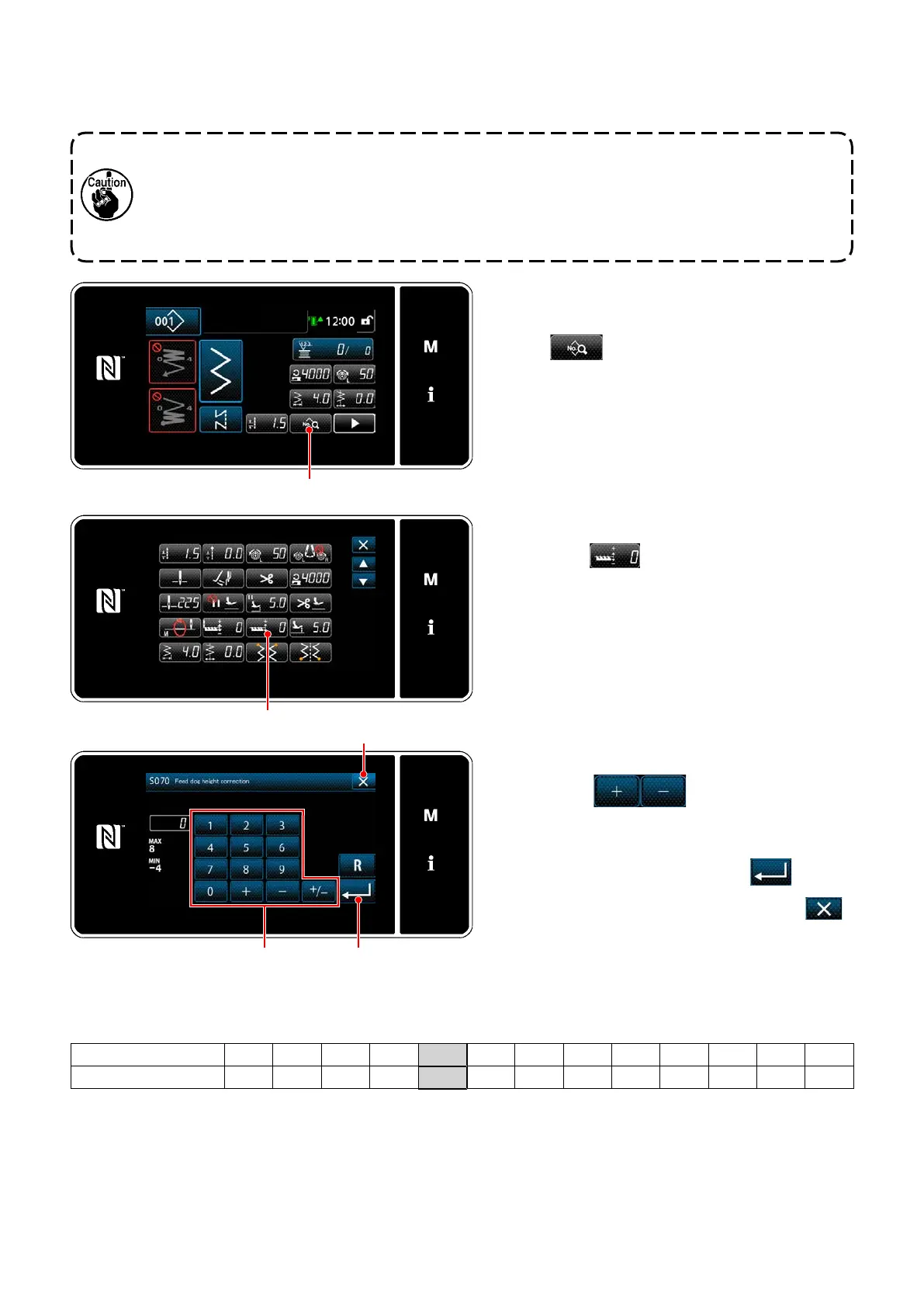

1) Display the sewing data edit screen bypress-
ing
.
Feed dog height (mm) 1.10 1.15 1.20 1.25 1.30 1.35 1.40 1.45 1.50 1.55 1.60 1.65 1.70
Input value on the panel
-4 -3 -2 -1 0 1 2 3 4 5 6 7 8
Low ←←← ↑
Standard
(Factory-setting at the time of shipment)
→→→ High
* Range of input values on the panel is from -4 to 8.
3) Change the feed dog height by pressing ten-
keys and
.
* Refer to the following for the adjusta-
blerange of the feed dog height.
4) Conrm your entry by pressing
.
5) Display the sewing screen by pressing
.
