Juniper EX2300 Series Hardware Guide

1. Connect one end of the Ethernet cable to the management port on the device.
2. Connect the other end of the Ethernet cable to the management device.

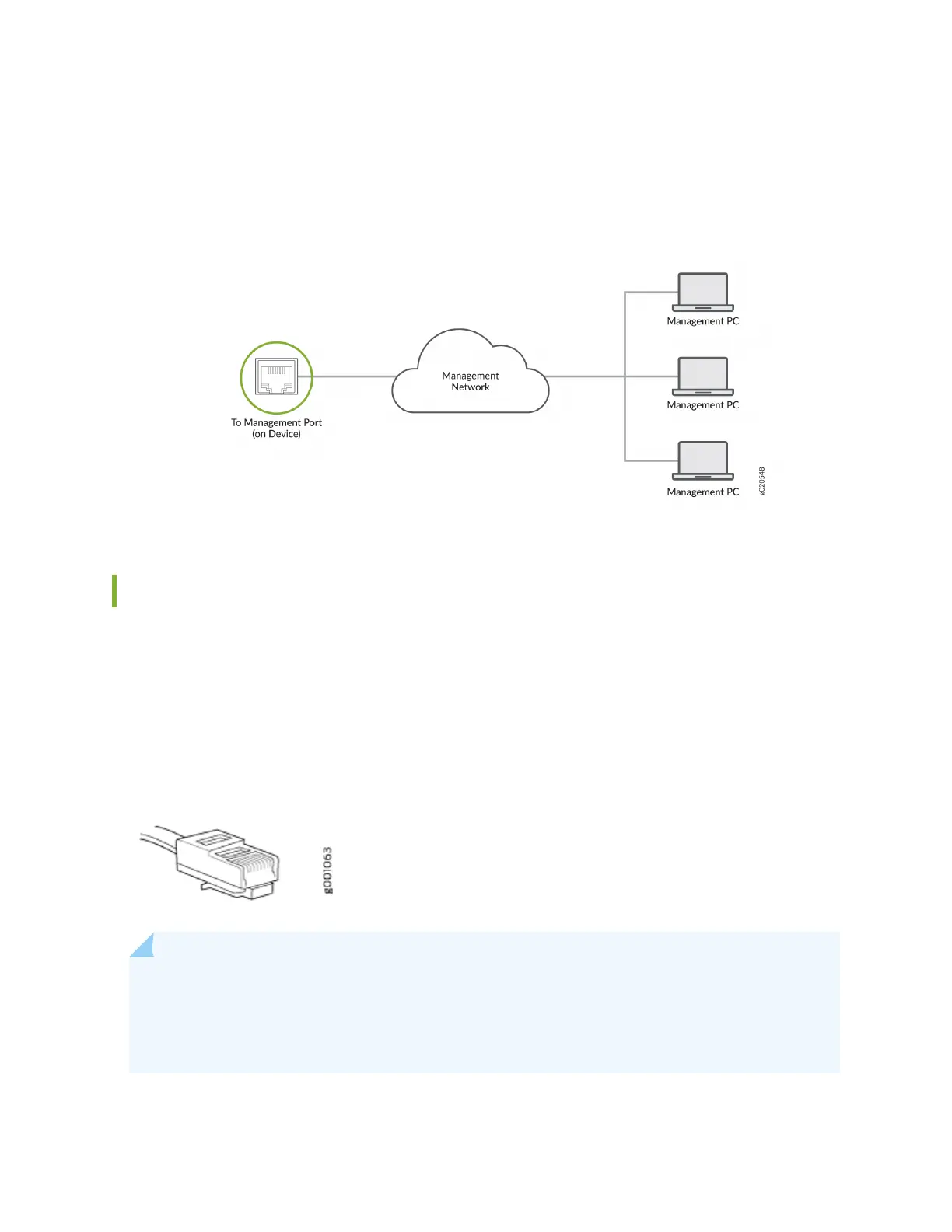

Figure 82: Connect a Device to a Network for Out-of-Band Management
Connect a Device to a Management Console Using an RJ-45 Connector
Ensure that you have an Ethernet cable that has an RJ-45 connector at either end. One such cable and
an RJ-45 to DB-9 serial port adapter are supplied with the device.
Figure 83 on page 148 shows the RJ-45 connector of the Ethernet cable.
Figure 83: RJ-45 Connector on an Ethernet Cable
NOTE: If your laptop or desktop PC does not have a DB-9 plug connector pin and you want to
connect your laptop or desktop PC directly to the device, use a combinaon of the RJ-45 to
DB-9 socket adapter supplied with the device and a USB to DB-9 plug adapter. You must provide
the USB to DB-9 plug adapter.
148
