Chassis Status LEDs in EX2300 Switches
The front panel of EX2300 switches except the EX2300-24MP and EX2300-48MP models has three
chassis status LEDs labeled SYS, ALM, and MST. See Figure 16 on page 26 and Figure 17 on page 26.

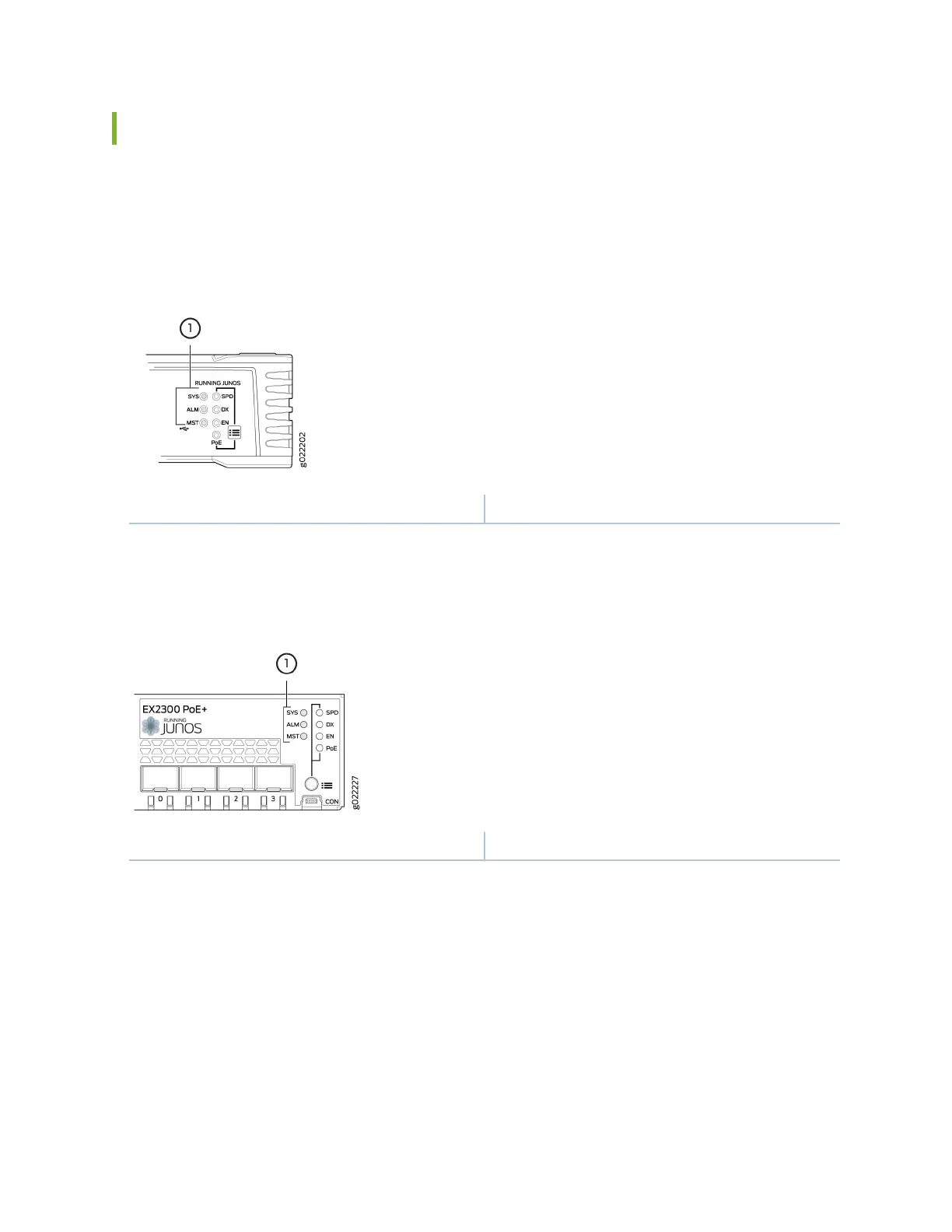

Figure 16: Chassis Status LEDs in EX2300-C Switches
1—
Chassis Status LEDs
Figure 17: Chassis Status LEDs in EX2300 Switches Except the EX2300-C, EX2300-24MP and
EX2300-48MP Models
1—
Chassis Status LEDs
Table 4 on page 27 describes the chassis status LEDs in EX2300 switches except the EX2300-24MP
and EX2300-48MP models, their colors and states, and the status they indicate.
