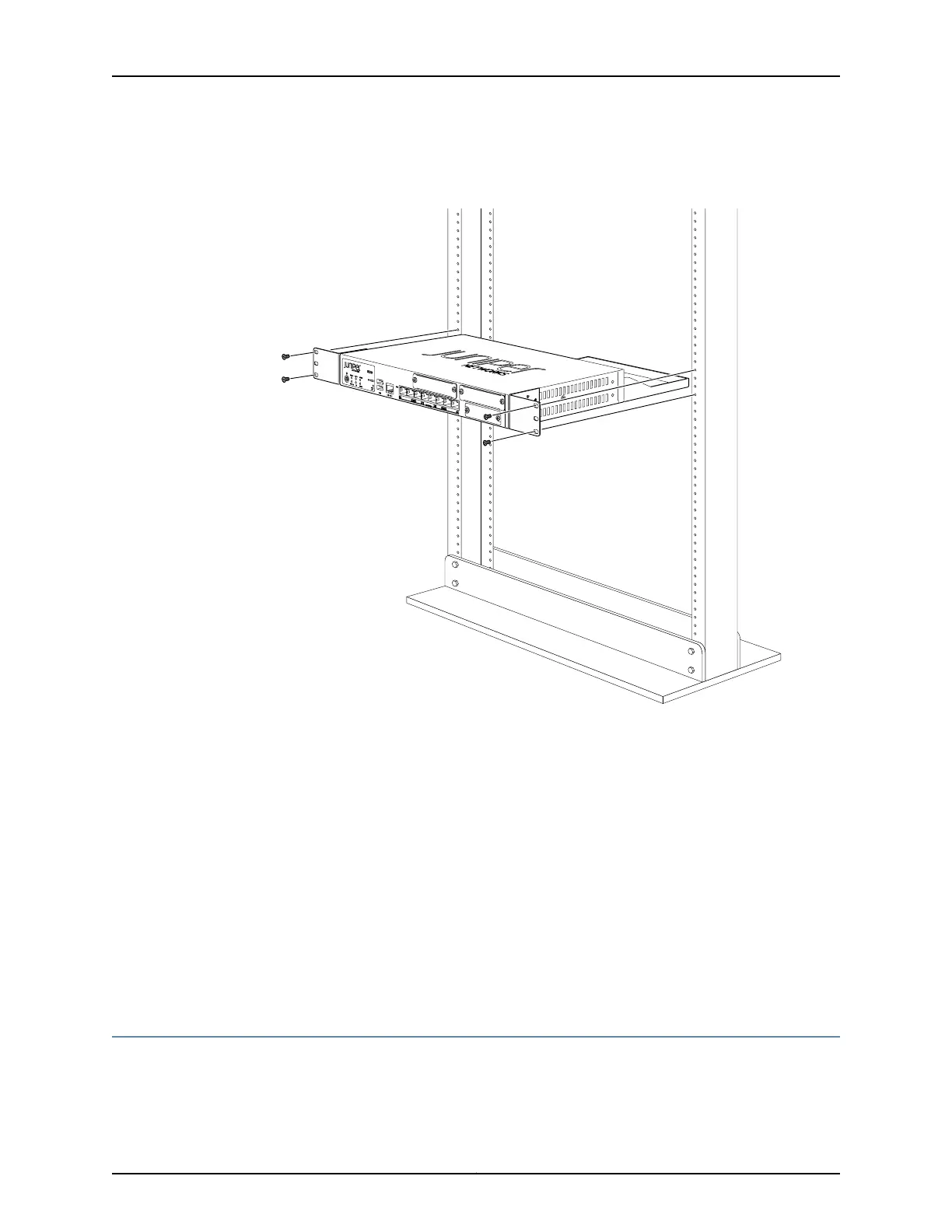

Figure 14: SRX220 Services Gateway Rack Installation — Installing the
Services Gateway in a Rack
9. Have a second person install a mounting screw into each of the two aligned holes.
Use a number-3 Phillips screwdriver to tighten the screws.
10. Install the second screw in each mounting bracket.
11. Verify that the mounting screws on one side of the rack are aligned with the mounting
screws on the opposite side and that the device is level.
Related
Documentation
SRX220 Services Gateway General Safety Guidelines and Warnings on page 51•
• Required Tools and Parts for Installing and Maintaining the SRX220 Services Gateway
on page 72
• Preparing the SRX220 Services Gateway for Rack-Mount Installation on page 79
• Installing the SRX220 Services Gateway on a Wall on page 86
Installing the SRX220 Services Gateway on a Wall
You can install the SRX220 Services Gateway on a wall.
Copyright © 2012, Juniper Networks, Inc.86
SRX220 Services Gateway Hardware
