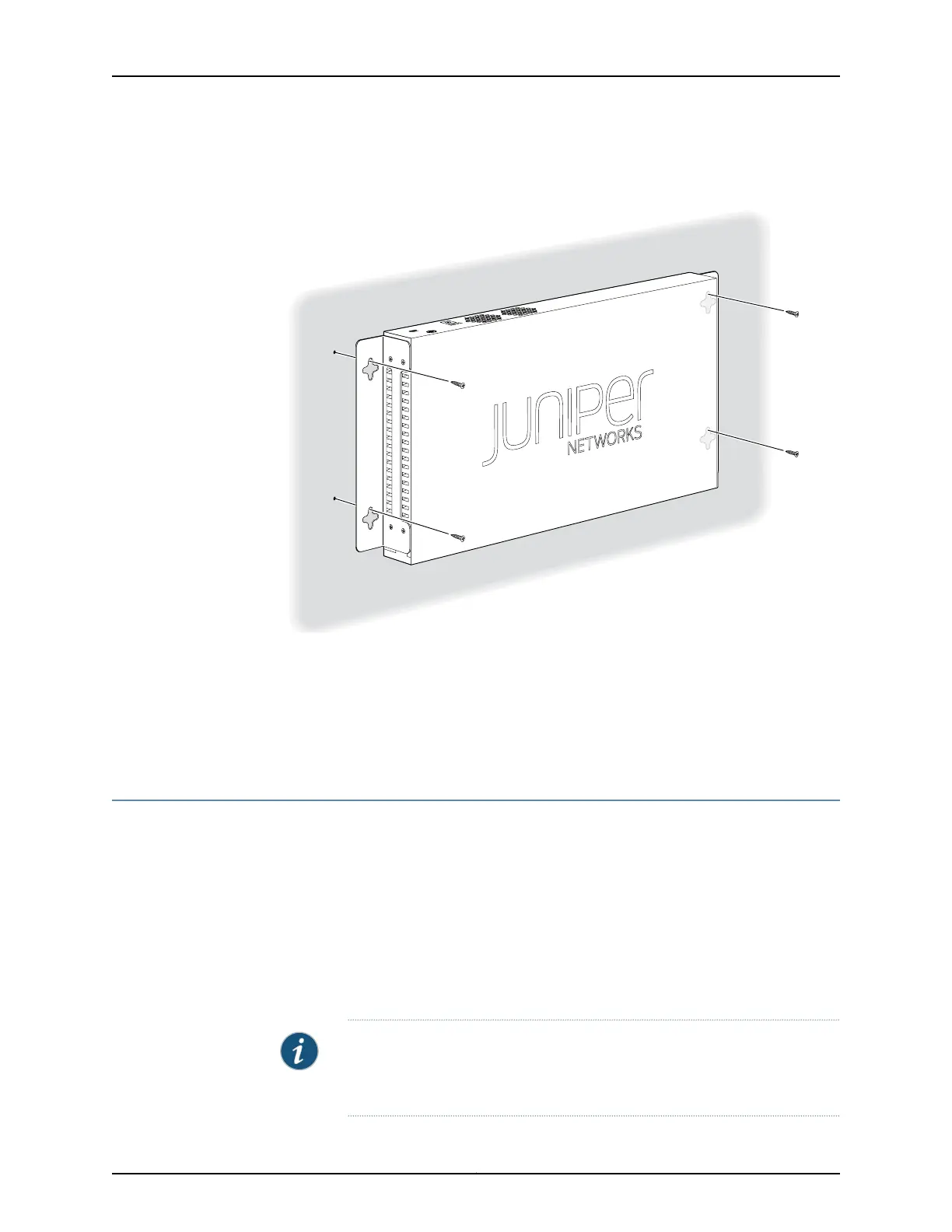

Figure 16: SRX220 Services Gateway Wall Installation — Hanging the
Services Gateway on a Wall
Related
Documentation
SRX220 Services Gateway General Safety Guidelines and Warnings on page 51•
• Required Tools and Parts for Installing and Maintaining the SRX220 Services Gateway
on page 72
• Preparing the SRX220 Services Gateway for Rack-Mount Installation on page 79
Replacing or Installing Mini-Physical Interface Modules in the SRX220 Services Gateway
Mini-Physical Interface Modules (Mini-PIMs) are circuit boards that you can install in a
device for enhanced functionality, based on your requirements. They enable you to easily
add or change physical interfaces on a device.
The SRX220 Services Gateway has two Mini-PIM slots. Each slot is covered with a blank
faceplate to maintain proper airflow through the services gateway. Before installing a
Mini-PIM in a slot, you must remove the blank faceplate from the slot.
See the SRX Series Services Gateways for the Branch Physical Interface Modules Hardware
Guide for information about installing Mini-PIMs.
NOTE: The Mini-PIMs available for the SRX220 Services Gateway do not
support hot swapping. You must power off the device and then unplug its
power supply adapter before removing or installing Mini-PIMs.
Copyright © 2012, Juniper Networks, Inc.88
