SRX220 Services Gateway Front Panel and Back Panel Views
This topic contains views of the front panel and back panel of the SRX220 Services
Gateway. This topic includes the following sections:
•
SRX220 Services Gateway Front Panel on page 9
•
SRX220 Services Gateway Back Panel on page 10
SRX220 Services Gateway Front Panel
Figure 2 on page 9 shows the front panel of the SRX220 Services Gateway models
SRX220H and SRX220H-POE.

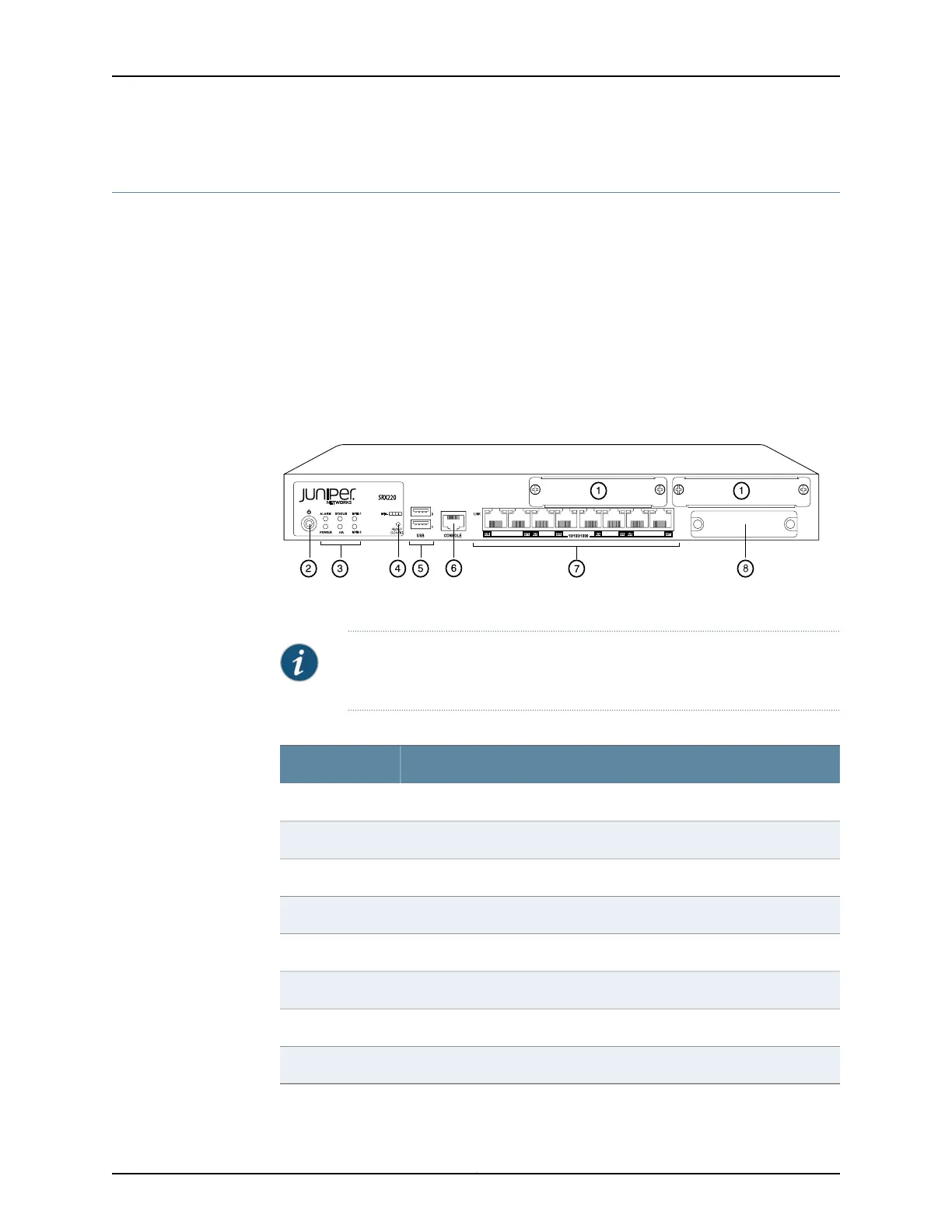

Figure 2: SRX220 Services Gateway Front Panel
g037600
Table 6 on page 9 lists the front panel components of the services gateway.
NOTE: The numbers in Figure 2 on page 9 correspond to the numbers in
Table 6 on page 9.
Table 6: SRX220 Services Gateway Front Panel Components
ComponentNumber
Mini-PIM slot 1 and Mini-PIM slot 21
Power button2
LEDs: Status, Alarm, Power, HA, MPIM-1, MPIM-23
Reset Config button4
USB ports5
Console port6
Gigabit Ethernet ports7
CompactFlash card slot8
For more information on the front panel components, see the following topics:
9Copyright © 2012, Juniper Networks, Inc.
Chapter 2: Hardware Components and Specifications
