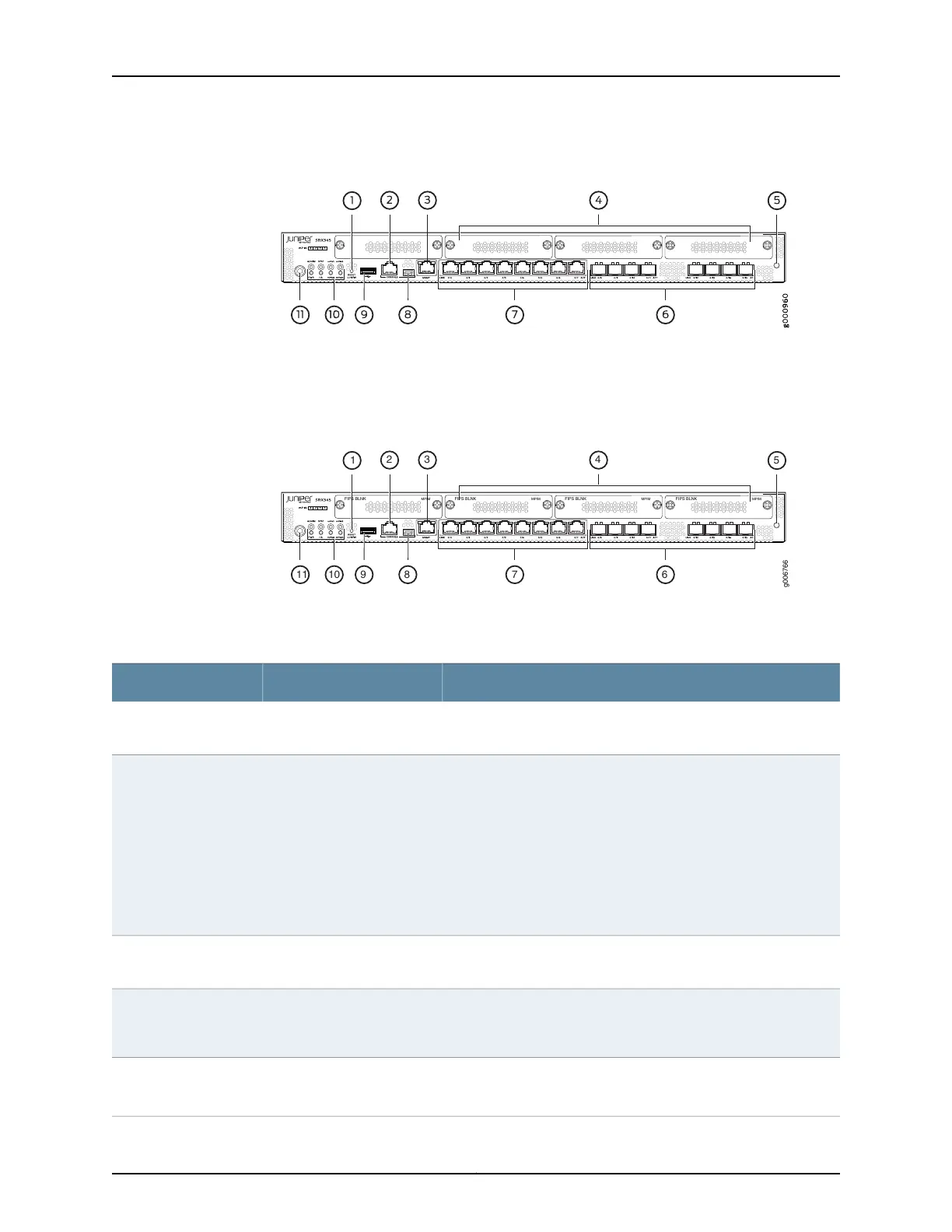

Figure 2: SRX345 Services Gateway (Single AC Power Supply) Front Panel
Figure 3 on page 6 shows the front panel of the SRX345 Services Gateway with dual
AC power supplies.
Figure 3: SRX345 Services Gateway (Dual AC Power Supplies) Front
Panel
g006766
6791011 8
2
1
43
5
FIPS BLNK MPIM FIPS BLNK MPIM FIPS BLNK MPIM FIPS BLNK MPIM
Table 3 on page 6 provides details about the front panel components.
Table 3: SRX345 Services Gateway Front Panel Components
DescriptionComponentCallout
Returns the services gateway to the rescue configuration or the
factory-default configuration.
Reset Config button1
•
Serial—Connects a laptop to the services gateway for CLI
management. The port uses an RJ-45 serial connection and
supports the RS-232 (EIA-232) standard.
•
USB—Connects a laptop to the services gateway for CLI
management through a USB interface. The port accepts a Mini-B
type USB cable plug. A USB cable with Mini-B and Type A USB
plugs is supplied with the services gateway. To use the mini-USB
console port, you must download a USB driver to the management
device from the SRX345 Software Download page or Silicon
Labs page.
Console ports2, 8
Use the management (MGMT) port to connect to the device over
the network.
Management port3
Four slots for Mini-PIMs. The Mini-PIM slots can be used to provide
LAN and WAN functionality along with connectivity to various media
types.
Mini-PIM slots4
For personal safety, while working on the services gateway, use the
ESD outlet to plug in an ESD grounding strap to prevent your body
from sending static charges to the services gateway.
ESD point5
Copyright © 2017, Juniper Networks, Inc.6
SRX345 Services Gateway Hardware Guide
