Table 4: SRX345 Services Gateway Front Panel LEDs (continued)
DescriptionComponent
•
Solid green (operating normally)
•
Solid red (error detected)
STAT
•
Solid green (receiving power)
•
Solid amber (Power-off triggered)
•
Off (no power)
PWR
•
Solid green (all HA links are available)
•
Solid amber (some HA links are
unavailable)
•
Solid red (HA links are not functional)
•
Off (HA is disabled)
HA
•
Solid green (Mini-PIM is functioning
normally)
•
Solid red (Mini-PIM hardware failure)
•
Off (Mini-PIM is not present or Mini-PIM is
not detected by the device)
mPIM1 , mPIM2, mPIM3, and mPIM4
Related
Documentation
SRX345 Services Gateway Chassis Overview on page 5•
• Understanding the SRX345 Services Gateway Back Panel on page 8
Understanding the SRX345 Services Gateway Back Panel

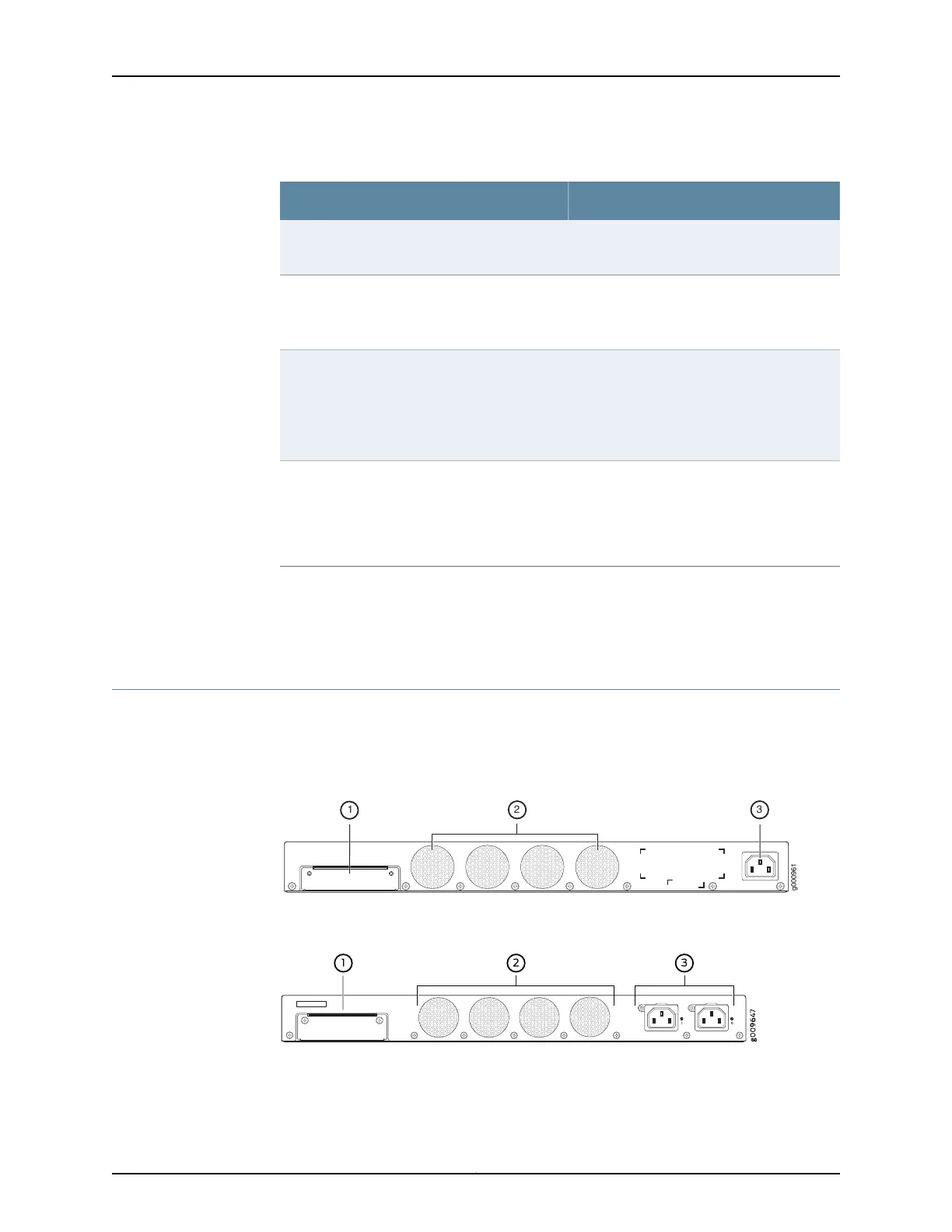

Figure 5 on page 8 and Figure 6 on page 8 show the back panel of the SRX345 Services
Gateway with a single AC power supply and dual AC power supplies respectively.
Figure 5: SRX345 Services Gateway Back Panel (Single AC Power Supply)
g000961
2
1
3
Figure 6: SRX345 Services Gateway Back Panel (Dual AC Power Supplies)
Table 5 on page 9 lists the components on the back panel.
Copyright © 2017, Juniper Networks, Inc.8
SRX345 Services Gateway Hardware Guide

Juniper SRX345 Specifications

General

USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	8
Flash memory	8000 MB
Internal memory	4000 MB
Certification	FCC A, RoHS 2
Rack capacity	1U
Heat dissipation	420 BTU/h
Power consumption (typical)	122 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Routing protocols	BGP, CLNS, MPLS, OSPF, RIP-1, RIP-2
Supported network protocols	IPv4, IPv6
Firewall security	Yes
Security algorithms	IPSEC, SSL/TLS
Networking standards	IEEE 802.1p
Ethernet LAN data rates	10, 100, 1000 Mbit/s

Weight and Dimensions

Weight	4900 g
Dimensions (WxDxH)	440.9 x 370.1 x 43.6 mm
