Digital Video Cassette Technology
6
Starting the Software
Use the following procedure to start the JVC Service Support System software.
1. Set the camera’s Power Dial to the Play position.
2. Start the JVC Service Support System software.
3. Select the appropriate Serial Port in the Serial Port Configuration dialog
box. Click the OK button

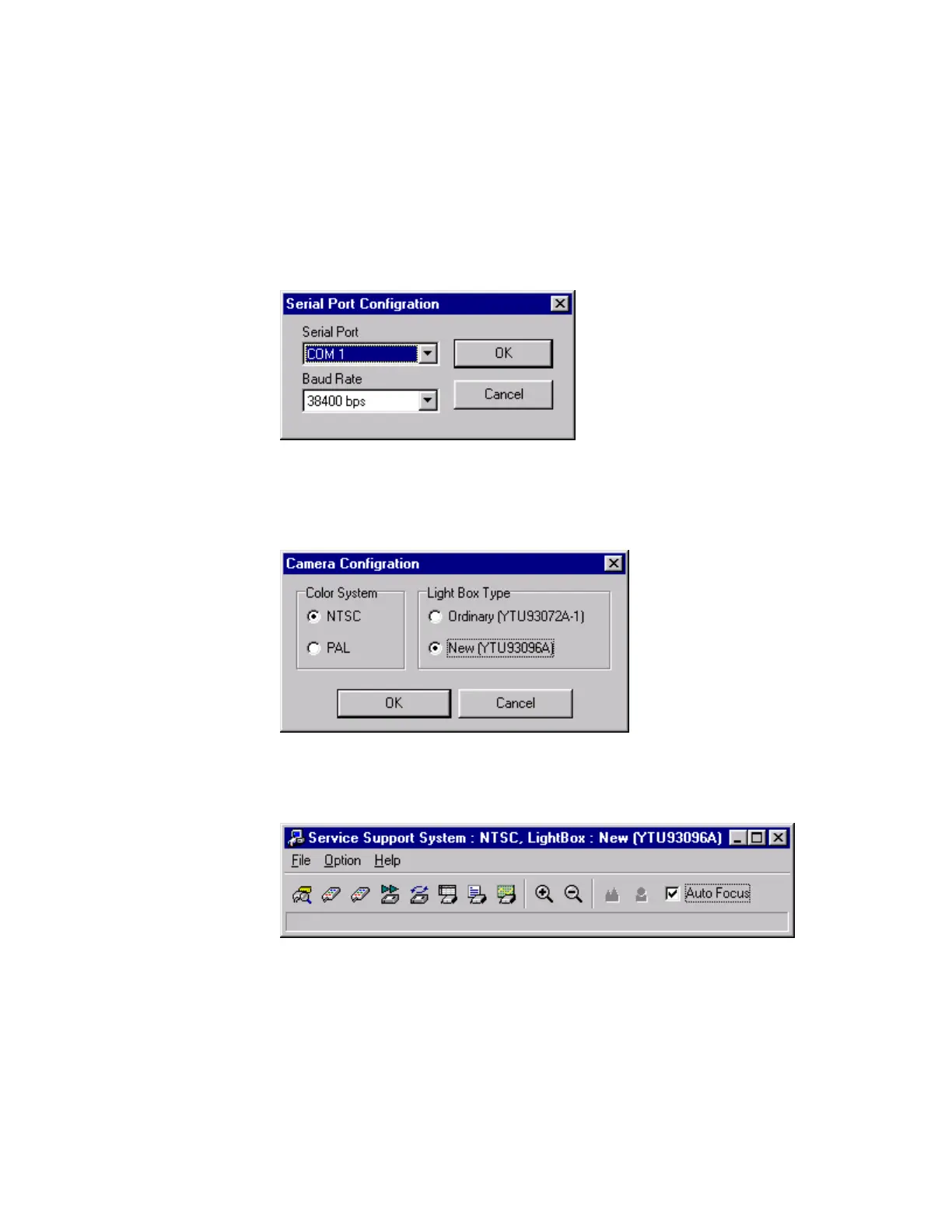

Figure 4 Serial Port Configuration
4. Select the NTSC Color System and New (YTU93096A) Light Box Type in
the Camera Configuration dialog box. Click the OK button.
Figure 5 Camera Configuration
5.
Wait for the software to start. The main program window appears.
Figure 6 Title Bar
To Next Page
