Adjusting the Digital Video Cassette Camera with JVC Service Support System Software
31
2.
The Save As window appears. Click in the text box next to File name:.
Type in a new file name. Most technicians use the camera’s serial number as
the file name. Click the Save button in the Save As window to save the
settings information as a file. The information is saved, and the Save As
window closes.

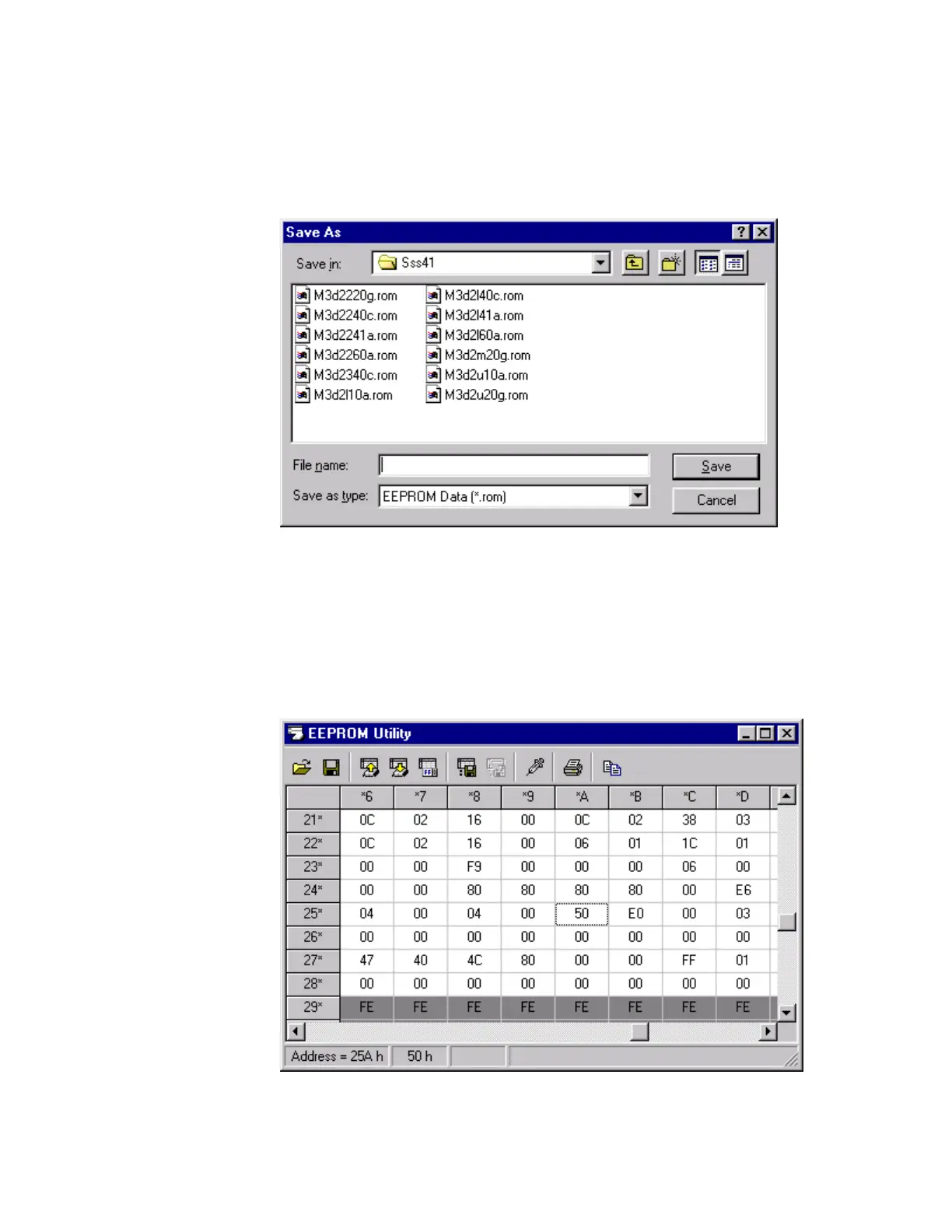

Figure 52 Save As Window
Edit the settings
On some occasions, you may need to edit the camera settings manually.
1. Click on the cell you wish to change. In this case we will change the setting
in cell 25A. Click on cell 25A to select it. You can find cell 25A by looking
at the intersection of row 25* with column *A.
Figure 53 EEPROM Utility Window
