Click the Start button in the Adjustment Utility window. The Confirmation
window appears.

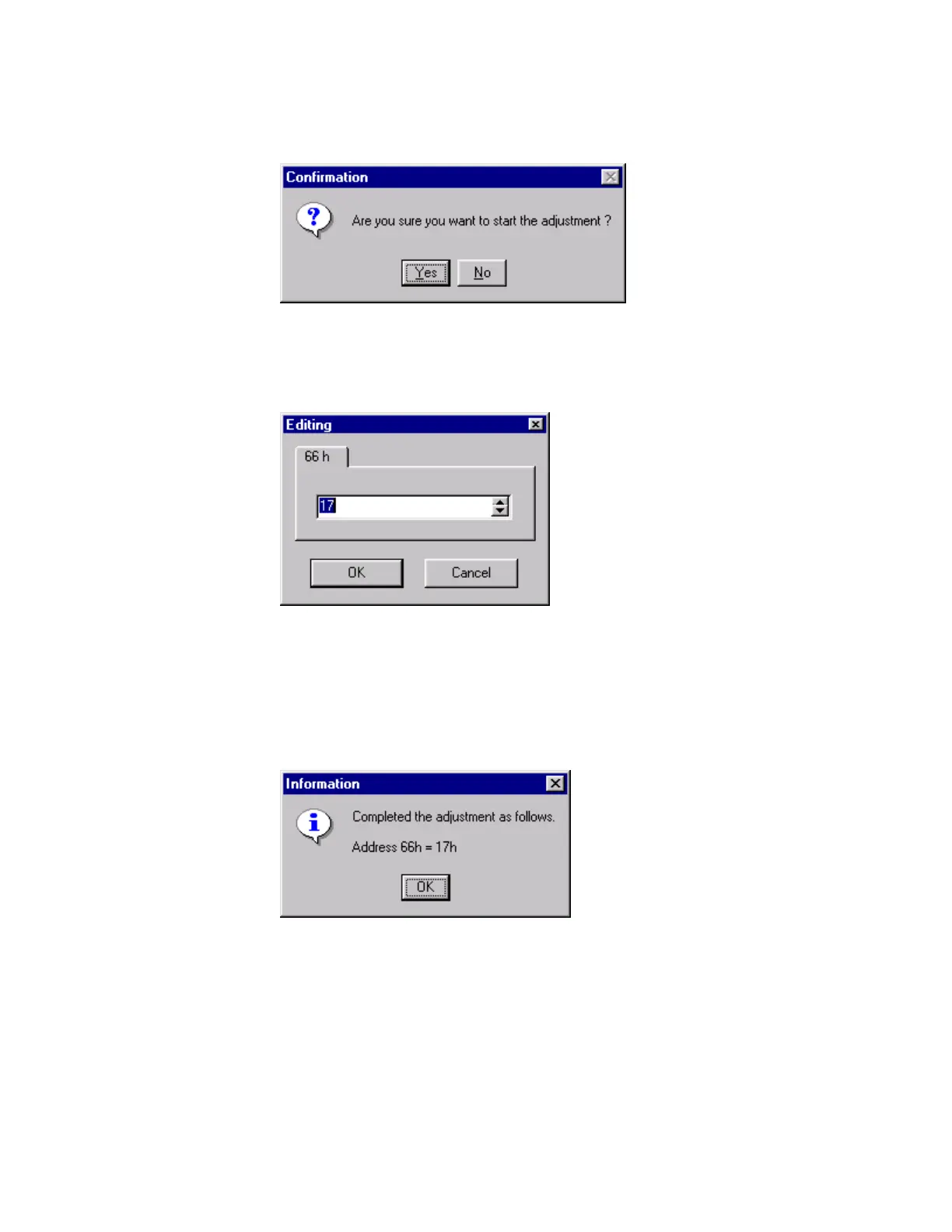

Figure 117 Confirmation Window
7.
Click the Yes button in the Confirmation window. The Editing window
appears.
Figure 118 Editing Window
8. Monitor the amplitude of the signal. Click the Up and Down Arrows in the
Editing window to set the amplitude of the signal to 1.2 ± 0.2 V DC.
9. Then click the OK button in the Editing window. The Information window
appears.
Figure 119 Information Window
10.
Click the OK button in the Information window.
This completes the 81MHz VCO Center Frequency adjustment.
