Digital Video Cassette Technology
90
VCO Center Frequency (ME Tape LP Speed)
1. Select the VCO Center Frequency (ME SP) procedure in the list box.

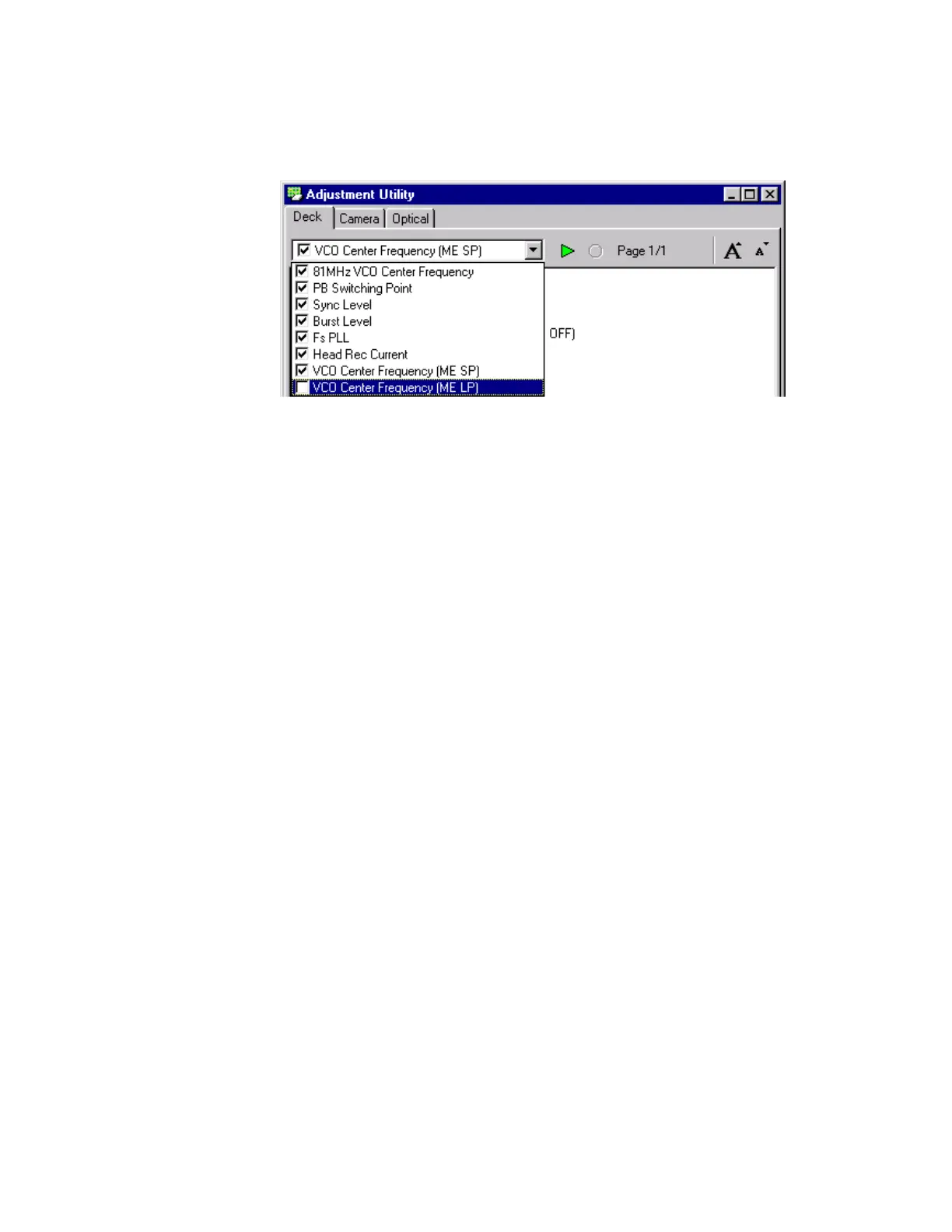

Figure 133 VCO Center Frequency (ME Tape LP Speed)
2.
Read the procedure.
3. Click the FA Camera tab in the Deck Controller window to put the unit in
the Camera mode.
4. Use the Deck Controller window to start recording at the LP Tape Speed.
Continue recording for three or four minutes.
5. Click the FA Deck tab in the Deck Controller window to put the unit in the
Deck mode.
6. Use the Deck Controller window to rewind the tape to the beginning of your
recording. Then play your recording.
7. Click the Start button in the Adjustment Utility window. The Confirmation
window appears.
8. Click the Yes button in the Confirmation window. The adjustment starts.
The first part of the adjustment is performed automatically. View the status
bar on the bottom of the Adjustment Utility window to monitor the
adjustment progress.
9. After completion of the automatic portion of the adjustment the Editing and
the Inspector windows appear.
10. Monitor the Error Count in the Inspector window. Click the Up and Down
Arrows in the Editing window to set the Error Count to the minimum value
for both CH1 and CH2.
11. Then click the OK button in the Editing window. The Information window
appears.
12. Click the OK button in the Information window.
The Error Rate for each head should be below 498.
