Adjusting the Digital Video Cassette Camera with JVC Service Support System Software
85
10.
Use the oscilloscope to observe the signal. Click the Up and Down Arrows
in the Editing window to set the amplitude of the signal to 420 ± 5 mV p -
p, or the value specified in the software.

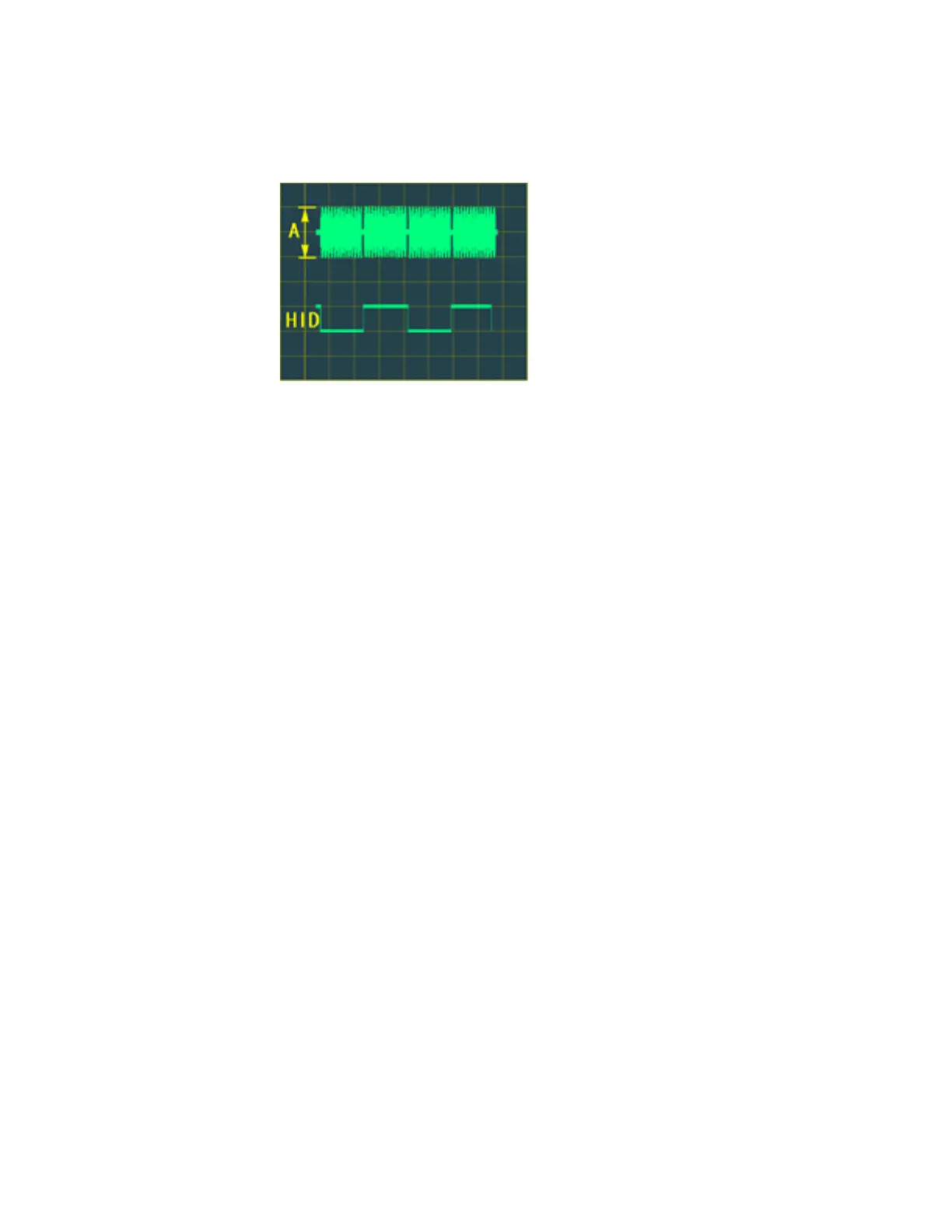

Figure 128 Set the Head Record Current
11.
Hold the Shift key down and click the Up Arrow in the Editing window.
This changes the data by 10h.
12. Click the Recording Log check box in the Deck Controller window to
activate the recording log.
13. Again hold the Shift key down and click the Up Arrow in the Editing
window.
