Adjusting the Digital Video Cassette Camera with JVC Service Support System Software
39
Image Data
1. Click on the Rxd48 tab. The Inspector window displays a graphic of the
camera’s image. Don’t expect too much detail, the image is divided into a
8 x 6 image. You can select either the luminance or each of the colors in the
image.

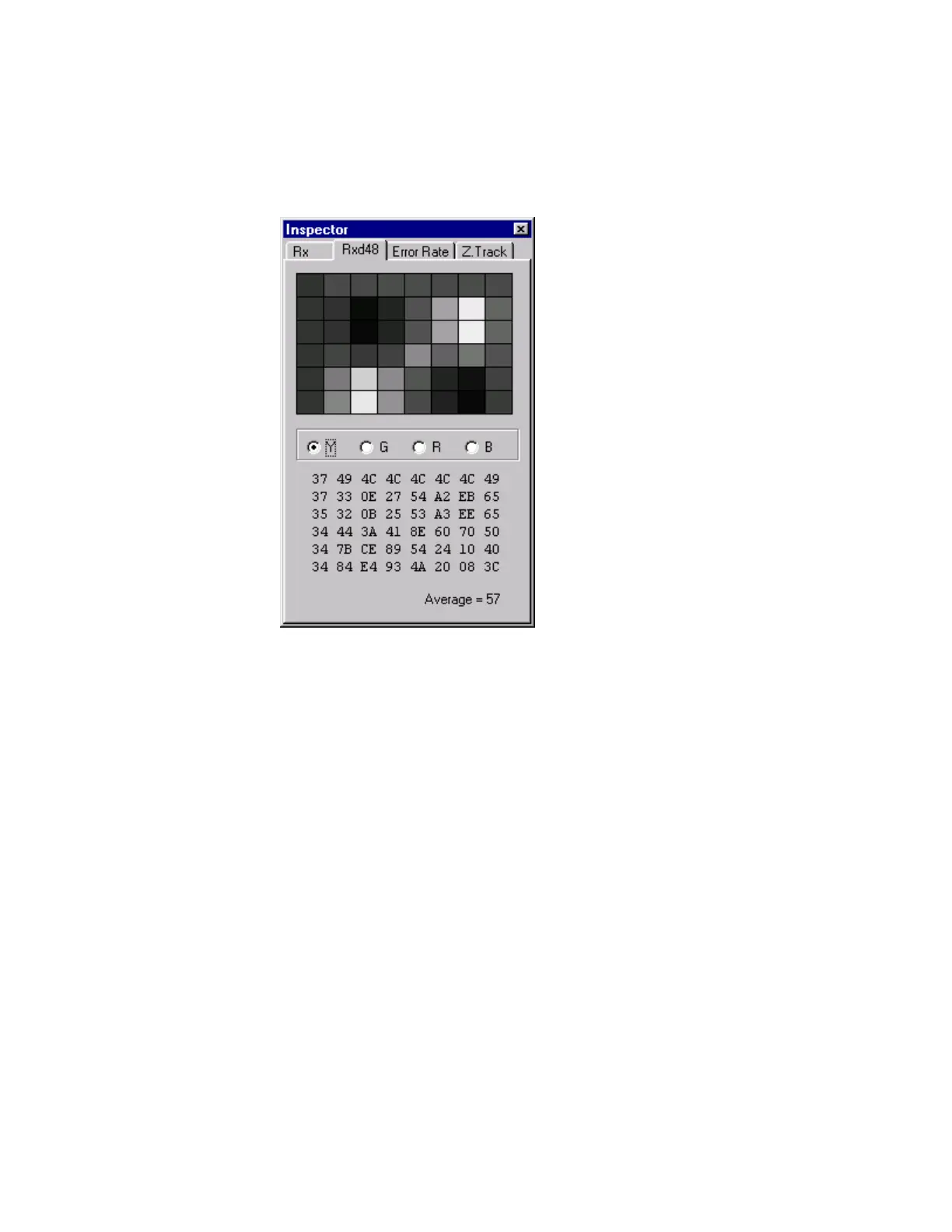

Figure 73 Camera Image
2. Underneath the graphic the Inspector window displays the same image
information, except it is in a numeric format rather than a graphic format.
