Adjusting the Digital Video Cassette Camera with JVC Service Support System Software
47
Zoom Sensor Adjustment
1. Click the Optical tab in the Adjustment Utility window.
2. Select the Zoom Sensor procedure in the list box if it is not already selected.

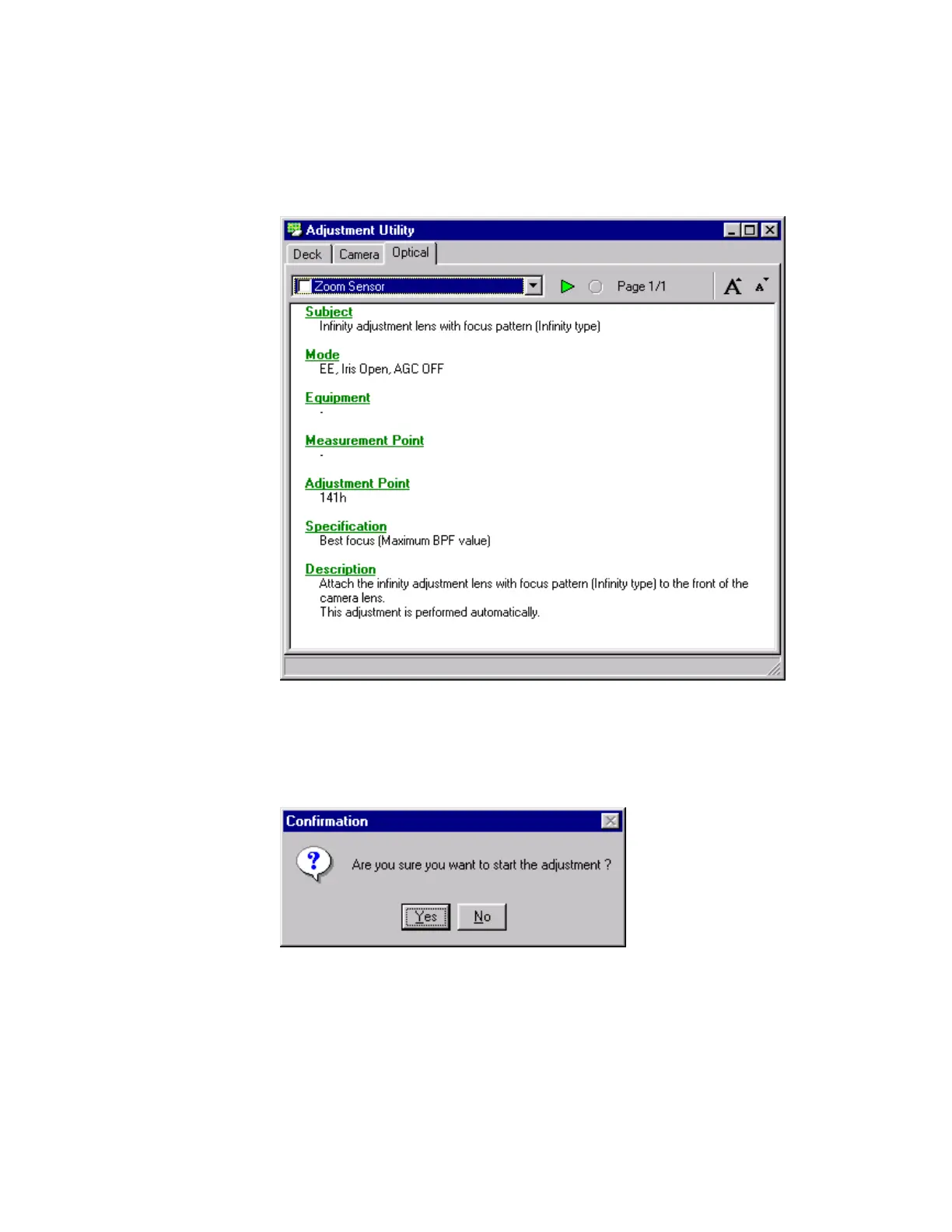

Figure 82 Zoom Sensor Adjustment
3.
Read the procedure.
4. Click the Start button. The Confirmation window appears.
Figure 83 Confirmation Window
5. Click the Yes button in the Confirmation window.
To Next Page
