Digital Video Cassette Technology
10
2.
The Deck Controller window opens.

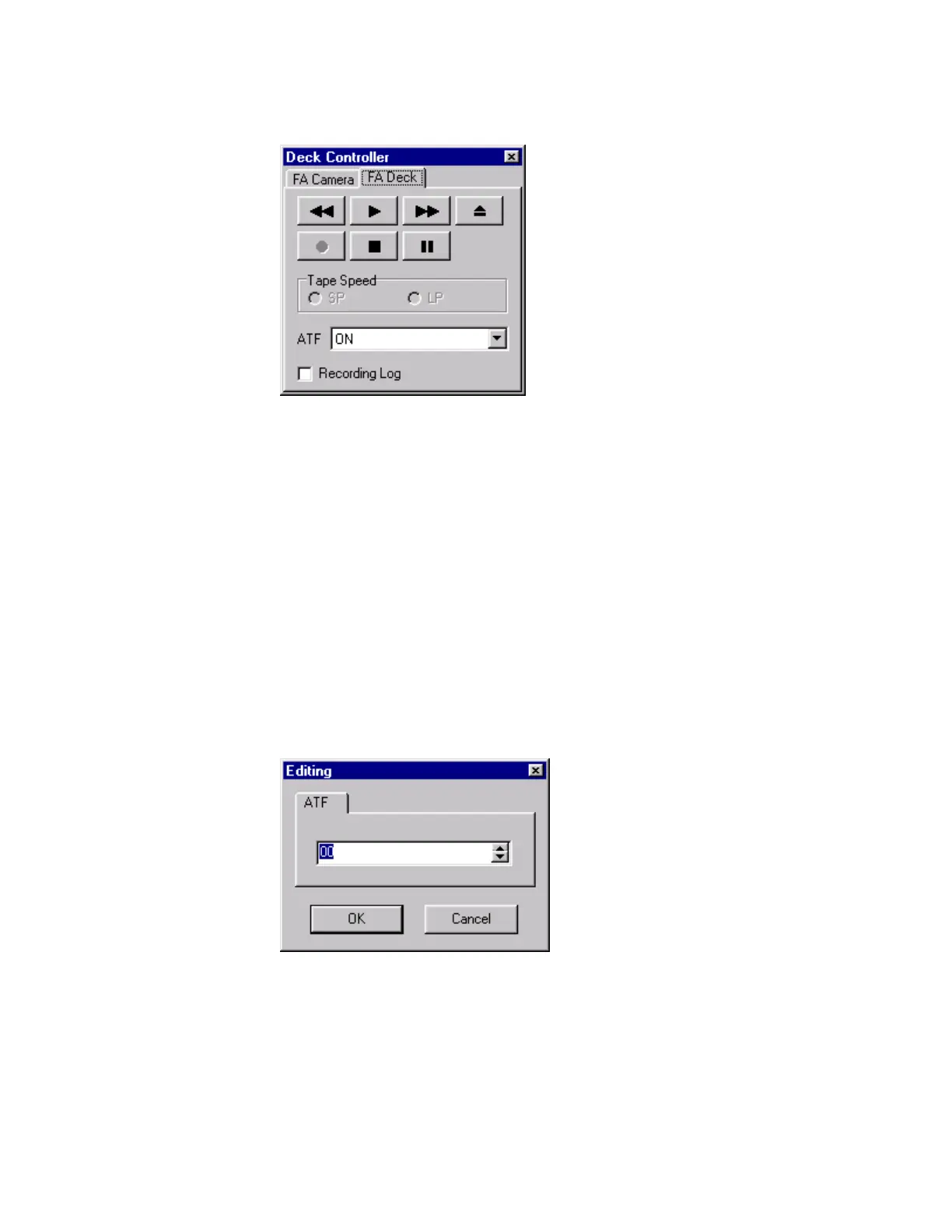

Figure 10 Deck Controller Window
3. Select the FA Deck tab if it is not already selected.
4. Load a previously recorded cassette into the unit. Make sure the Record
Prevention Tab is closed.
5. Use the Deck Controller window as a remote control to operate the unit.
The operation for the Rewind, Play, Fast Forward, Stop and Pause buttons
is the same as the buttons located on the unit itself.
The Eject button operates only when the cassette cover is open.
6. The Deck Controller window allows you to turn off the ATF (Automatic
Tracking). Click the Down Arrow next to ATF and select OFF.
7. The Editing window opens. Hold down the keyboard’s Shift key and click
the Up Arrow in the Editing window five times so the data in the window
changes to 50. Then click the OK button.
Figure 11 ATF Editing Window
8.
Notice that now the video has block noise and the audio is distorted.
