Adjusting the Digital Video Cassette Camera with JVC Service Support System Software
33
2.
The Open window appears. Click the name of the saved file in the list below
Look in: to select it. This should be the serial number of your camera and
the file extension rom. Click the Open button in the Open window.

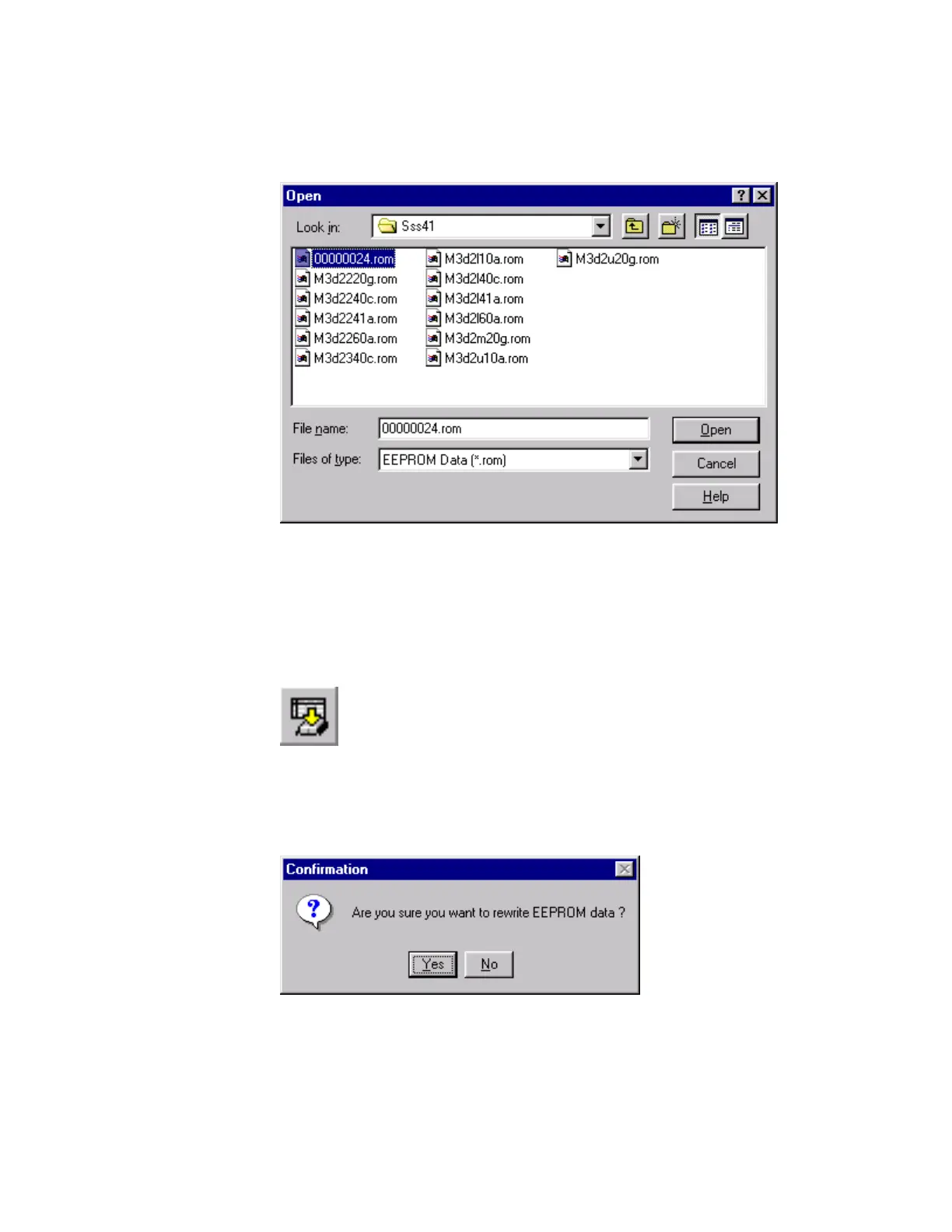

Figure 57 Open Window
3. The Open window disappears and the settings data from the file is loaded
into the EEPROM Utility window.
4. Load the settings information into the unit.
Click the Write button on the EEPROM Utility toolbar.
Figure 58 Write Toolbar Button
5.
Click the Yes button in the Confirmation window. The data from the file is
now in the unit.
Figure 59 Confirmation Window
Compare settings
On some occasions, you may wish to compare the camera settings with the default settings.
