Digital Video Cassette Technology
42
Zoom Tracking Information
You can obtain information about the performance of the camera focus.
1. Turn the camera’s Power Dial to the A position, or to the Camera position
to select the Full Auto mode.
2. Click Z Track tab in the Inspector window.

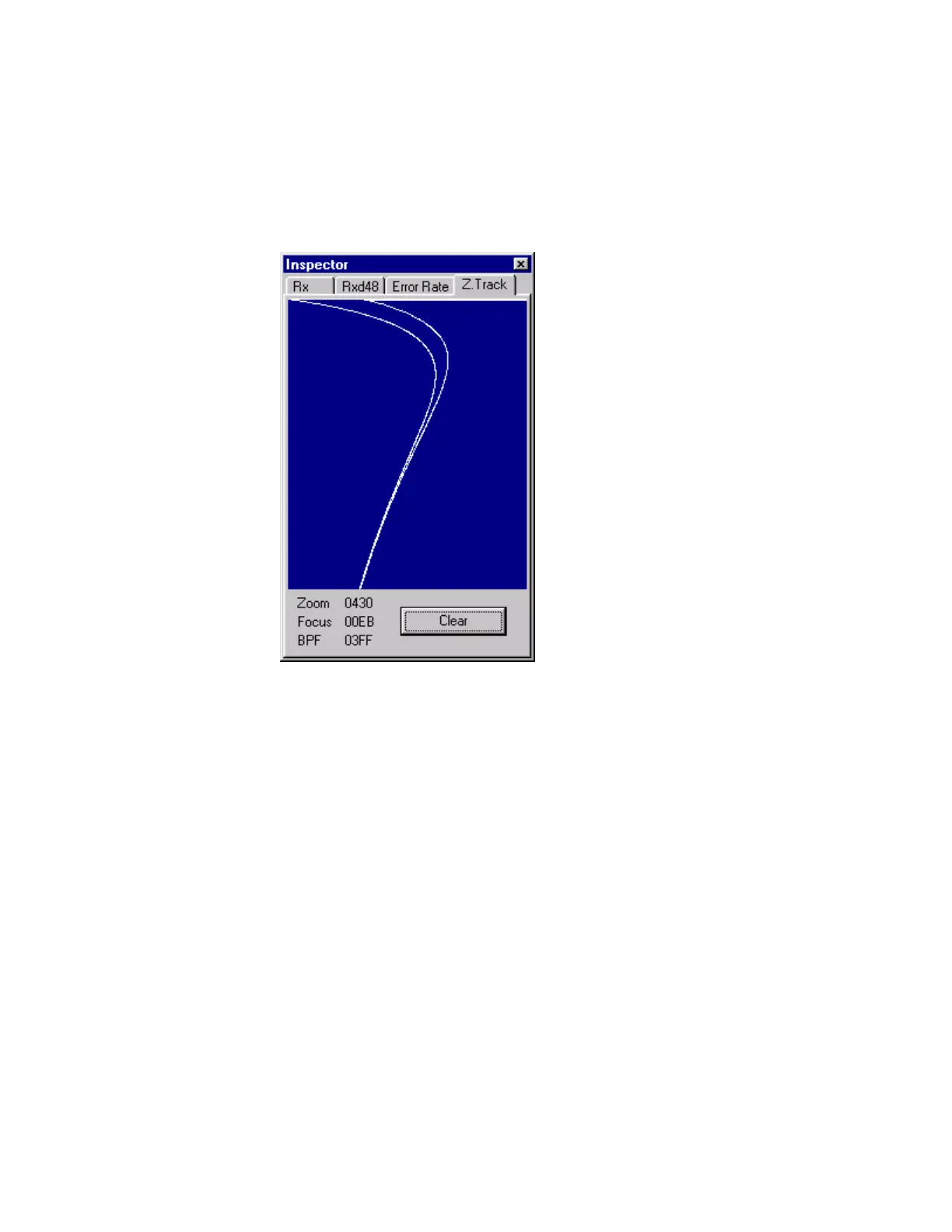

Figure 75 Z Track Window
3. The Z Track window appears.
4. This window indicates the focus position during the zooming operation.
The white line on the left indicates the focus far position.
The white line on the right indicates the focus near position.
The magenta line indicates the focus setting of the camera.
The top on the display indicates the telephoto zoom position.
The bottom of the display indicates the wide angle zoom position.
5. Click the Auto Focus check box to disable the auto focus.
6. Manually adjust the focus and zoom the camera. Observe the Z Track
window. Notice how the magenta line changes with the focus setting.
