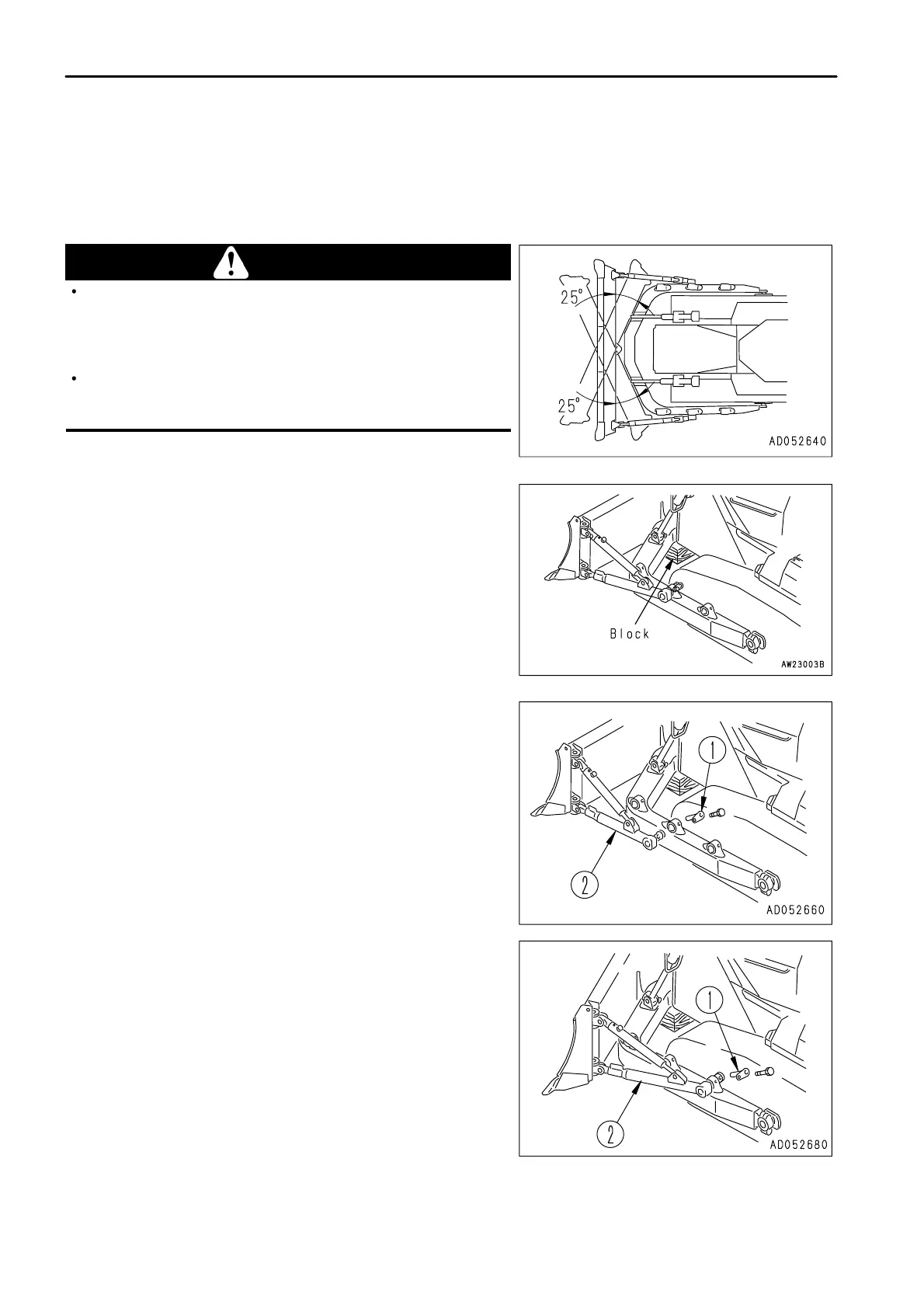

ADJUSTING POSTURE OF WORK EQUIPMENT
METHOD OF ANGLING BLADE
Angledozers only
When dozing toward one side only, operate with angled blade.
WARNING
When adjusting the amount of angling, it is dangerous if the work
equipment is moved by mistake. Set the work equipment in a safe
condition, then stop the engine and lock the work equipment securely
with the safety lever.
Be careful when removing arm (2). After arm (2) is removed, the blade
can move freely.
1.
Raise the blade 300-400 mm above the ground, then put
blocks under the frame so that the blade does not come down.
2.
Remove pins (1) on the left and right sides, then remove arm
(2) from the frame.
3.
Insert arm (2) into the desired position on the bracket on top of
the frame (3 places on each side), and insert pins (1).
3 - 120
