MAINTENANCE
SERVICE PROCEDURE

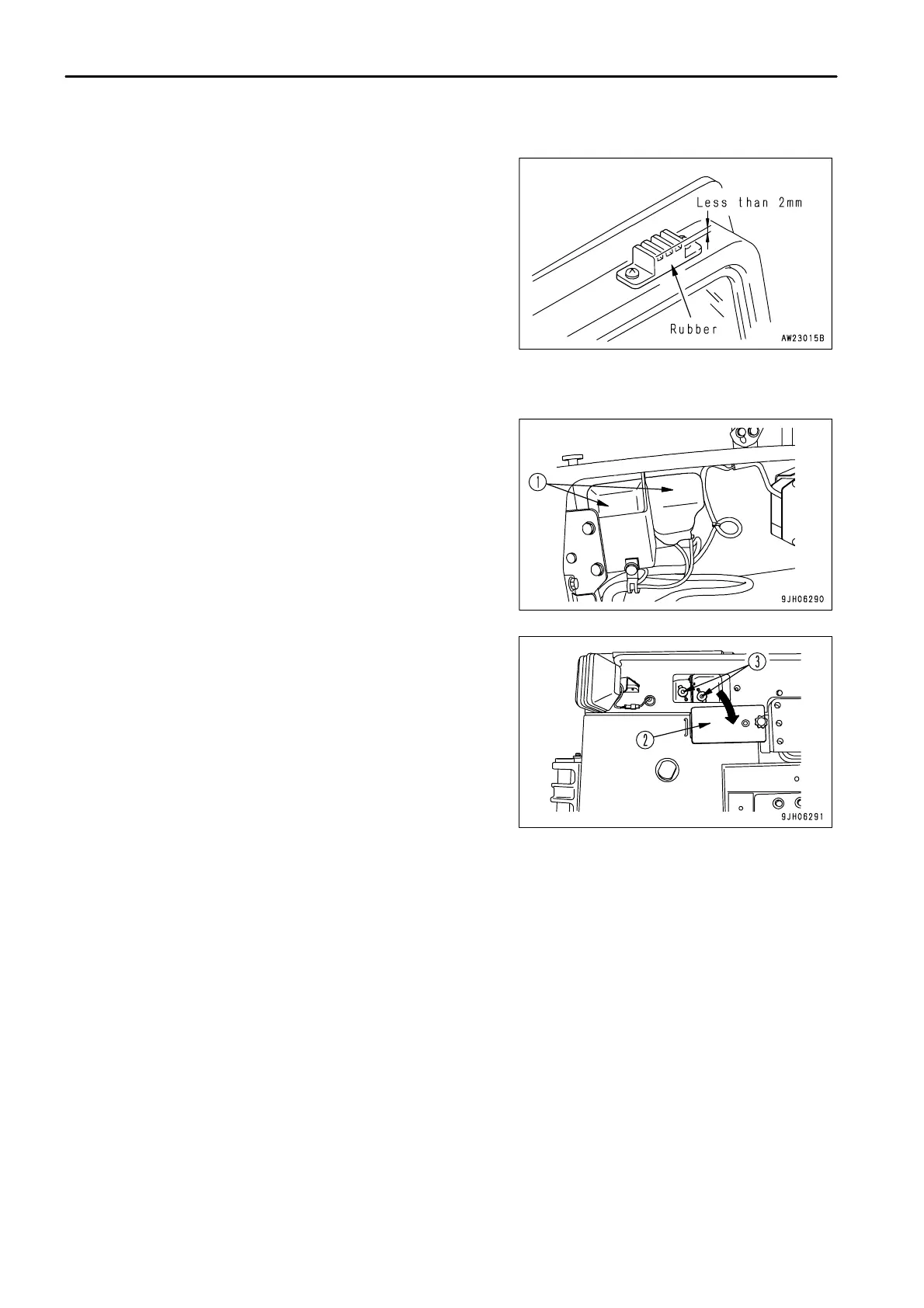

REPLACE DOOR DAMPER
If the depth of the door damper rubber groove is less than 2 mm
(0.08 in), replace the damper.
There are two dampers each at the top and bottom on the left and
right doors.
CHECK WINDOW WASHER FLUID LEVEL, ADD FLUID
Check the fluid level if no window washer fluid is sprayed out.
Open the battery cover at the rear left of the machine and check the
level of the fluid in window washer tank (1). If the level is low,
remove top cover (2) and cap (3), then add automobile window
washer fluid through the filler port.
When adding fluid, be careful not to let any dust get in.
4 - 38
