OPERATION

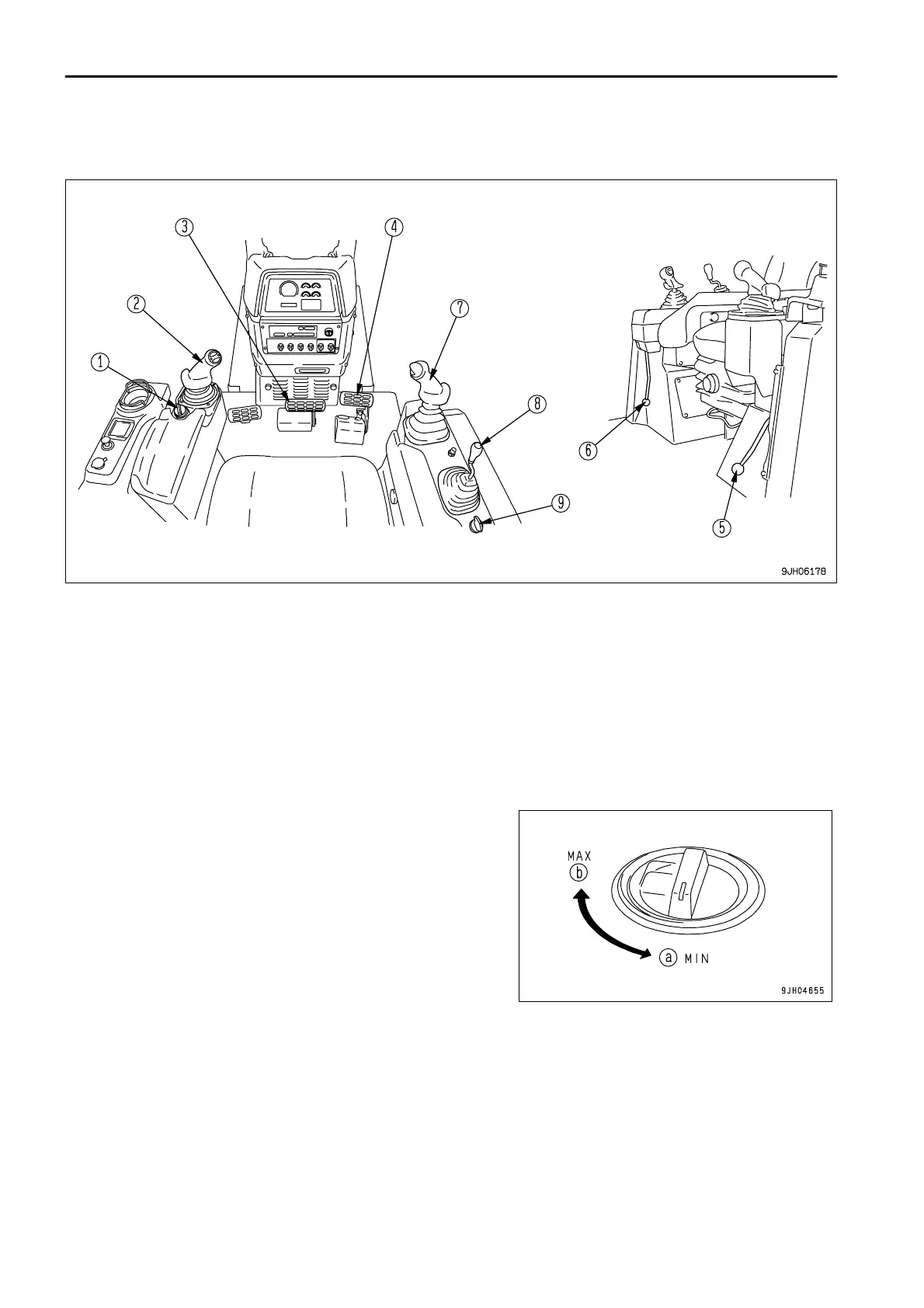

EXPLANATION OF COMPONENTS
CONTROL LEVERS, PEDALS
(1)
(2)
(3)
(4)
(5)
Fuel control dial
Joystick
(steering, directional and gear shift lever)
Brake pedal
Deceleration pedal
Parking lever
(6)
(7)
(8)
(9)
Safety lever
Blade control lever
Ripper control lever (Variable ripper)
Pin puller control switch (giant ripper)
(if equipped)
FUEL CONTROL DIAL
Dial (1) is used to control the engine speed and output.
(a) Low idling position: Turn fully to the left
(b) High idling position: Turn fully to the right
REMARK
When stopping the engine, turn the ignition switch to the OFF
position.
3 - 36
