MAINTENANCE
SERVICE PROCEDURE

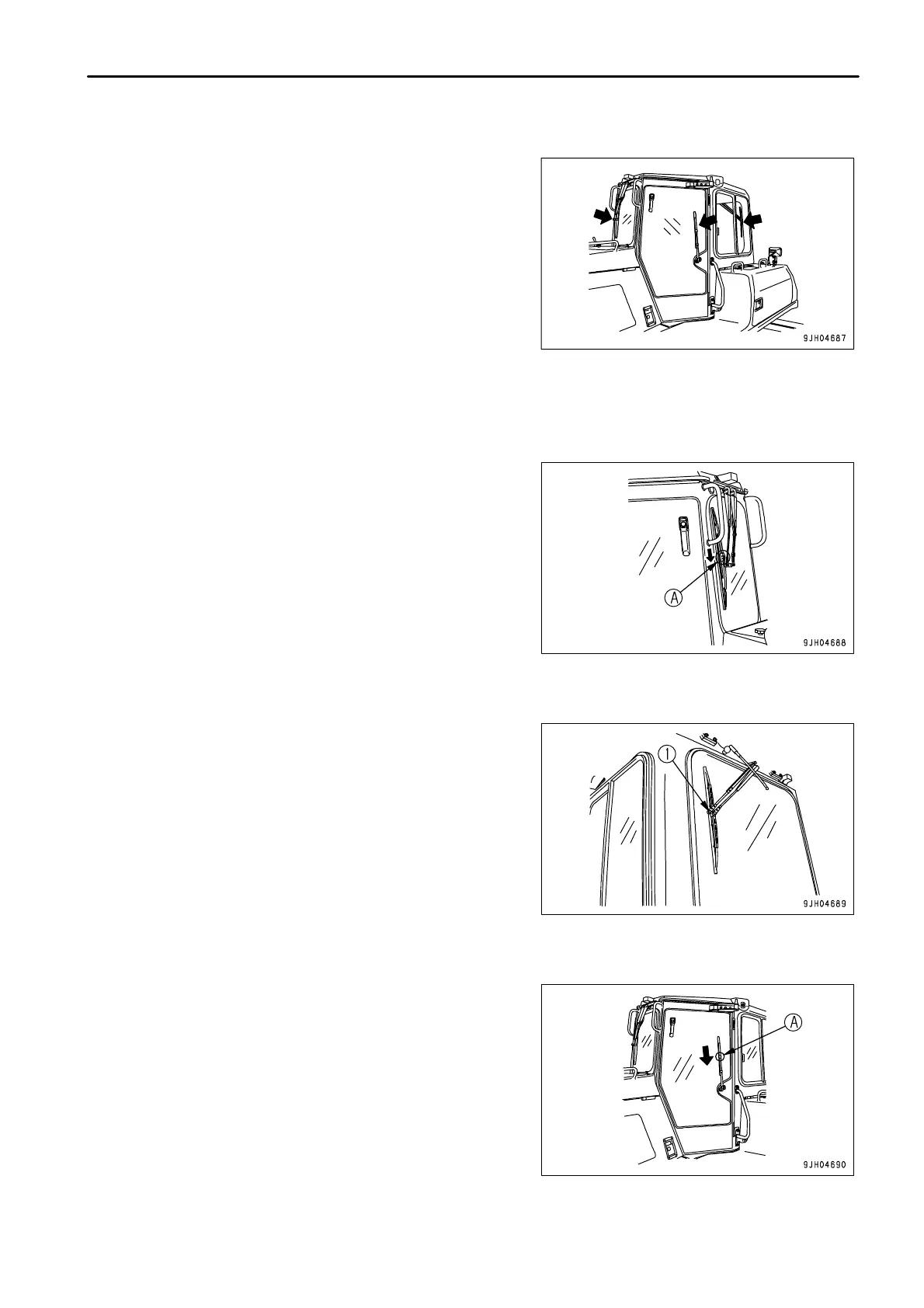

REPLACE WIPER BLADE
If the blade is damaged, it will not wipe the window clean, so
replace the blade.
REPLACEMENT
FRONT, REAR WIPER
1. It is hooked at portion (A), so move the blade in the direction of
the arrow to remove it.
2.
Install the new blade and hook it securely.
REAR WIPER
1. Remove E-ring (1).
The blade can then be removed.
2.
Install a new blade, then install securely with E-ring (1).
DOOR WIPER
1. It is hooked at portion (A), so move the blade in the direction of
the arrow to remove it.
2.
Install the new blade and hook it securely.
4 - 39
