MAINTENANCE
SERVICE PROCEDURE
REPLACE POWER TRAIN OIL FILTER ELEMENT
1.

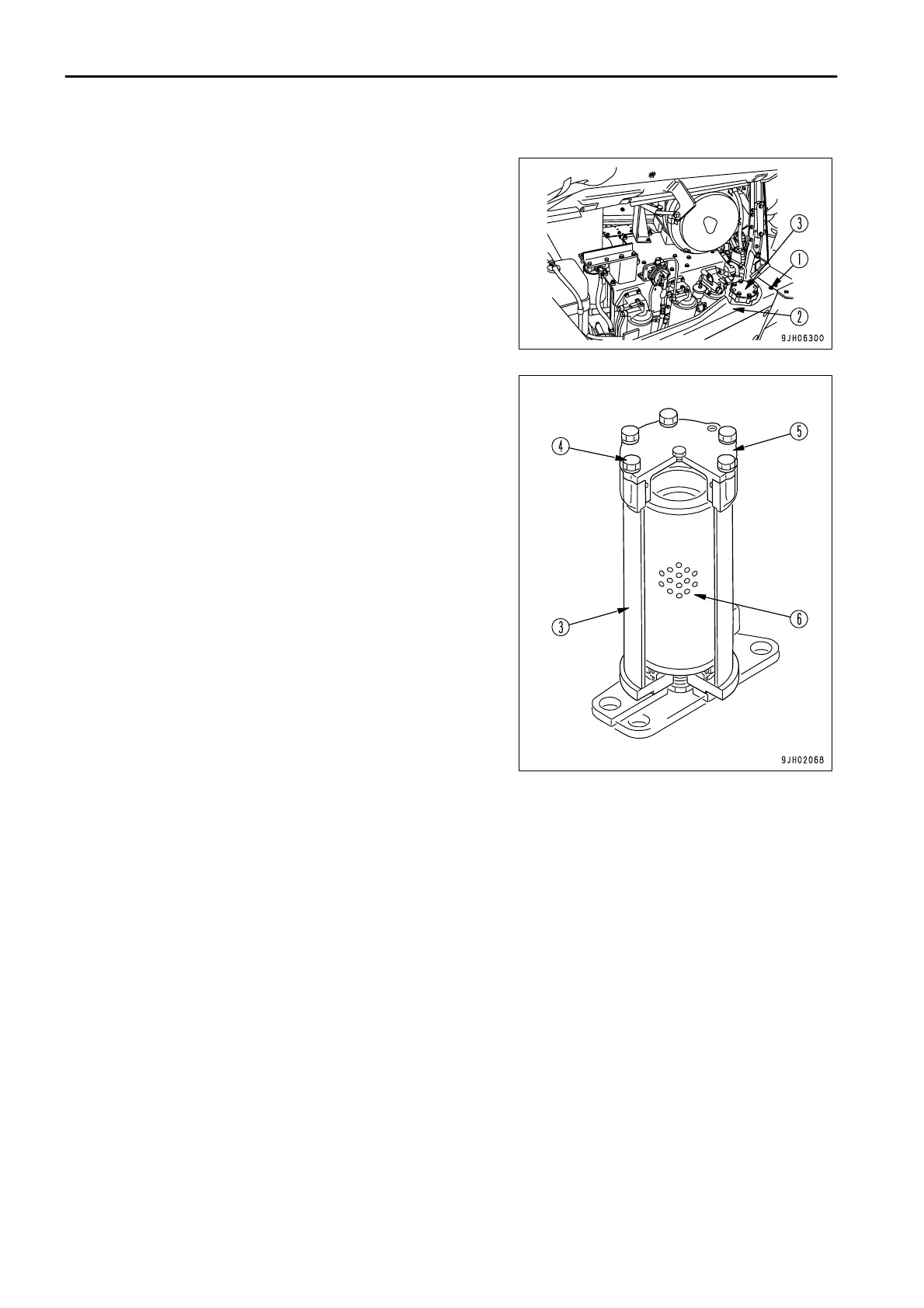

Open the engine side cover at the left side of the machine,
remove bolt (1) then open cover (2) to the outside using the
bottom hinged as a pivot.
2.
Remove mounting bolt (4) of filter (3), then remove cover (5).
3. Take out element (6).
4.
Clean the removed parts and the inside of the case, then install
a new element.
Use Komatsu genuine element.
5.
Close cover (2) and tighten bolt (1), then close the engine side
cover at the left side of the machine.
