OPERATION
GENERAL VIEW

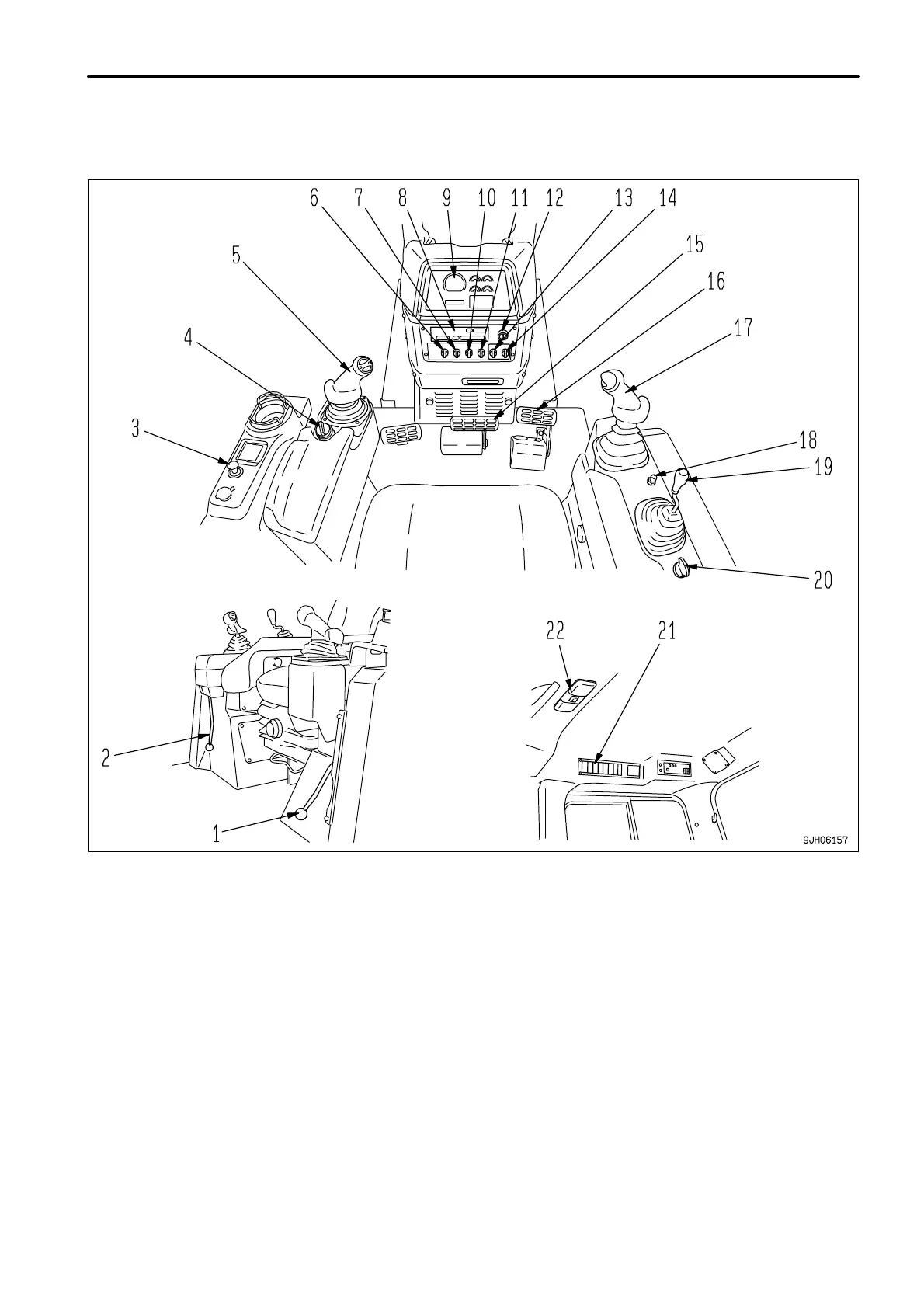

GENERAL VIEW OF CONTROLS AND GAUGES
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
Parking lever
Safety lock lever
Cigarette lighter
Fuel control dial
Joystick
(Steering, directional and gear shift lever)
Auto shift down switch
Head lamp switch
Air conditioner panel or heater panel
Display panel A (Speed range, Engine speed)
Rear lamp switch
Fan rotation selector switch
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
Starting switch
Information switch
Buzzer cancel switch
Brake pedal
Deceleration pedal
Blade control lever
Horn switch
Ripper control lever
Pin puller control switch (if equipped)
Wiper switch
Room lamp switch
