MAINTENANCE
SERVICE PROCEDURE
CHECK TRACK TENSION
The wear of pins and bushings on the undercarriage will vary with the working conditions and types of soil. It is thus
necessary to continually inspect the track tension so as to maintain the standard tension.
Carry out the check and adjustment under the same conditions as when operating (on jobsites where the track
becomes clogged with mud, measure with the track clogged with mud).
INSPECTION

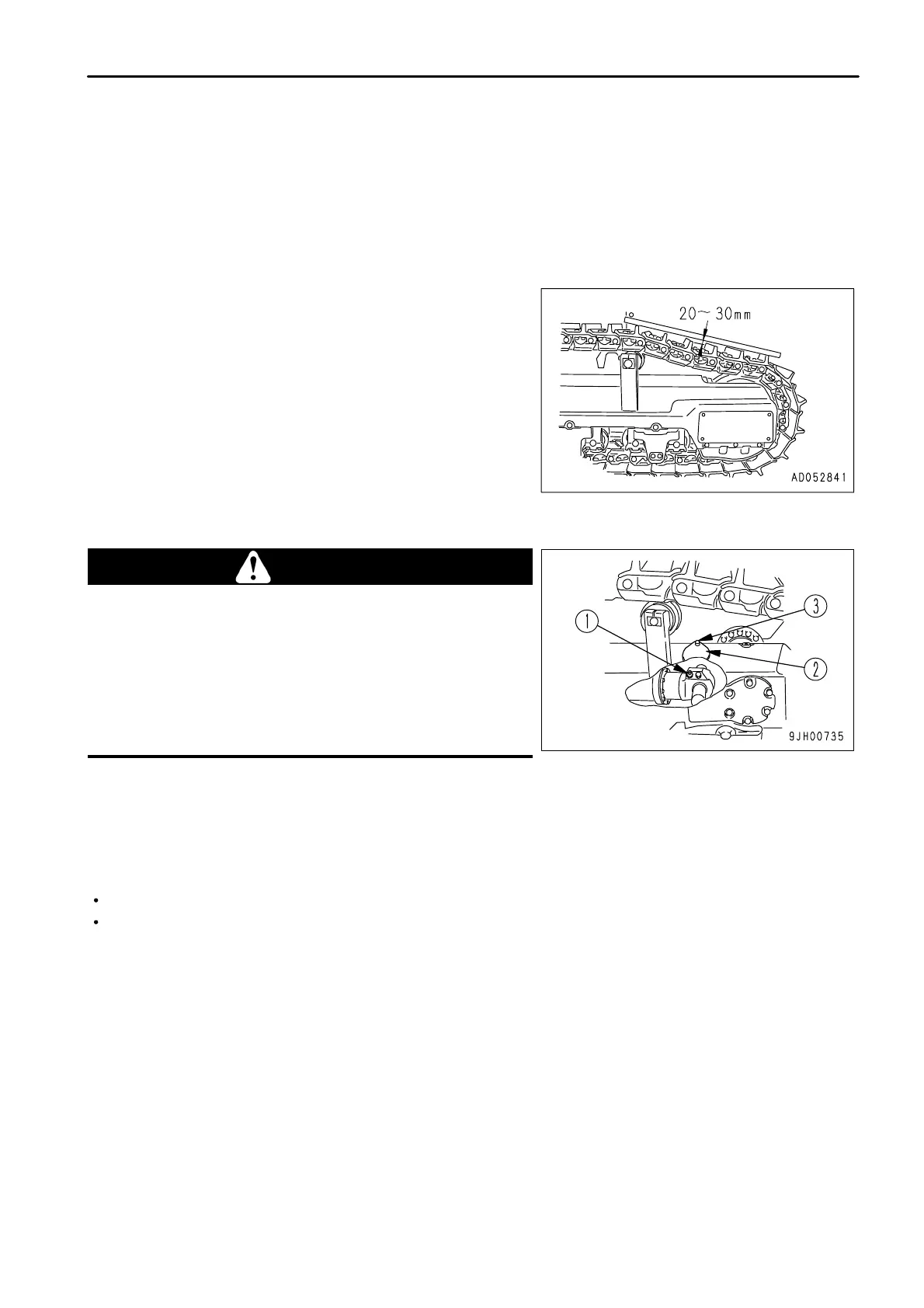

Stop the machine on level ground (stop with the transmission in
FORWARD without applying the brake). Then place a straight bar
on the track shoes between the carrier roller and the idler as shown
in the figure, and measure the clearance between the bar and the
grouser at the midpoint. If the clearance (A) is 20 to 30mm (0.79 to
1.18in), the tension is standard.
If the track tension is not at the standard value, adjust it in the
following manner.
ADJUSTMENT
WARNING
Grease inside the adjusting mechanism is under high pressure. Grease
coming from plug (1) under pressure can penetrate the body, causing
injury or death. For this reason, do not loosen plug (1) more than one turn.
Do not loosen any part other than plug (1). Furthermore, do not bring your
face in front of the plug (1).
If the track tension is not relieved by this procedure, please contact your
Komatsu distributor for repairs.
WHEN INCREASING TENSION
1.
Remove 2 bolts (3), then remove cover (2).
NOTICE
The safety label is stuck on the back of cover (2), so be careful not to damage the safety label.
When removing cover (2), be careful not to let any dirt or soil get in.
2.
Pump in grease through the grease fitting with a grease pump.
3. To check that the correct tension has been achieved, move the machine backwards and forwards.
4.
Check the track tension again, and if the tension is not correct, adjust it again.
4 - 25
