MAINTENANCE
SERVICE PROCEDURE

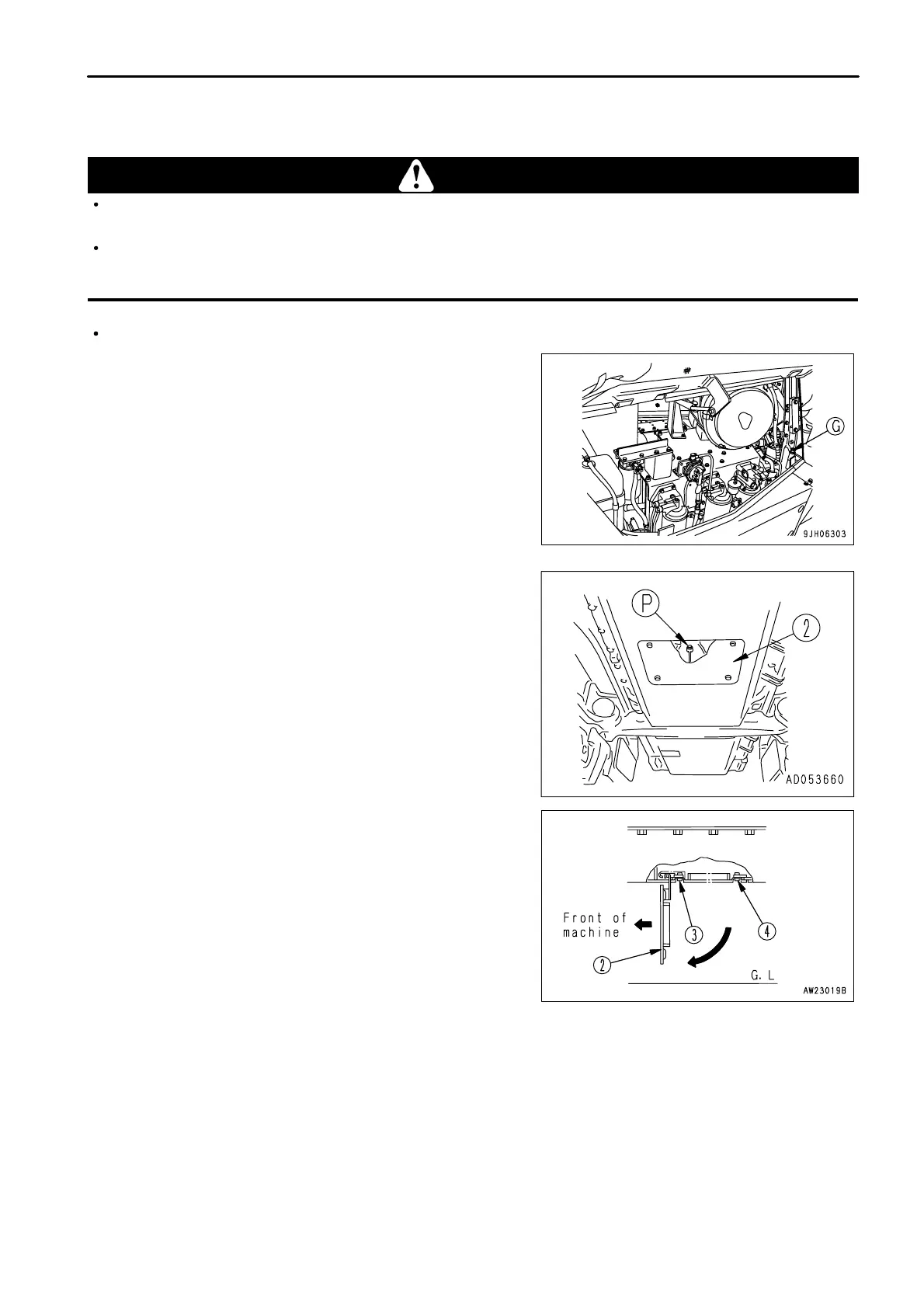

CHANGE OIL IN DAMPER CASE, CLEAN DAMPER BREATHER
WARNING
The oil is at high temperature immediately after the machine has been operated.Wait for the oil to cool down before carrying
out maintenance.
The undercover is heavy. Do not go directly under the cover when opening or closing it. When removing bolts (4), carry out the
operation at the rear of the point immediately under the cover so that it is possible to escape at any time.
Refill capacity: 1.5 liters ( 0.40 US gal)
1.
Open the engine side cover at the left of the machine; you can
see gauge (G).
2.
Remove the undercover (2) at the bottom rear of the chassis as
follows.
1)
Remove 2 bolts (3) at the front of the chassis.
2)
Hold down cover (1) and remove 2 bolts (4) at the machine
rear end gradually. (Rainwater or other accumulated water
may flow out, so be careful.)
4 - 69
