SERVICE WORK ON THE CHASSIS 13

137

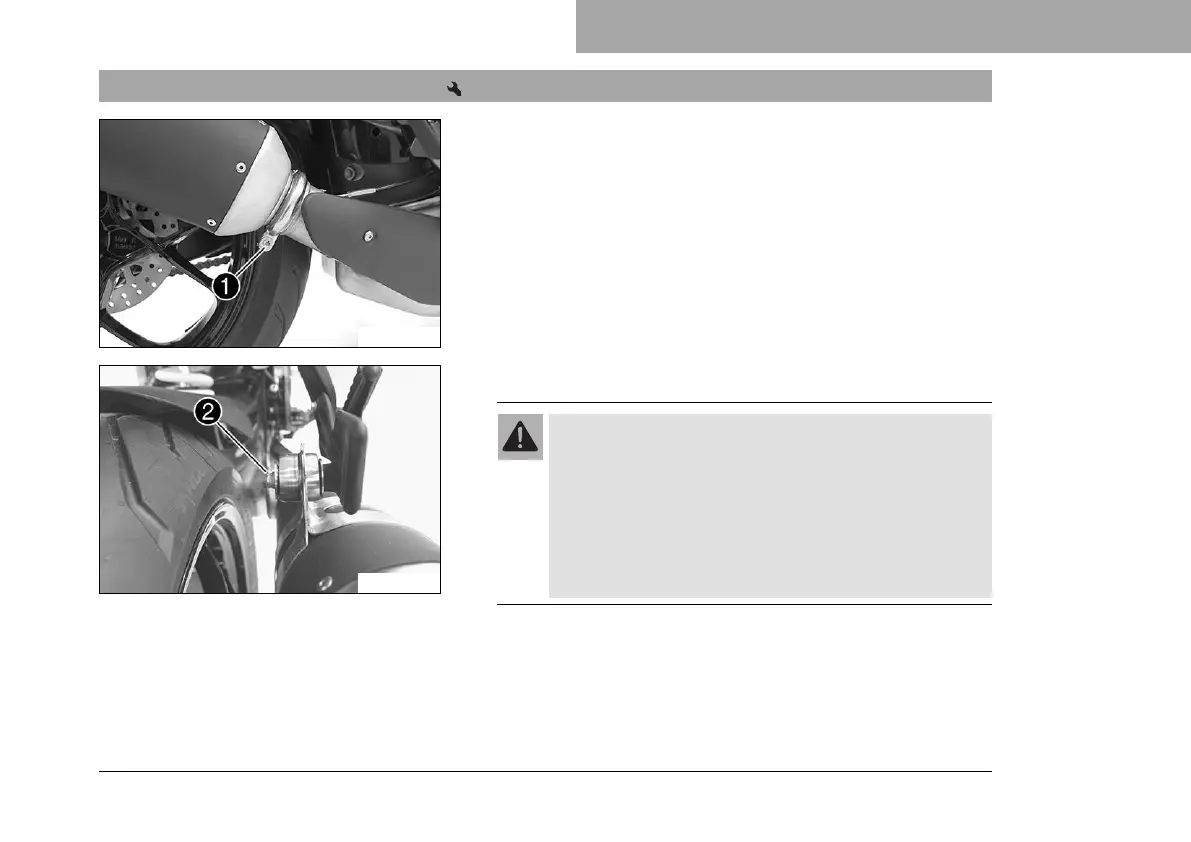

13.11 Removing the main silencer

H01297-10

–

Remove screw

– Take off the exhaust clamp.

R00006-10

–

Remove screw

Warning

Risk of injury Moving parts of the exhaust valve con-

stitute a risk of injury.

– Do not touch the exhaust valve if the main silencer

has been removed.

– Make sure that nobody gets caught when the

exhaust valve is actuated.

– Take off the main silencer.
