KTM 1290 Super Duke GT 2018 User Manual

WHEELS, TIRES 15
179
E00163-11
–

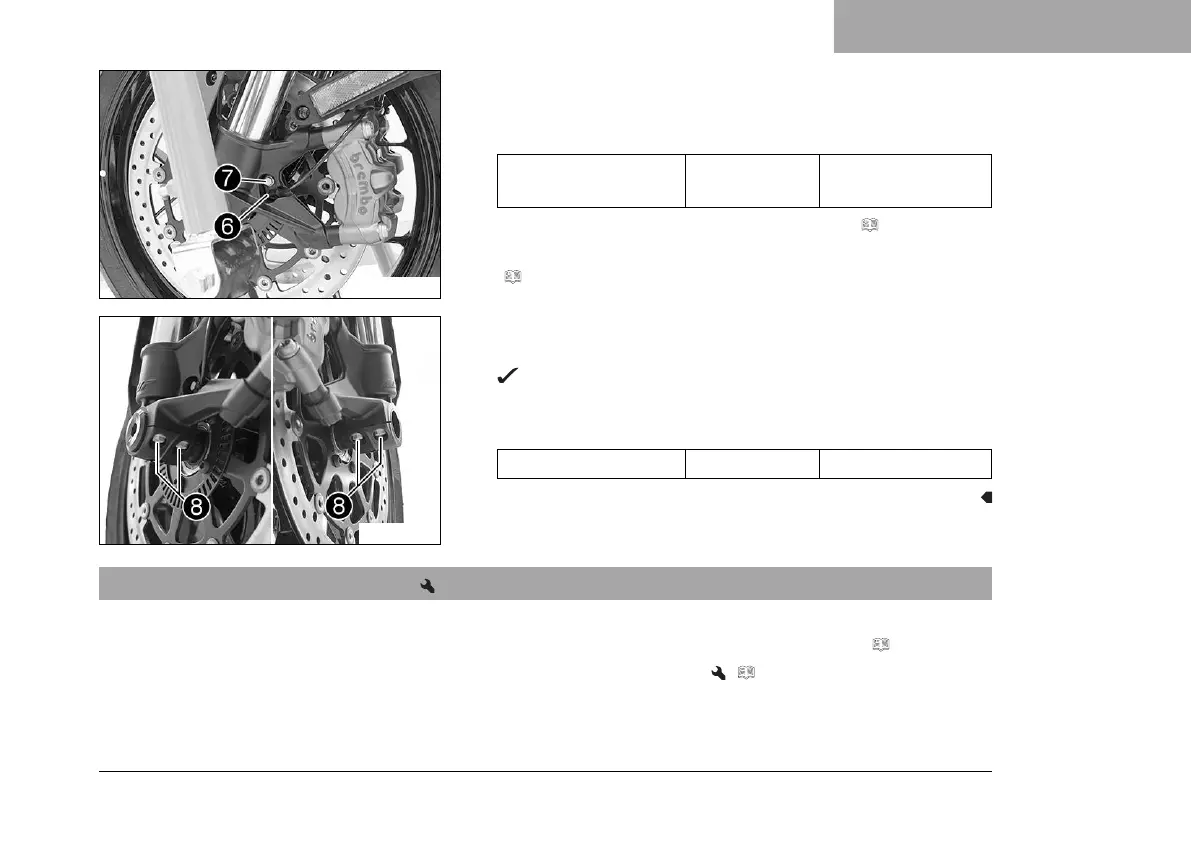

Position wheel speed sensor
6
in the drill hole.
–
Mount and tighten screw
7
.
Guideline
Screw, front wheel
speed sensor
M6 4 Nm (3 lbf ft)
– Take the motorcycle off the front lifting gear. ( p. 131)
– Remove the rear of the motorcycle from the lifting gear.
( p. 129)
S01144-10
– Operate the front brake and compress the fork a few times
firmly.
The fork legs straighten.
–
Tighten screws
8
.
Guideline
Screw, axle clamp M8 15 Nm (11.1 lbf ft)
15.3 Removing the rear wheel
Preparatory work
– Raise the motorcycle with the rear lifting gear. ( p. 129)
– Remove the main silencer. ( p. 137)
