KTM 1290 Super Duke GT 2018 User Manual
4
of 1
of 1 rating
293 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
ELECTRIC
AL
SYSTEM
16
221
16.15
ACC1
and
ACC2
rear
P00147-10

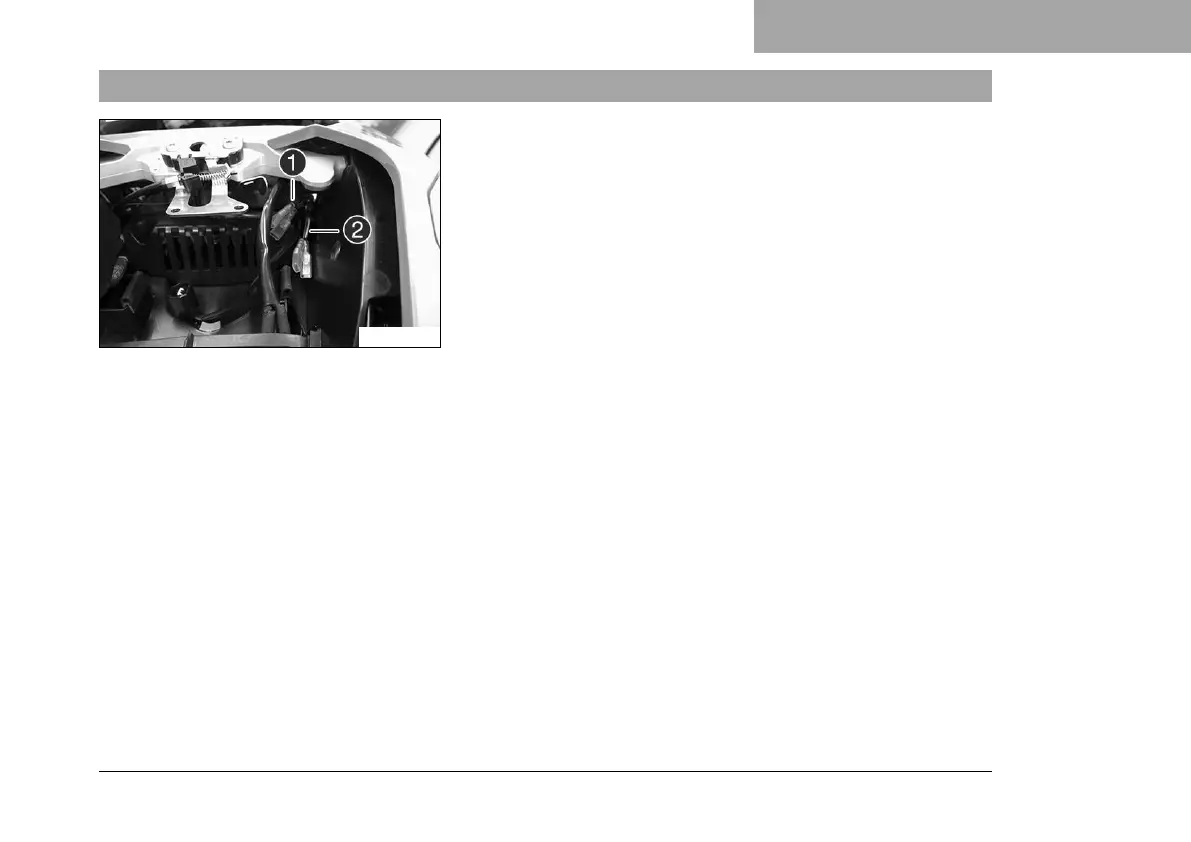

The
rear
power
su
pplies
ACC1
1
and
ACC2
2
are
located
on
the
right
next
to
th
e
passenger
sea
t
lock.
222
224
Table of Contents
Default Chapter
5
Table of Contents
5
1 Means of Representation 1
11
Symbols Used
11
Formats Used
12
2 Safety Advice 2
13
Use Definition - Intended Use
13
Misuse
13
Degrees of Risk and Symbols
14
Tampering Warning
15
Safe Operation
15
Protective Clothing
17
Work Rules
17
Environment
18
Owner's Manual
18
3 Important Notes 3
19
Manufacturer and Implied Warranty
19
Operating and Auxiliary Substances
19
Spare Parts, Accessories
19
Service
20
Figures
20
Customer Service
20
4 View of Vehicle
22
View of Vehicle, Front Left (Example)
22
View of Vehicle, Rear Right (Example)
24
5 Serial Numbers
26
Chassis Number
26
Type Label
26
Key Number
27
Engine Number
27
Fork Part Number
28
Shock Absorber Article Number
28
Steering Damper Article Number
29
6 Controls
30
Clutch Lever
30
Hand Brake Lever
30
Throttle Grip
31
Switches on the Left Side of the Handlebar
31
Combination Switch, Left Side
31
Light Switch
32
Hazard Warning Flasher Switch
33
Menu Switch
34
Turn Signal Switch
34
Horn Button
35
Switches on the Right Side of the Handlebar
36
Combination Switch, Right
36
Emergency off Switch
37
Switch for the Cruise Control System
37
Upper Button of the Cruise Control System
40
Lower Button of the Cruise Control System
41
Electric Starter Button
42
Locking the Steering
42
Unlocking the Steering
43
Socket for Electrical Accessories
44
Ignition/Steering Lock
44
Immobilizer
45
Opening the Filler Cap
46
Closing the Filler Cap
48
Seat Lock
50
Tool Set
50
Grab Handle
51
Case Holders
51
Passenger Footrests
52
Shift Lever
53
Foot Brake Lever
54
Side Stand
54
7 Combination Instrument
56
Overview
56
Activation and Test
56
Matrix Display
57
Segment Display
58
Fuel Level Display
59
Indicator Lamps
60
Message on the Matrix Display
62
Shift Warning Light
64
Service Display
65
Matrix Display Menu
66
Favorites
66
Trip 1
66
Trip 2
67
General Info
68
Tpms
69
Set Favorites
70
Settings
71
Warning
71
Heating
72
Mtc/Abs
72
Load
74
Damping
74
Drive Mod
75
Menu Overview
76
Language
77
Distance
78
Temp
78
Pressure
79
Fuel Cons
79
Clock/Date
80
Shift Light
80
Heat Grip
81
Clighttest
82
Drl
83
Quick Shift
84
8 Ergonomics 8
85
Handlebar Position
85
Adjusting the Handlebar Position
85
Adjusting the Steering Angle
89
Adjusting the Windshield
90
Adjusting the Basic Position of the Clutch Lever
92
Adjusting the Basic Position of the Hand Brake Lever
93
Adjusting the Basic Position of the Foot Brake Lever
94
Setting the Step Plate of the Foot Brake Lever
95
Checking the Basic Position of the Shift Lever
96
Adjusting the Basic Position of the Shift Lever
97
Setting the Shift Lever Stub
98
9 Preparing for Use 9
99
Advice on Preparing for First Use
99
Running in the Engine
101
Loading the Vehicle
101
10 Riding Instructions
104
Checks and Maintenance Measures When Preparing for Use
104
Starting the Vehicle
105
Starting off
107
Start off with HHC (Option: Hill-Start Assist)
108
Quickshifter
109
Shifting, Riding
110
MSR (Option: Engine Braking Control)
116
Applying the Brakes
117
Stopping, Parking
119
Transporting
121
Refueling
122
11 Service Schedule 11
125
Additional Information
125
Required Work
125
Recommended Work
128
12 Suspension Setting 12
129
Fork/Shock Absorber
129
Load
129
Damping
130
13 Service Work on the Chassis 13
131
Raising the Motorcycle with the Rear Lifting Gear
131
Removing the Rear of Motorcycle from the Lifting Gear
131
Lifting the Motorcycle with the Front Lifting Gear
132
Taking the Motorcycle off the Front Lifting Gear
133
Removing the Passenger Seat
134
Mounting the Passenger Seat
135
Removing the Front Rider's Seat
135
Mounting the Front Rider's Seat
137
Removing the Windshield
138
Installing the Windshield
138
Removing the Main Silencer
139
Installing the Main Silencer
140
Checking the Chain for Dirt
142
Cleaning the Chain
142
Checking the Chain Tension
144
Adjusting the Chain Tension
146
Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide
147
Checking/Correcting the Fluid Level of the Hydraulic Clutch
152
Removing the Tank Spoiler
155
Installing the Tank Spoiler
156
Removing Front Fender
158
Installing Front Fender
158
Cleaning the Dust Boots of the Fork Legs
159
14 Brake System 14
161
Antilock Brake System (ABS)
161
Checking the Brake Discs
165
Checking the Front Brake Fluid Level
166
Adding Front Brake Fluid
167
Checking the Front Brake Linings
170
Checking the Rear Brake Fluid Level
171
Adding Rear Brake Fluid
172
Checking the Brake Linings of the Rear Brake
174
15 Wheels, Tires
176
Removing the Front Wheel
176
Installing the Front Wheel
178
Removing the Rear Wheel
181
Installing the Rear Wheel
183
Checking the Tire Condition
186
Checking the Tire Air Pressure
188
16 Electrical System
190
Daytime Running Light (DRL)
190
Cornering Headlight
191
Removing the Battery
192
Installing the Battery
194
Recharging the Battery
197
Changing the Main Fuse
202
Changing the Fuses in the Fuse Box
204
Changing the Headlight Bulb
207
Checking the Setting of the Lighting System
209
Adjusting the Headlight Range
212
Adjusting the Cornering Light Range
213
Activating/Deactivating the Ignition Key
216
Diagnostics Connector
222
Front ACC1 and ACC2
222
ACC1 and ACC2 Rear
223
17 Cooling System
224
Checking the Coolant Level in the Compensating Tank
224
Correcting the Coolant Level in the Compensating Tank
226
18 Engine Tuning
228
Drive Mod
228
Motorcycle Traction Control (MTC)
229
19 Service Work on the Engine
230
Checking the Engine Oil Level
230
Changing the Engine Oil and Oil Filter, Cleaning the Oil Screens
231
Adding Engine Oil
238
20 Cleaning, Care 20
241
Cleaning Motorcycle
241
Checks and Maintenance Steps for Winter Operation
244
21 Storage
246
Preparing for Use after Storage
248
22 Troubleshooting 22
249
23 Technical Data
252
Engine
252
Engine Tightening Torques
254
Capacities
259
Engine Oil
259
Coolant
259
Fuel
259
Chassis
260
Electrical System
261
Tires
262
Fork
262
Shock Absorber
263
Chassis Tightening Torques
263
24 Declarations of Conformity 24
271
25 Substances 25
275
Auxiliary Substances 26
279
27 Standards 27
281
28 Index of Special Terms
282
29 List of Abbreviations 29
283
30 List of Symbols
284
Red Symbols
284
Yellow and Orange Symbols
284
Green and Blue Symbols
285
Index
286
