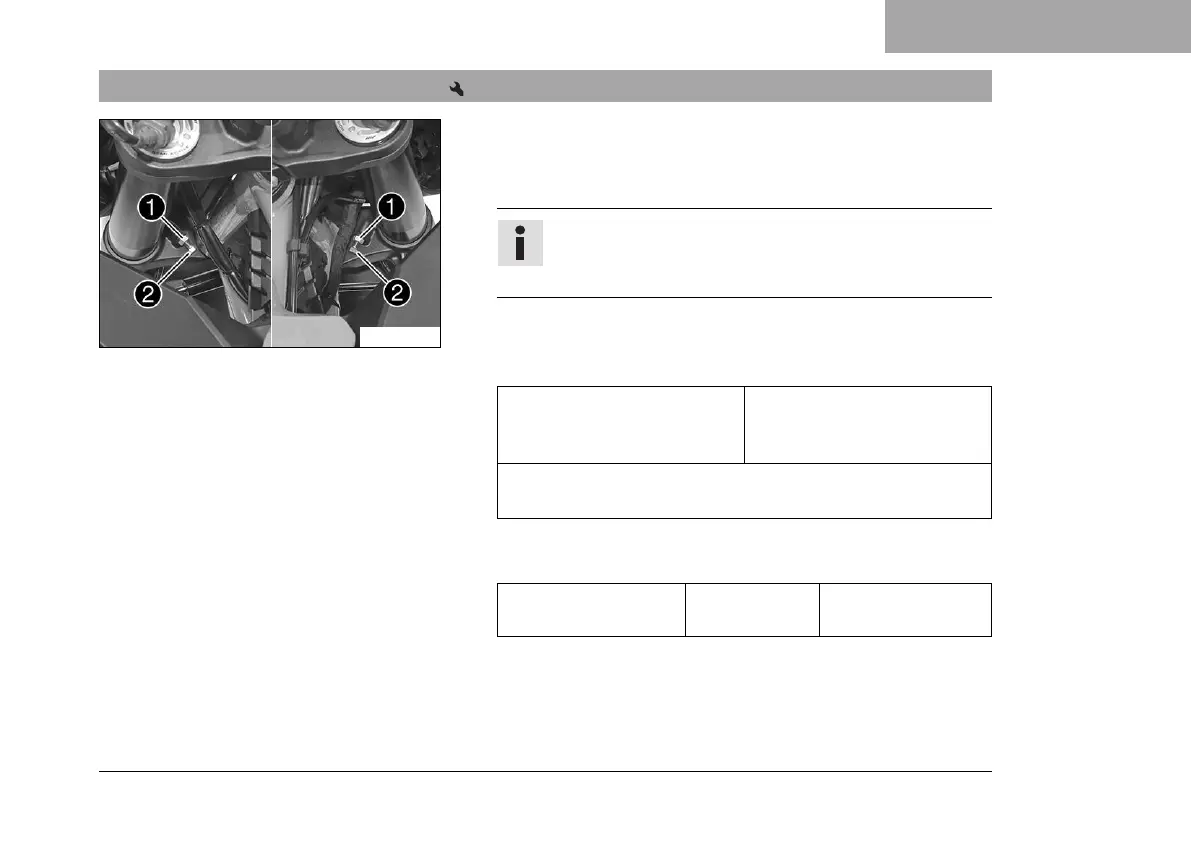

8.3 Adjusting the steering angle
F01228-10
–
Loosen nuts
1
.
– Make sure that sufficient steering angle remains after finishing
the work.
Info
Do not unscrew screws fully.
The screw must be screwed in by at least five full turns.
–
Adjust the steering angle by turning adjusting screws
2
left
and right.
Guideline
Minimum spacing between
the mirror bar and wind-
shield
9 mm (0.35 in)
Turn the adjusting screws
2
so that the left and right
steering angle settings are equal
–
Tighten nuts
1
.
Guideline
Remaining nuts,
chassis
M8 25 Nm (18.4 lbf ft)
