16 ELECTRICAL SYSTEM
210

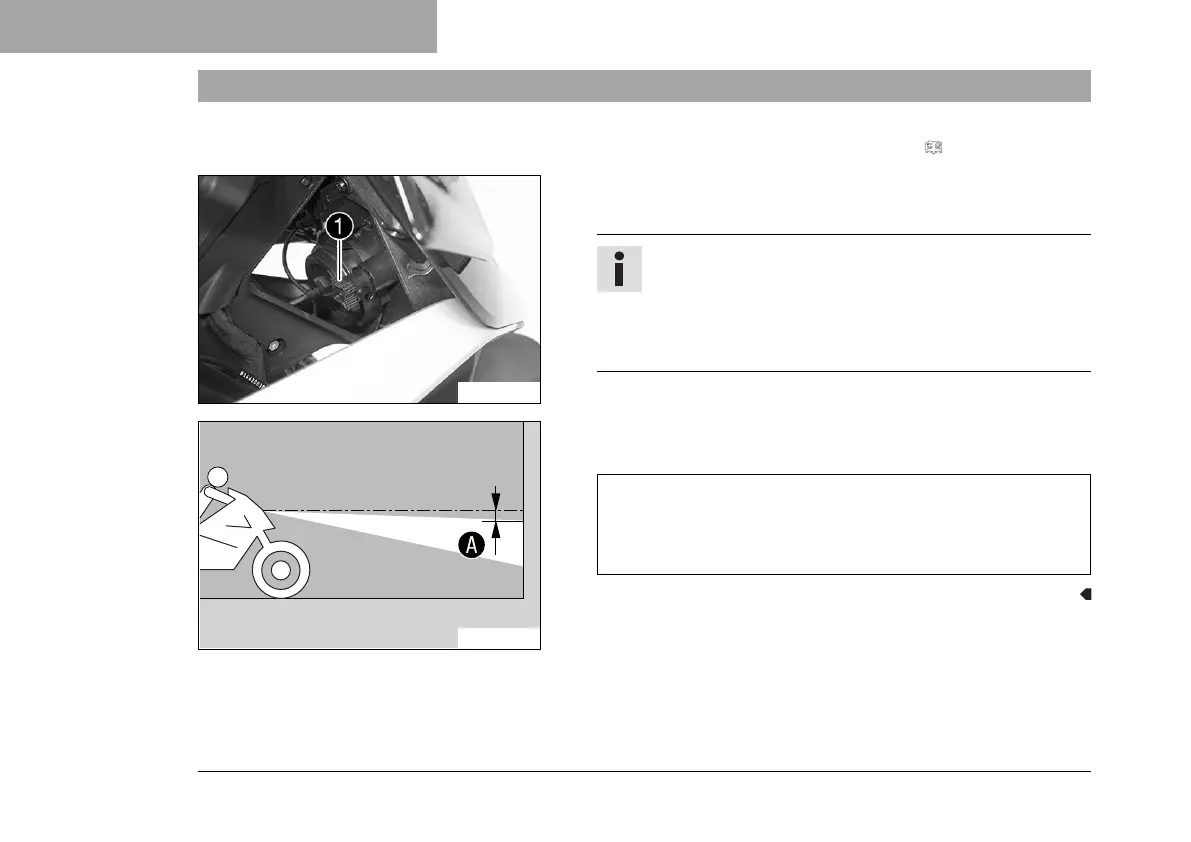

16.10 Adjusting the headlight range
Preparatory work
– Check the setting of the lighting system. ( p. 207)
S01513-10
Main work
–
Turn adjusting screw
1
to adjust the headlight range.
Info
Turn clockwise to increase the headlight range; turn
counterclockwise to reduce the headlight range.
If you have a payload, you may have to correct the
headlight range.
402424-10
–
Set the headlight to marking
A
.
Guideline
The light-dark boundary must lie exactly on lower mark
A
when the motorcycle is ready to operate with the rider
mounted along with any luggage and a passenger if applica-
ble.
