KTM 1290 Super Duke GT 2018 User Manual

COMBINATION INSTRUMENT 7
69

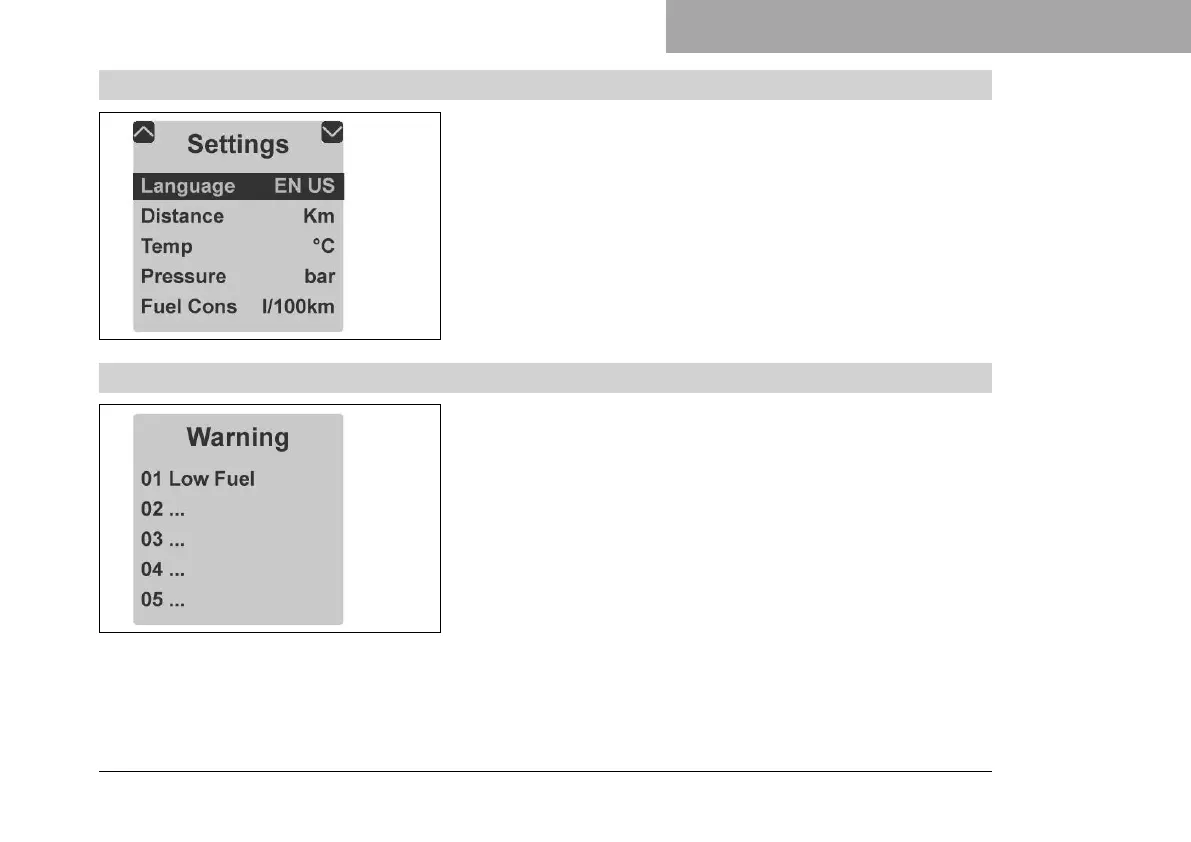

7.10.7 "Settings"
402431-10
Condition
• The vehicle is stationary.
– Press the UP or DOWN button until the "Settings" menu appears
on the matrix display. Pressing the SET button opens the
menu.
Settings for units or various values are made in the "Settings"
menu. Several functions can be enabled or disabled.
7.10.8 "Warning"
L01435-10
Condition
• Message or warning
– Press the UP or DOWN button until the "Warning" menu appears
on the matrix display. Pressing the SET button opens the
menu.
– Use the UP or DOWN button to navigate through the warnings.
In the "Warning" menu, warnings that occurred are displayed and
stored until they are no longer active.
