ERGONOMICS 8

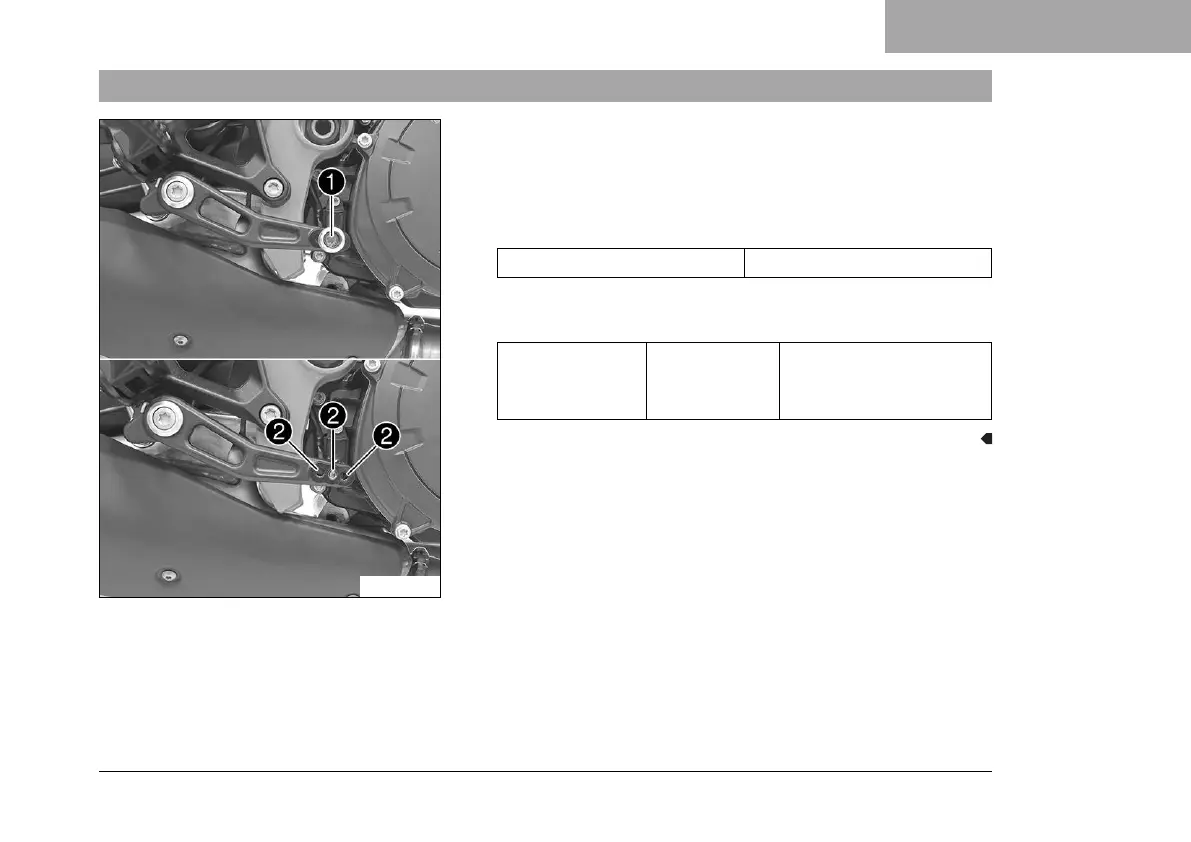

8.8 Setting the step plate of the foot brake lever

F01225-10

–

Remove screw

together with the step plate of the foot

brake lever.

– To adjust the length of the foot brake lever, position the step

plate of the foot brake lever using screw

in a drill hole

Guideline

Standard Middle hole

–

Tighten screw

Guideline

Screw, step

plate for foot

brake lever

M6 10 Nm (7.4 lbf ft)

Loctite

243™
