13 SERVICE WORK ON THE CHASSIS

156

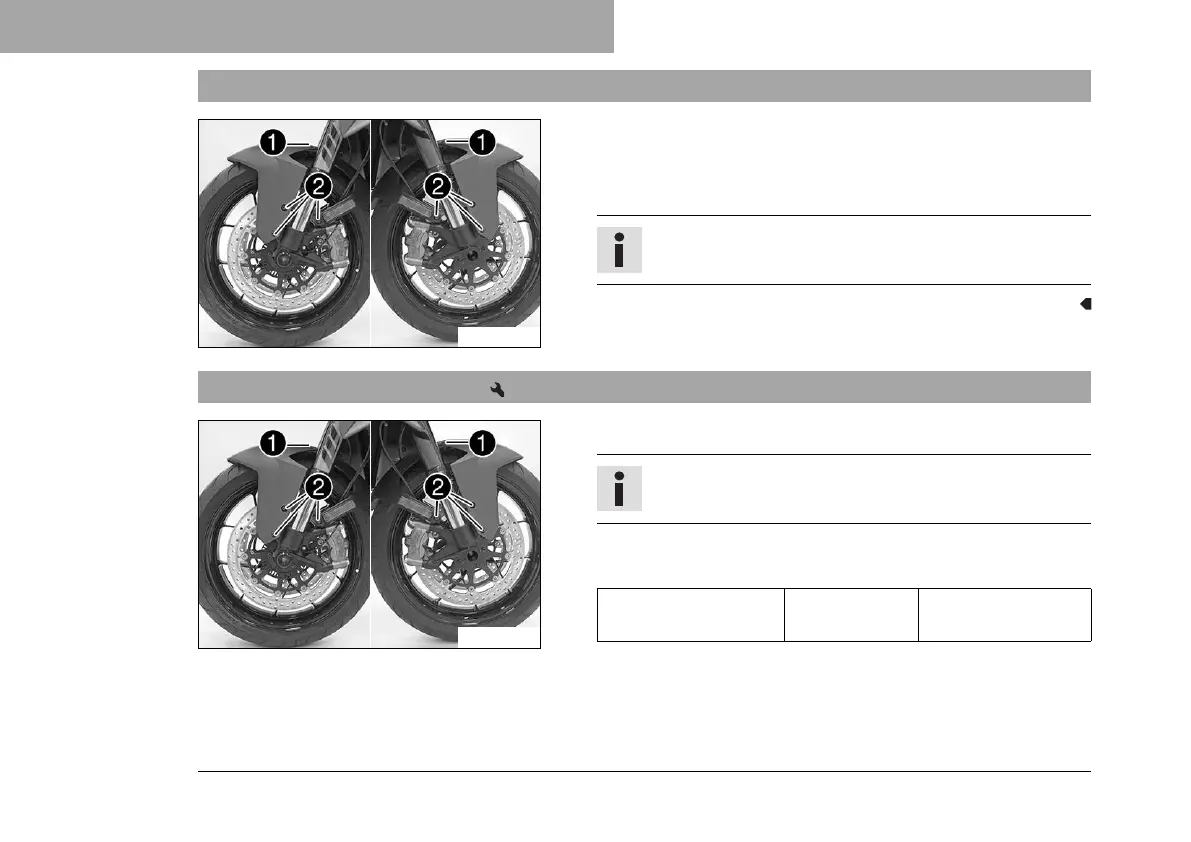

13.21 Removing front fender

S01575-10

–

Remove screws

–

Remove screws

– Take off the fender.

Info

Pay attention to the brake lines.

13.22 Installing front fender

S01575-10

– Position the fender.

Info

Pay attention to where the brake lines are placed.

–

Mount and tighten screws

Guideline

Screw, trim M5x12 3.5 Nm

(2.58 lbf ft)

–

Mount and tighten screws
