8 ERGONOMICS

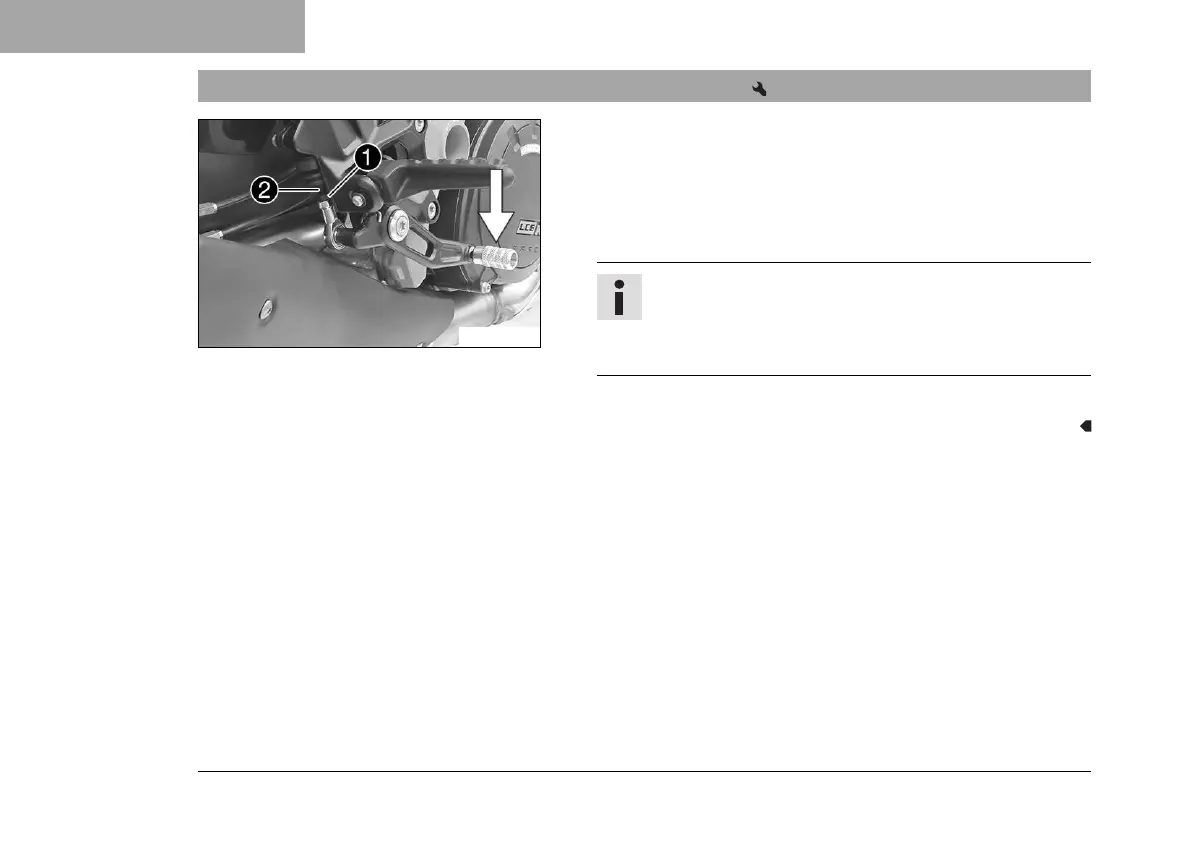

8.7 Adjusting the basic position of the foot brake lever

F01224-10

–

Loosen nut

–

Press the foot brake lever down to be able to turn push rod

more easily.

– Turn the push rod until the foot brake lever is in the desired

position.

Info

The range of adjustment is limited.

The screw must be screwed into the ball joint by at

least five turns.

–

Lock nut
